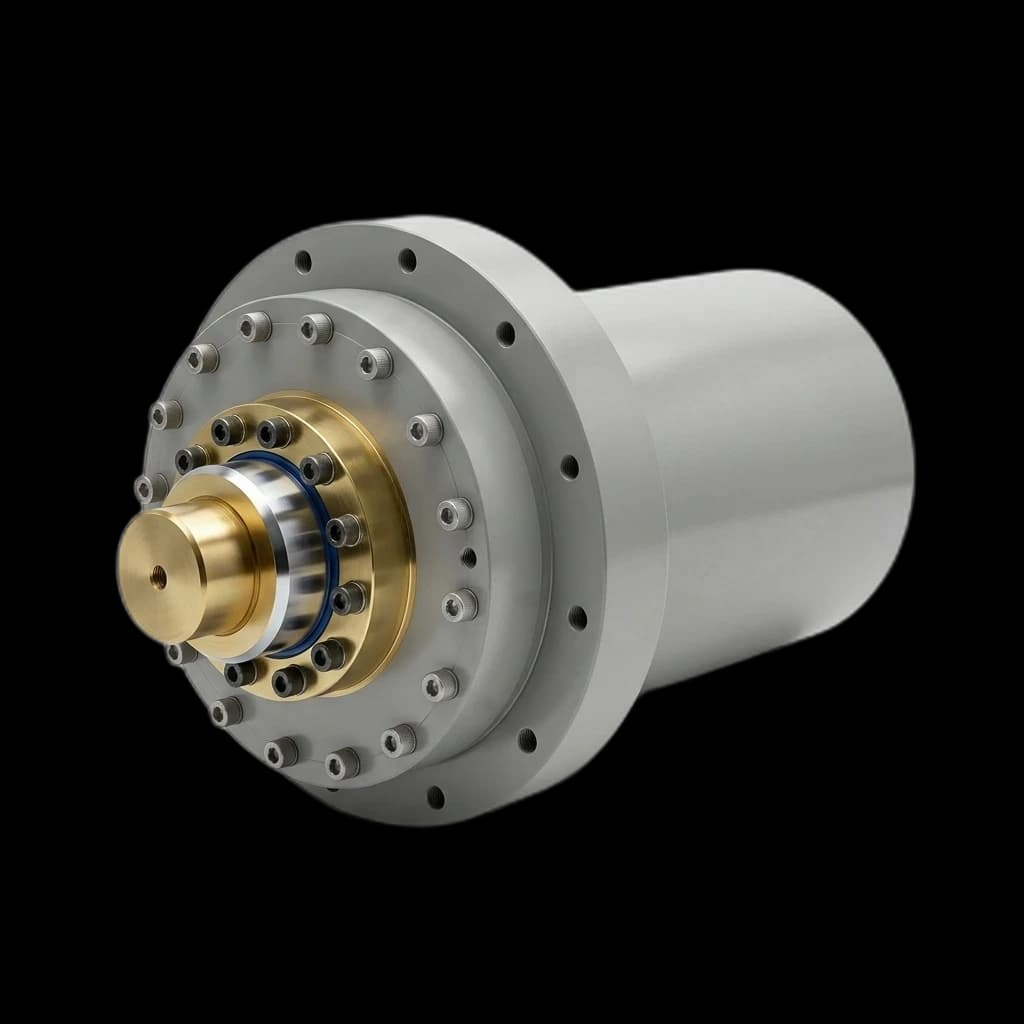

What Are Custom Hydraulic Cylinders?
Standard catalog cylinders—like Tie Rod Cylinders or standard Welded Cylinders—are designed to satisfy 80% of industrial machinery requirements. However, the top 20% of engineering applications operate in extreme parameter zones where standard catalogs simply do not apply.
When designing a massive dam spillway gate, an automated foundry ladle, or a 10,000-ton deep-drawing press, engineers require Custom Hydraulic Cylinders.
As an elite bespoke hydraulic cylinder supplier, we do not constrain you to predefined bore sizes or standard rod materials. Our custom design division starts every project with a blank CAD file. We engineer the exact barrel wall thickness, specify custom multi-stage piston sealing systems, and machine non-standard mounting configurations (such as barrel-welded trunnions or offset clevises) required to seamlessly integrate the cylinder into your machine's physical envelope.
The Engineering Design Process
Designing a bespoke hydraulic cylinder requires rigorous fluid mechanics calculations and strict adherence to mechanical physics.
Requirement Analysis
Our engineers consult directly with your machine builders. We analyze the required operational tonnage, available physical space envelope, system pressure, stroke velocity, environmental temperatures, and potential side-loading threats.
Load Calculations & Material Yield Analysis
We perform rigorous column buckling calculations and hoop stress analyses to determine the exact required wall thickness of the cylinder barrel. For extremely long strokes, we calculate the required rod diameter to prevent deflection.
3D CAD Design
Our drafting team utilizes advanced SolidWorks and AutoCAD software to construct 3D models of the custom cylinder. These models are shared directly with your engineering team for digital interference checking.
Material Selection
We specify the precise metallurgy required for the environment—from standard ST52 seamless carbon steel for heavy applications to specialized Monel or Duplex Stainless Steel for extreme corrosive resistance.
Prototype Development
For OEM clients ordering in volume, we machine a fully functional prototype for installation and physical field testing before moving to mass production.
Validation Testing
Every custom cylinder undergoes 1.5x working pressure hydrostatic testing. We document the pressure holding capabilities and provide a comprehensive test certificate.
Technical Specifications
Our custom manufacturing capabilities extend far beyond standard catalog parameters. Every specification is engineered to your exact requirements.
Custom Capability Range
| Parameter | Value |
|---|---|
| Bore Sizes | Micro-bores up to Large Bores (400mm+) |
| Stroke Length | Micro-strokes up to Extreme Long Strokes (8,000+ mm) |
| Operating Pressures | Low pressure up to Extreme High Pressure (500+ Bar / 7000+ PSI) |
| Mounting Configurations | Standard, Offset, Asymmetrical, Custom Machined Interfaces |
| Barrel Materials | ST52, EN8, SS304, SS316, Custom High-Strength Alloys |
| Rod Surface Protection | Heavy Hard Chrome, Nickel-Chrome, Ceramic Coating, Induction Hardening |
| Integrated Logic | Manifold blocks and load-holding valves welded directly to the cylinder |
Custom Cylinder Capabilities
From reverse-engineering obsolete imports to manufacturing extreme large-bore actuators, our capabilities cover the full spectrum of bespoke hydraulic engineering.
Reverse Engineering Services
We take existing imported German, Japanese, or American cylinders, completely dismantle them, measure internal tolerances, and manufacture identical, fully interchangeable replacement units. If the original manufacturer has gone out of business, we reverse-engineer the required actuator from your remaining broken parts.
- Imported cylinder replacement
- Obsolete equipment support
- Damaged cylinder redesign with flaw correction
Large Bore & Extreme Duty Cylinders
We possess the heavy machining capabilities to hone massive barrels (400mm+ bores) and machine heavy-tonnage pistons. These massive actuators are utilized in the steel industry for heavy forging presses, and in infrastructure projects for massive bridge lifting or dam-gate actuation.
- 400mm+ bore capacity
- Heavy forging press cylinders
- Infrastructure & dam-gate actuators
Special Material Cylinders
Standard ST52 steel and hard-chrome plating will quickly degrade in severe caustic or saline environments. Our custom capabilities extend to specialized metallurgy for extreme operating conditions.
- SS304 / SS316 Stainless Steel for pharmaceutical & food processing
- Marine-grade alloys with epoxy coating for offshore applications
- High-temperature alloys with Viton / Kalrez seals for foundries
Custom vs. Standard Catalog Cylinders
Understanding when to bypass standard NFPA/ISO catalogs and engineer a bespoke solution.
| Feature | Custom Cylinders | Standard Cylinders |
|---|---|---|
| Dimensional Envelope | Engineered to perfectly fit your existing machine frame | Machine must be designed around the cylinder catalog |
| Lead Time | Requires engineering and prototyping phase | Immediate availability |
| Operating Parameters | Unlimited (Extreme pressures, exotic fluids) | Constrained by catalog limits (typically 250 Bar) |
| Cost at Scale | Highly cost-effective for OEM volume runs | Cheaper for one-off emergency replacements |
Industries We Serve
Our custom engineering division serves the most demanding sectors in the Indian economy.
Steel Plants & Foundries
Large bore pressing cylinders and extreme high-temperature actuators for ladle tilting.
Marine & Offshore
Corrosion-resistant, heavy-duty lifting cylinders for winches, ship-cranes, and port material handling.
Infrastructure Projects
Massive bespoke cylinders for dam spillway radial gates and heavy civil engineering projects.
Special Purpose Machinery
Non-standard actuators with complex logic-valve blocks welded directly to the cylinder barrel for smart factory automation.
When Do You Need a Custom Hydraulic Cylinder?
ANon-Standard Fluid Compatibility
If your system runs on fire-resistant fluids (like Water-Glycol or Phosphate Esters) or operates in extreme ambient temperatures, standard Polyurethane seals will disintegrate. We engineer custom cylinders utilizing specific FKM (Viton) or PTFE seal stacks to handle exotic media.
BAtypical Mounting and Space Constraints
When upgrading a legacy machine or designing compact mobile equipment, a standard clevis or flange may interfere with the chassis. We can machine offset trunnions, asymmetrical flanges, or entirely unique mounting interfaces directly into the barrel.
CIntegrated Logic and Valving

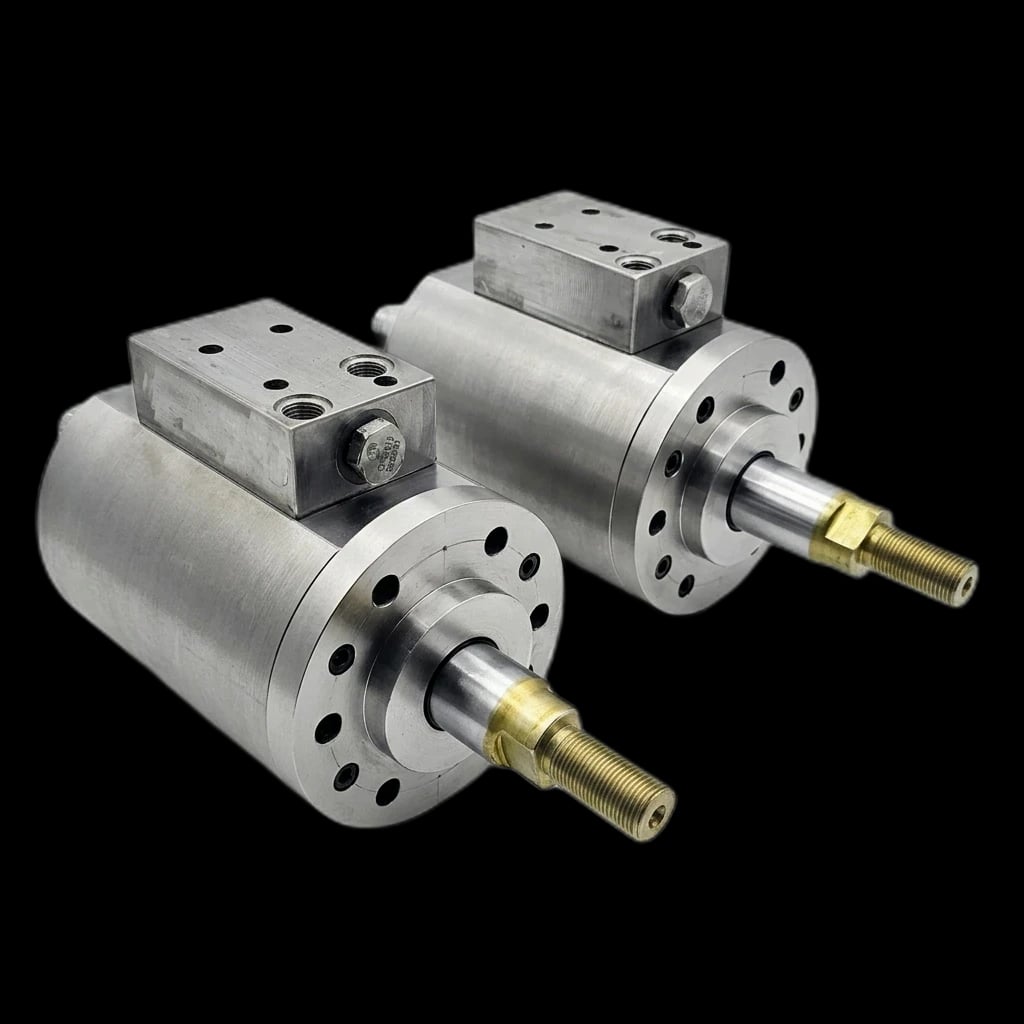

To minimize leak points and hose failures, we can engineer custom manifold blocks directly welded to the cylinder body. This allows for integrated pilot-operated check valves (load holding) or counterbalance valves immediately at the actuator.
Manufacturing & Quality Process
Every custom cylinder is delivered with a comprehensive Engineering Dossier, including 3D CAD files, material test certificates (MTC), seal compound specs, and hydrostatic pressure testing reports.
Application Engineering & CAD
Every bespoke order begins in our design bureau. We map the exact load dynamics and generate 3D SolidWorks models, ensuring absolute geometric compatibility before a single cut is made.
Bespoke Material Selection
Depending on the FEA (Finite Element Analysis) results, we source application-specific metallurgy—such as high-tensile Duplex stainless steel or specialized Monel alloys for corrosive environments.
Prototype Machining
For OEM volume runs, we manufacture and deliver a fully functional prototype. This allows your team to perform physical field testing and interference checking before committing to mass production.
Application-Specific Load Testing
We do not just perform standard hydrostatic tests. We simulate the unique pressure spikes and holding requirements of your specific machine, certifying the cylinder with a comprehensive Engineering Dossier.
Need to Reverse-Engineer a Damaged Imported Cylinder?
Our engineering team can dismantle, measure, and replicate any cylinder — even without documentation or part numbers.
Reverse Engineering a 600-Ton Forging Press Cylinder
Heavy Metal Forging Plant — GIDC, Rajkot
The Challenge
The Engineering
The Outcome
