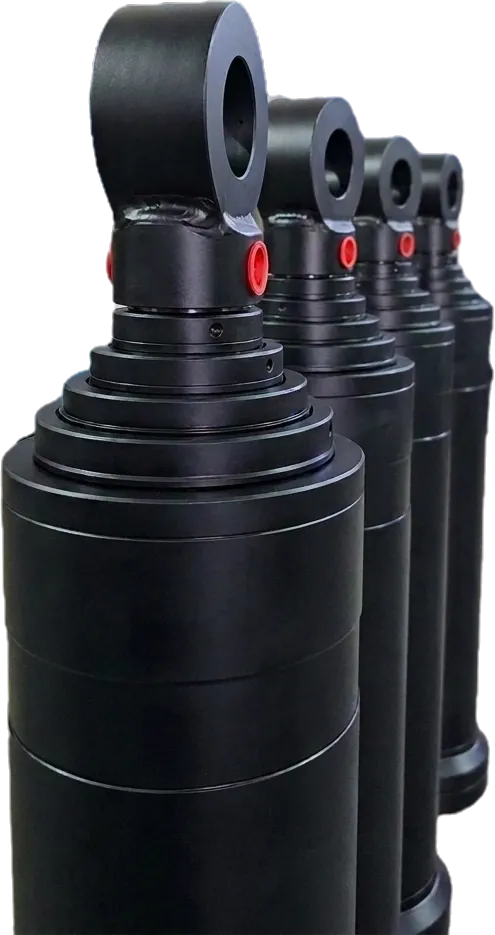

Telescopic Hydraulic Cylinder Manufacturer
Engineered for massive lifting heights from a minimal footprint. Honeywell Hydraulics is a premier custom telescopic hydraulic cylinder manufacturer in Gujarat, supplying highly robust, multi-stage cylinders exclusively for tipper bodies, dump trucks, and mobile lifting equipment.
What Are Telescopic Hydraulic Cylinders?
When a machine requires a massive lifting stroke but has virtually no physical space to house a fully retracted cylinder, engineers turn to Telescopic Hydraulic Cylinders.
Unlike standard Tie Rod Cylinders or Welded Cylinders which consist of a single rod and barrel, a telescopic cylinder features a series of nested, tubular steel stages (often referred to as sleeves or sleeves-and-plunger). These nested tubes slide outward from each other, operating much like a collapsible pirate's telescope.
As a leading multi-stage hydraulic cylinder supplier, we design these complex actuators specifically for mobile equipment. A telescopic cylinder can provide an extended stroke that is significantly longer than its collapsed length—sometimes extending up to six times its closed dimension. This makes them the undisputed standard for dump trucks, refuse collection vehicles, and heavy-duty tipper bodies where space under the chassis is severely limited.
How Multi-Stage Cylinders Work
The internal fluid dynamics of a telescopic cylinder are vastly more complex than a standard single-rod actuator, offering unique engineering advantages.
Sequential Extension
Fluid pressure first acts on the largest diameter sleeve. Once fully extended, pressure forces the next smaller sleeve to extend. This continues until the final plunger is fully extended.
Gravity Retraction
In single-acting tipper applications, the cylinder relies on gravity. Opening the directional valve allows the immense weight of the dump bed to force fluid out and retract the sleeves.
Stroke Multiplication
Achieves massive extended heights. A 5-stage cylinder with a closed length of just 1 meter can extend to provide a massive 4.5-meter lifting stroke.
Extreme Space Saving
A telescopic cylinder collapses into a fraction of its total stroke length (20% to 40%), allowing it to fit vertically under short truck chassis.
Optimal Lifting Angles
Placing a compact cylinder directly at the front of a dump body (trunnion mount) allows the tipper to achieve maximum mechanical leverage and tipping stability.
Specialized Load Handling
The sequential extension exerts maximum force at the beginning of the stroke (when the dump bed is heaviest) and faster speed at the end of the stroke.
Technical Specifications
Engineered to support immense tipping loads with precise stage sequencing and robust column strength.
Standard Capability Range
| Parameter | Value |
|---|---|
| Number of Stages | 2-Stage to 6-Stage Configurations |
| Maximum Stroke Length | Up to 8,000+ mm (Custom long-stroke available) |
| Maximum Operating Pressure | Up to 250 Bar (3600 PSI) |
| Action Type | Single-Acting (Gravity Return), Double-Acting (Powered Return) |
| Mounting Options | Outer Trunnion (Front End), Cross-Tube (Underbody), Clevis |
| Stage Material | ST52 / EN8 Seamless Honed Tube (OD and ID) |
| Surface Protection | Hard Chrome Plated (All Stages) |
| Sealing System | High-pressure V-packing, heavy-duty rod wipers, bronze-filled guide rings |
Telescopic vs. Standard Cylinders
Choosing between a multi-stage cylinder and a standard actuator dictates the entire chassis design of your mobile equipment.
| Engineering Feature | Telescopic Hydraulic Cylinders | Standard Cylinders (Welded/Tie Rod) |
|---|---|---|
| Piston Rod Design | Multiple nested tubular sleeves | Single solid or hollow rod |
| Collapsed Length | Highly compact (20% to 40% of extended stroke) | Bulky (Always longer than the extended stroke) |
| Force Profile | Force decreases as each smaller stage extends | Constant force throughout the entire stroke |
| Speed Profile | Speed increases as each smaller stage extends | Constant speed throughout the entire stroke |
| Primary Action | Usually Single-Acting (Gravity return) | Usually Double-Acting (Powered return) |
| Primary Risk | Susceptible to side-loading and column buckling | Highly rigid against side-loads |
Industries Served
Our custom telescopic cylinders are the backbone of the heavy transportation and mobile infrastructure sectors.
Transportation & Logistics
Supplying high-volume, multi-stage cylinders for heavy commercial tipper trucks and bulk transport trailers.
Construction
Delivering robust lifting cylinders for massive earth-moving dump trucks and off-highway haulers operating in harsh environments.
Waste Management
Engineering compact, double-acting telescopic cylinders for refuse collection vehicles and garbage packer blades.
Municipal Equipment
Manufacturing highly reliable actuators for municipal road sweepers, snowplows, and specialized utility trucks.
How to Choose the Right Telescopic Hydraulic Cylinder
AStroke to Retracted Ratio
Telescopic cylinders are chosen when space is confined. Ensure the collapsed (retracted) length fits your chassis, while the total extended length provides the full tipping or lift angle required.
BSingle-Acting vs. Double-Acting
Most dump trucks use Single-Acting (gravity retract). If your application requires powered pull-down (e.g., horizontal compactors), you must specify a Double-Acting Telescopic cylinder, which has complex internal porting.
CColumn Load (Buckling Limits)
Multi-stage cylinders act as long, slender columns when fully extended. We calculate the maximum off-center side load to determine the necessary overlap between stages to prevent bending.
Manufacturing & Quality Process
Every multi-stage cylinder is delivered with complete stroke-multiplication reports and certified column-load limits, ensuring the actuator meets all safety factors required for heavy mobile equipment.
Concentric Tube Selection
Telescopic stages require exceptionally tight tolerances. We source specialized DOM (Drawn Over Mandrel) tubing to ensure absolute wall thickness consistency, preventing asymmetric bending.
Multi-Stage Precision Honing
Every individual tubular stage is CNC-machined, skived, and roller-burnished on both the ID (inside diameter) and OD (outside diameter) to guarantee smooth sequential staging without galling.
Complex Seal Integration
Because each stage seals against the inner diameter of the previous stage, we install heavy-duty glass-filled nylon wear rings and highly specialized multi-lip V-packing seals to handle high-pressure sequencing.
Vertical Staging Verification
100% of our telescopic cylinders are hydrostatically tested vertically. This ensures that each stage extends and retracts smoothly in the correct sequence, and that the mechanical stop-rings can absorb full-pressure impacts.
The Honeywell Guarantee
Our heavy-duty telescopic cylinders are backed by a strict Defect Warranty. Should your mobile equipment experience seal failure due to harsh environmental debris, our Cylinder Repair division can completely rebuild the unit.
Custom 5-Stage Mining Tipper Cylinder
Heavy Mining Tipper OEM — Metoda GIDC, Rajkot
The Challenge
The Solution
The Outcome
Custom Hydraulic Cylinders
Bespoke actuators engineered for extreme environments and unique mounting requirements.
Tie Rod Hydraulic Cylinders
Standard NFPA tie rod cylinders for heavy-duty industrial applications.
Double Acting Hydraulic Cylinders
Precision engineered for powered stroke in both directions.
Frequently Asked Questions
Find answers to common questions about our custom hydraulic cylinder manufacturing process and capabilities.
Still have questions?
Our engineering team is ready to discuss your specific hydraulic requirements.
Need a multi-stage telescopic cylinder for your mobile equipment?
From 2-stage to 6-stage configurations for dump trucks, tippers, and heavy lifting equipment. Engineered for maximum stroke from minimum retracted length.
