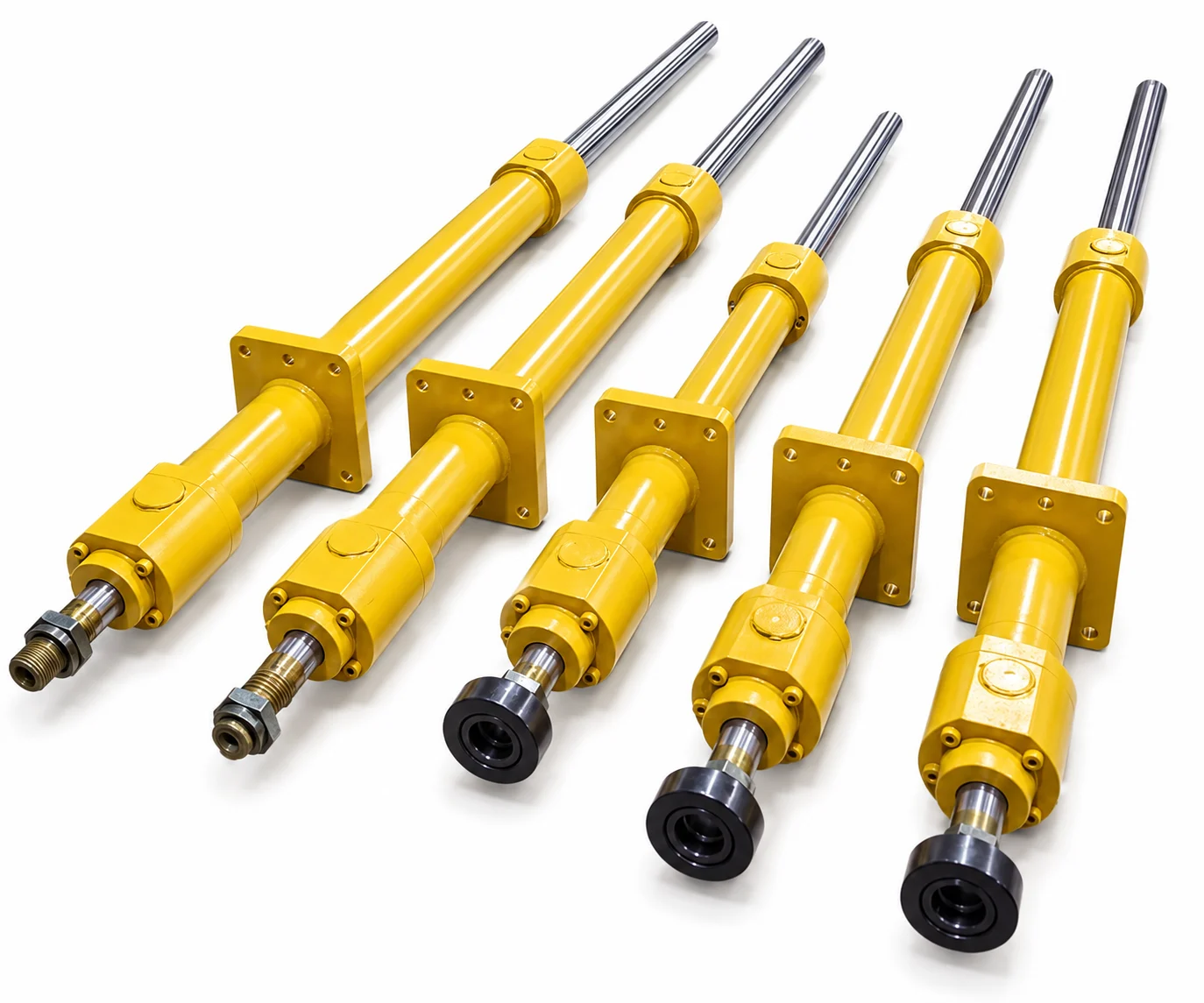

Double Acting Hydraulic Cylinder Manufacturer
Full bi-directional hydraulic force for precision industrial applications. Manufactured in-house at our Ahmedabad facility with bore sizes from 40mm to 500mm, stroke lengths up to 6,000mm, and working pressures up to 450 bar.
What Is a Double Acting Hydraulic Cylinder?
A double acting hydraulic cylinder generates force in both the extend and retract strokes, making it the most versatile and widely used cylinder type in industrial applications. Unlike single acting cylinders that rely on gravity or springs for return, double acting cylinders provide full hydraulic control in both directions — critical for press machines, injection moulding, goods lifts, and material handling systems.
The cylinder operates through two ports, typically located at the bottom and top of the barrel. Hydraulic fluid is pumped into the bottom port to extend the piston, and through the top port to push the piston back. This bi-directional fluid power provides faster, more predictable retraction compared to spring-return designs, making double acting cylinders the better choice for projects needing repeatable accuracy and controlled motion profiles.
At Honeywell Hydraulics, we manufacture double acting hydraulic cylinders in custom bore sizes from 40mm to 500mm and stroke lengths up to 6,000mm at our Ahmedabad manufacturing facility. Every cylinder is CNC-machined from solid ST 52.3 seamless steel, fitted with imported Hallite / Parker seals, and pressure-tested at 1.5× working pressure before dispatch.
Key Features
Every double acting cylinder we manufacture is engineered for durability, precision, and zero-leakage performance.
Bi-Directional Force Generation
Generates full hydraulic force in both extend and retract strokes, providing complete motion control for precision applications where gravity-return is insufficient.
High Working Pressure — Up to 450 Bar
Engineered to operate at working pressures up to 450 bar, suitable for heavy-duty pressing, forging, and high-tonnage industrial applications.
Custom Bore Sizes — 40mm to 500mm
Manufactured in bore sizes from 40mm for compact machinery up to 500mm for heavy industrial presses. Every bore is CNC-honed to H8/H9 tolerance.
Hard Chrome Plated Piston Rods
Piston rods machined from EN 8, EN 9, EN 19, or EN 31 grade steel with precision f7 tolerance and heavy hard chrome plating for corrosion resistance and longevity.
Imported Hallite / Parker Seals
Fitted with premium imported Hallite and Parker sealing systems designed for zero internal leakage, extended service life, and reliable operation in harsh environments.
100% Pressure Tested Before Dispatch
Every cylinder undergoes rigorous hydrostatic testing at 1.5× working pressure. A detailed pressure test certificate is provided with each unit shipped.
Technical Specifications
Our double acting cylinders are manufactured with precision-grade materials and machined to exacting tolerances. Every specification listed below can be customized to your exact requirements.
Double Acting Cylinder Specifications
| Parameter | Value |
|---|---|
| Bore Size Range | 40 mm – 500 mm |
| Rod Diameter Range | 16 mm – 350 mm |
| Stroke Length | Up to 6,000 mm |
| Working Pressure | Up to 450 Bar |
| Honed Tube Material | ST 52.3 (Tolerance H8, H9) |
| Piston Rod Material | EN 8 / EN 9 / EN 19 / EN 31 (Tolerance f7) |
| Piston & Gland Material | EN 8 |
| Rod Surface Finish | Heavy Hard Chrome Plated |
| Seal Type | Hallite / Parker (Imported) |
| Mounting Options | Flange, Clevis, Trunnion, Foot |
| Ports | Two ports — bottom (extend) and top (retract) |
| Testing | Hydrostatic testing at 1.5× working pressure |
Double Acting vs. Single Acting Cylinders
Understanding when to specify a double acting cylinder over a single acting alternative.
| Engineering Feature | Double Acting | Single Acting |
|---|---|---|
| Power Stroke | Bidirectional (Push & Pull) | Unidirectional (Push only) |
| Retraction Method | Hydraulic Pressure (Fast, controlled) | Gravity, Load Weight, or Spring |
| Hydraulic Ports | Two (Top and Bottom) | One (Bottom only) |
| Motion Control | High (Precise positioning in both directions) | Low (Relies on external forces to return) |
| System Complexity | Requires directional control valves | Simpler valving and fewer hoses |
Industries We Serve
Our double acting hydraulic cylinders power critical machinery across India's most demanding industrial sectors.
Automotive & Auto Component Manufacturing
Double acting cylinders for stamping presses, body panel forming, and automated assembly lines in automotive plants across Gujarat.
Injection Moulding & Plastics
Clamping cylinders and injection unit actuators for plastic moulding machines requiring precise, controllable bi-directional force.
Construction & Infrastructure
Heavy-duty double acting cylinders for concrete batching plants, pile driving rigs, and bridge construction hydraulic systems.
Steel & Metal Fabrication
Forging press cylinders, metal shearing machines, and plate bending equipment in steel plants and heavy fabrication workshops.
Available Mounting Configurations
AFlange Mounting
Bolt-on flange mounting for rigid, permanent installations. Ideal when the cylinder must remain perfectly aligned with the machine frame. (Used in press machines, injection moulding machines)
BClevis Mounting
Pin-and-clevis mounting allows angular movement during stroke. Used where the load path changes angle during cylinder extension. (Used in dump trucks, tipping trailers)
CTrunnion Mounting
Mid-barrel trunnion pins allow the entire cylinder to pivot. Best for applications requiring large angular displacement during the stroke cycle. (Used in mobile cranes, excavator arms)
DFoot Mounting
Bottom foot brackets for simple horizontal or vertical installations. Cost-effective solution where angular movement is not required. (Used in conveyor systems, goods lifts)
Manufacturing & Quality Process
Every double acting cylinder is manufactured in-house at our Ahmedabad GIDC facility. Zero outsourcing of critical machining operations ensures complete quality control.
CNC Honing & Machining
ST 52.3 seamless steel tubes are CNC-honed in-house to H8/H9 tolerance. Piston rods are precision-ground and hard chrome plated from EN 8/EN 9/EN 19/EN 31 grade steel.
Imported Sealing Systems
We exclusively use Hallite and Parker imported seals. These premium sealing compounds ensure zero internal leakage and are rated for extended service life in harsh industrial environments.
Pressure Validation
100% of our double acting cylinders undergo rigorous hydrostatic testing at 1.5× working pressure. A detailed test certificate is provided with every cylinder dispatched.
Why Choose Honeywell for Double Acting Cylinders?
In-house CNC honing, machining, and assembly — zero outsourcing of critical operations. ISO 9001:2015 certified manufacturing facility.
24 Double Acting Cylinders for a 500-Ton Press Line
Automotive Component Manufacturer — GIDC, Ahmedabad
The Challenge
The Solution
The Outcome
Custom Hydraulic Cylinders
Bespoke actuators engineered for extreme environments and unique mounting requirements.
Tie Rod Hydraulic Cylinders
Standard NFPA tie rod cylinders for heavy-duty industrial applications.
Telescopic Hydraulic Cylinders
Multi-stage cylinders providing exceptional stroke length from a compact retracted footprint.
Frequently Asked Questions
Find answers to common questions about our custom hydraulic cylinder manufacturing process and capabilities.
Still have questions?
Our engineering team is ready to discuss your specific hydraulic requirements.
Need a double acting hydraulic cylinder engineered to your exact specifications?
From standard bore sizes to fully custom configurations — get a precision-engineered double acting cylinder backed by 100% hydrostatic pressure testing and ISO 9001:2015 certified manufacturing.
