Manufacturing & Facility
Honeywell Hydraulics Manufacturing Facility
State-of-the-art hydraulic manufacturing plant located in Kathwada GIDC, Ahmedabad, housing precision machining, fabrication, and testing infrastructure.
Hydraulic Manufacturing & Product Gallery
Verified visual portfolio of our custom hydraulic cylinders, continuous-duty power packs, CNC-machined manifold blocks, and fabrication bays at Kathwada GIDC, Ahmedabad.
Manufacturing & Facility
CNC Machining Center for Cylinder Components
High-precision multi-axis CNC machining center dedicated to milling cylinder heads, base caps, and manifold ports to micron-level tolerances.
Manufacturing & Facility

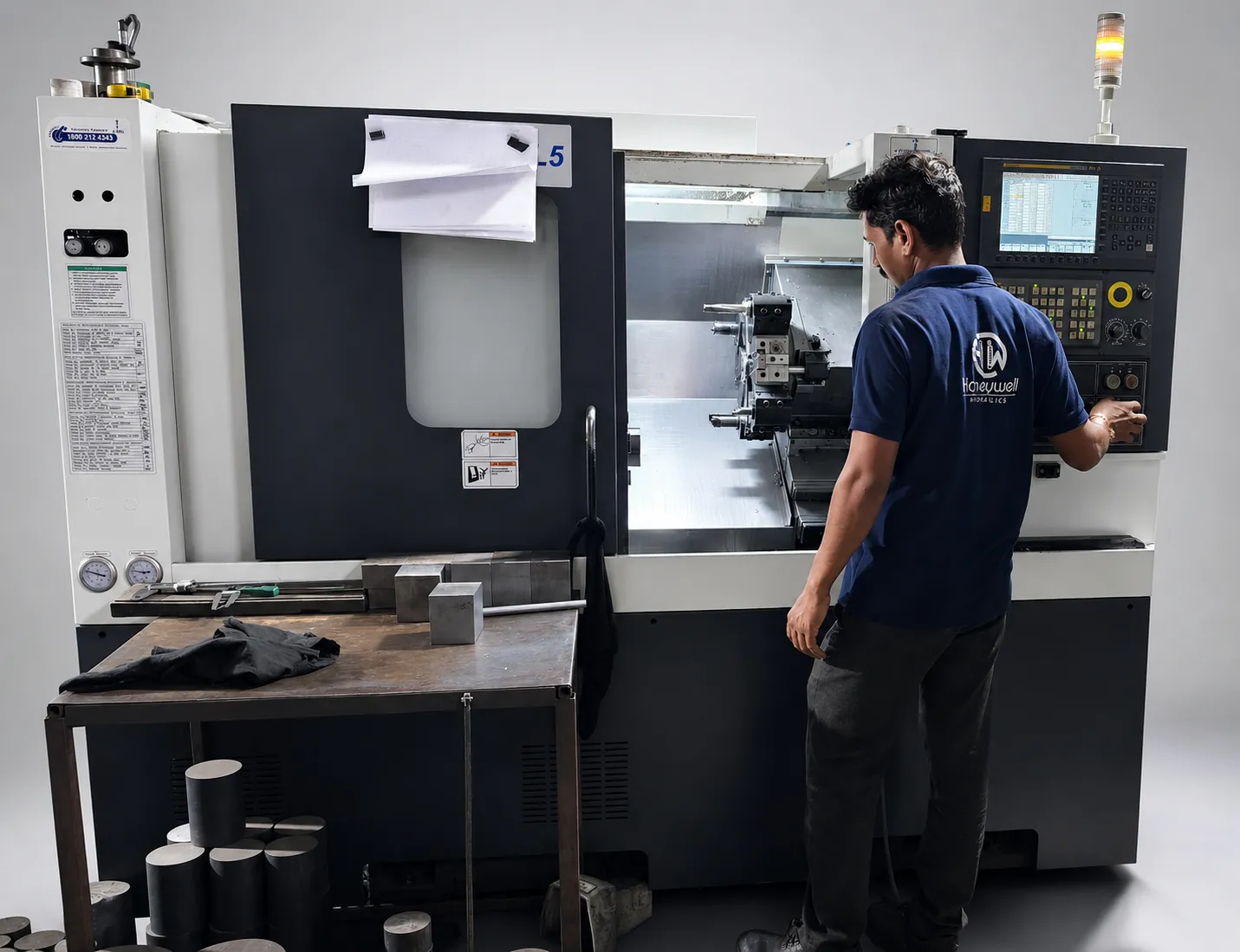

Precision CNC Turning Lathe Operation
Heavy-duty CNC turning lathes machining hard-chrome plated piston rods, cylinder barrels, and gland bushings with f7/f8 diameter tolerances.
Manufacturing & Facility

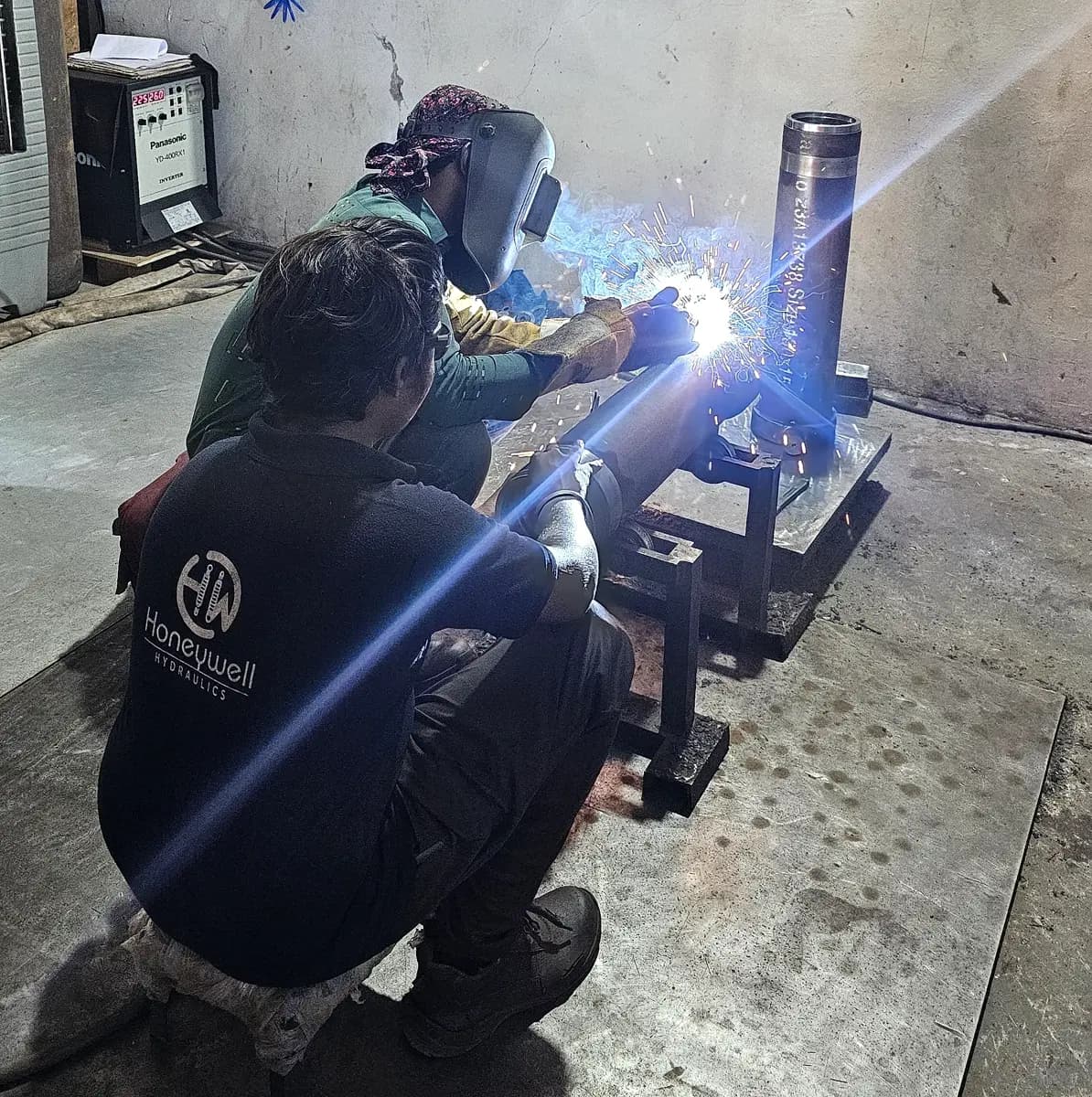

Hydraulic Cylinder Welding & Heavy Fabrication
Certified welding bay with semi-automatic submerged arc and TIG welding for heavy-duty cylinder barrel caps, flanges, and high-pressure ports.
Manufacturing & Facility

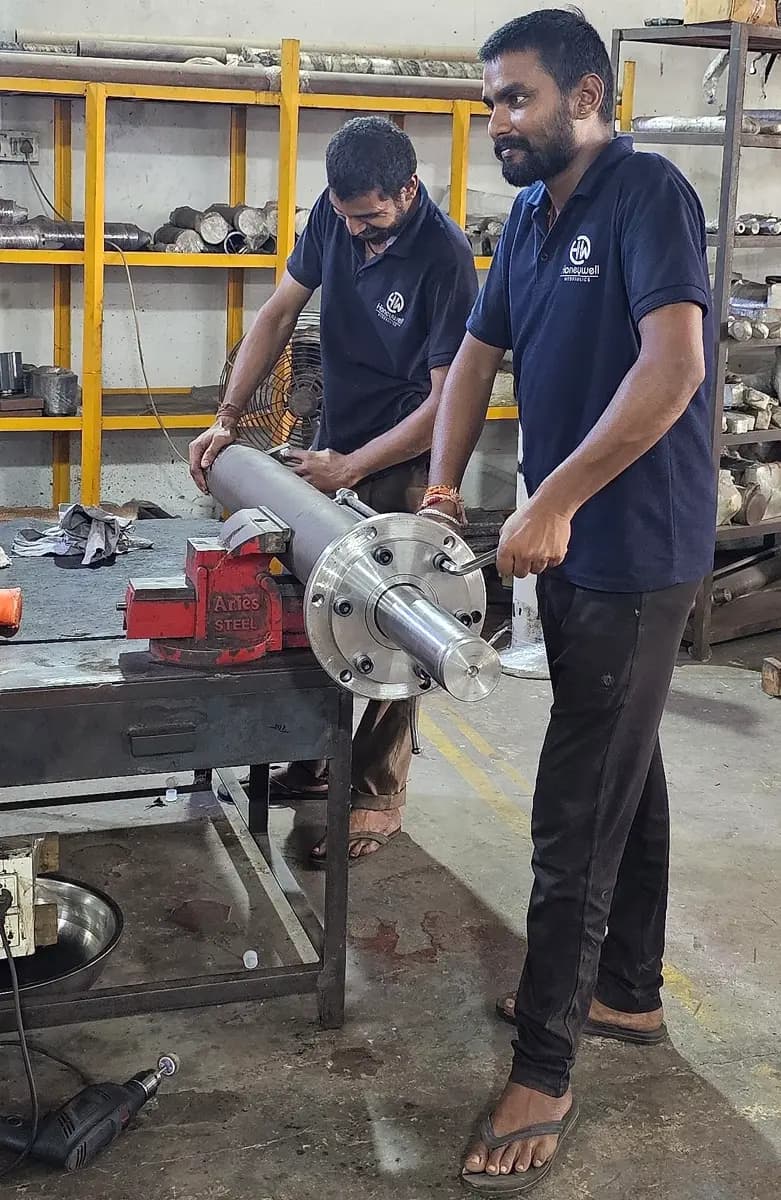

Clean Cylinder & Power Pack Assembly Area
Contamination-controlled assembly floor where multi-lip polyurethane seals, wear rings, honed barrels, and chrome rods are assembled by skilled technicians.
Manufacturing & Facility

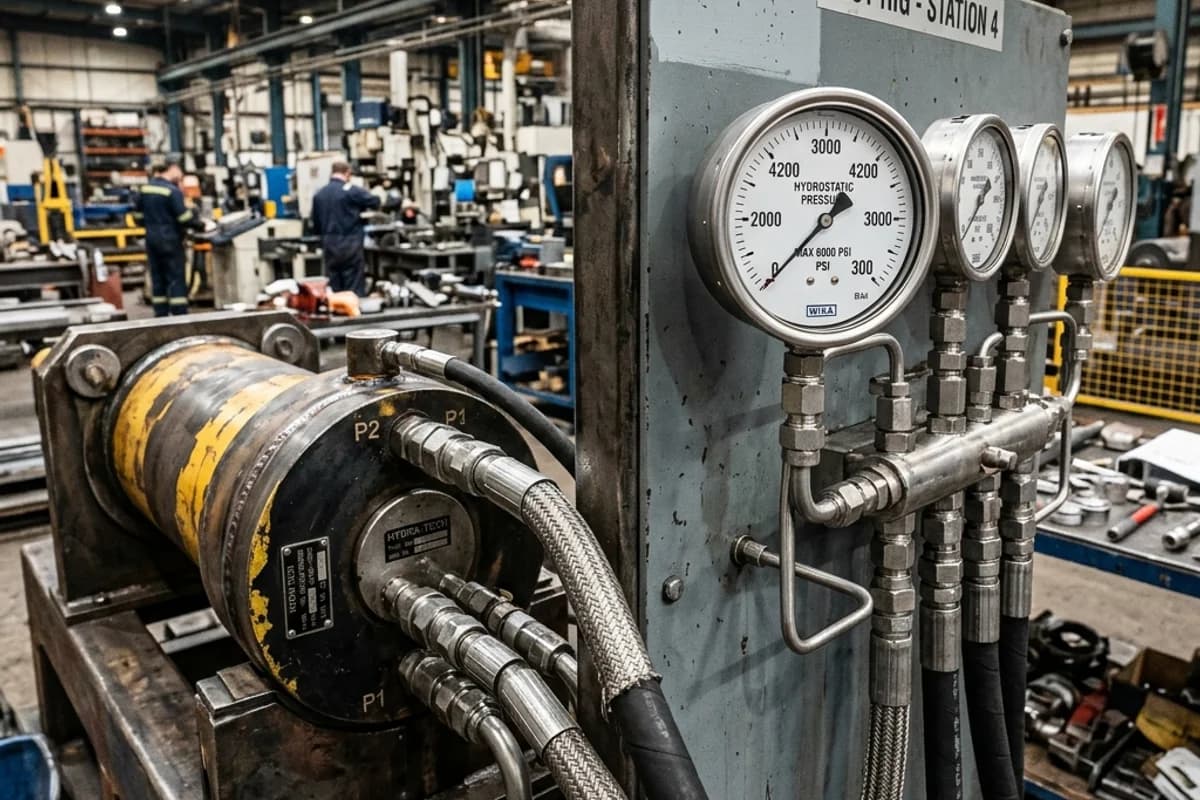

Hydrostatic Pressure Testing Rig (Up to 400 Bar)
100% full-stroke hydrostatic testing bench equipped with digital pressure transducers to verify zero internal bypass and zero external leakage under proof load.
Manufacturing & Facility
Engineering & Manufacturing Leadership Team
Experienced hydraulic design engineers, CAD specialists, CNC programmers, and quality assurance personnel driving Honeywell Hydraulics.
Hydraulic Cylinders

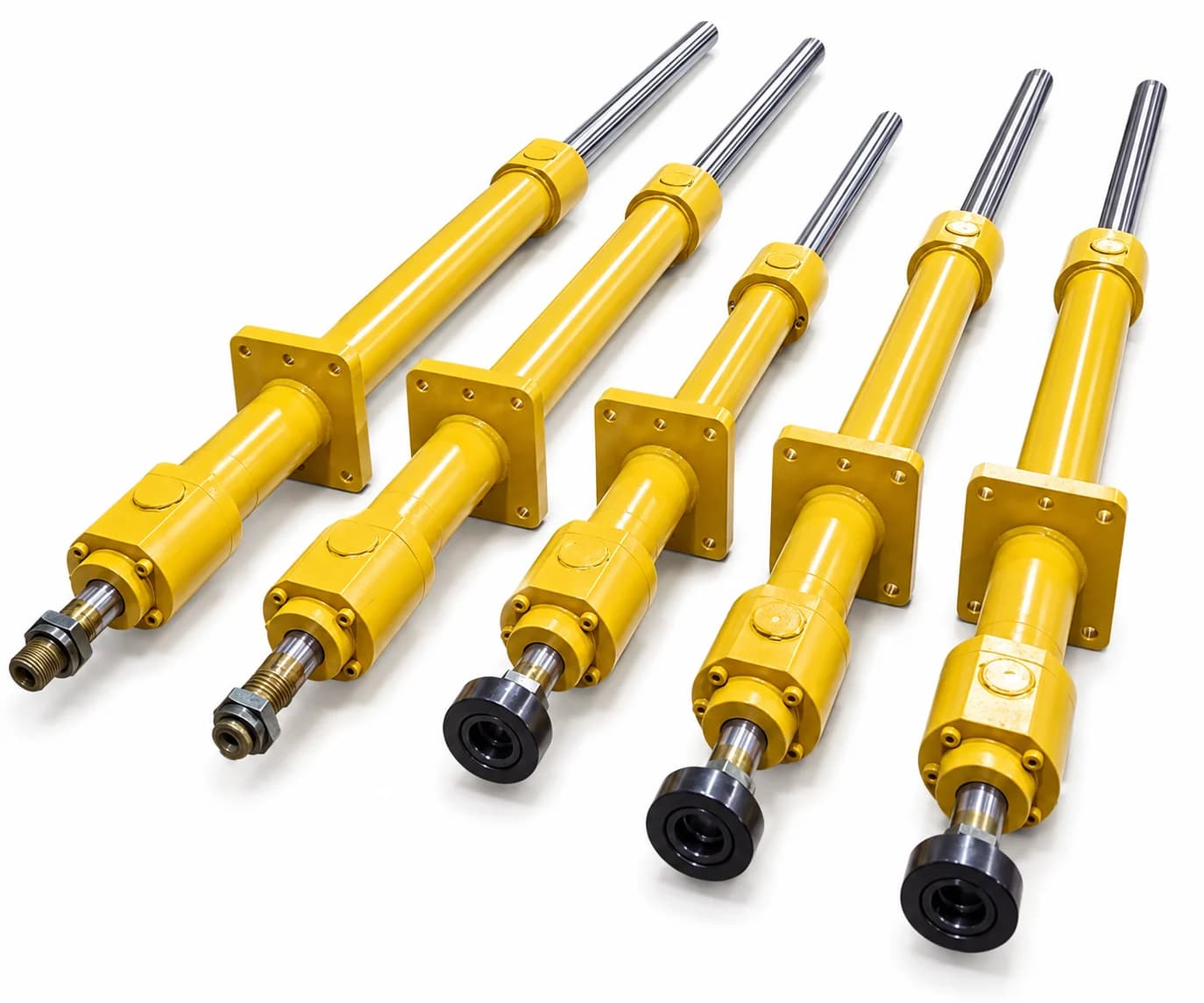

Double Acting Hydraulic Cylinders
Heavy-duty double acting cylinders delivering bidirectional hydraulic force for steel mills, presses, material handling, and mining applications.
Hydraulic Cylinders

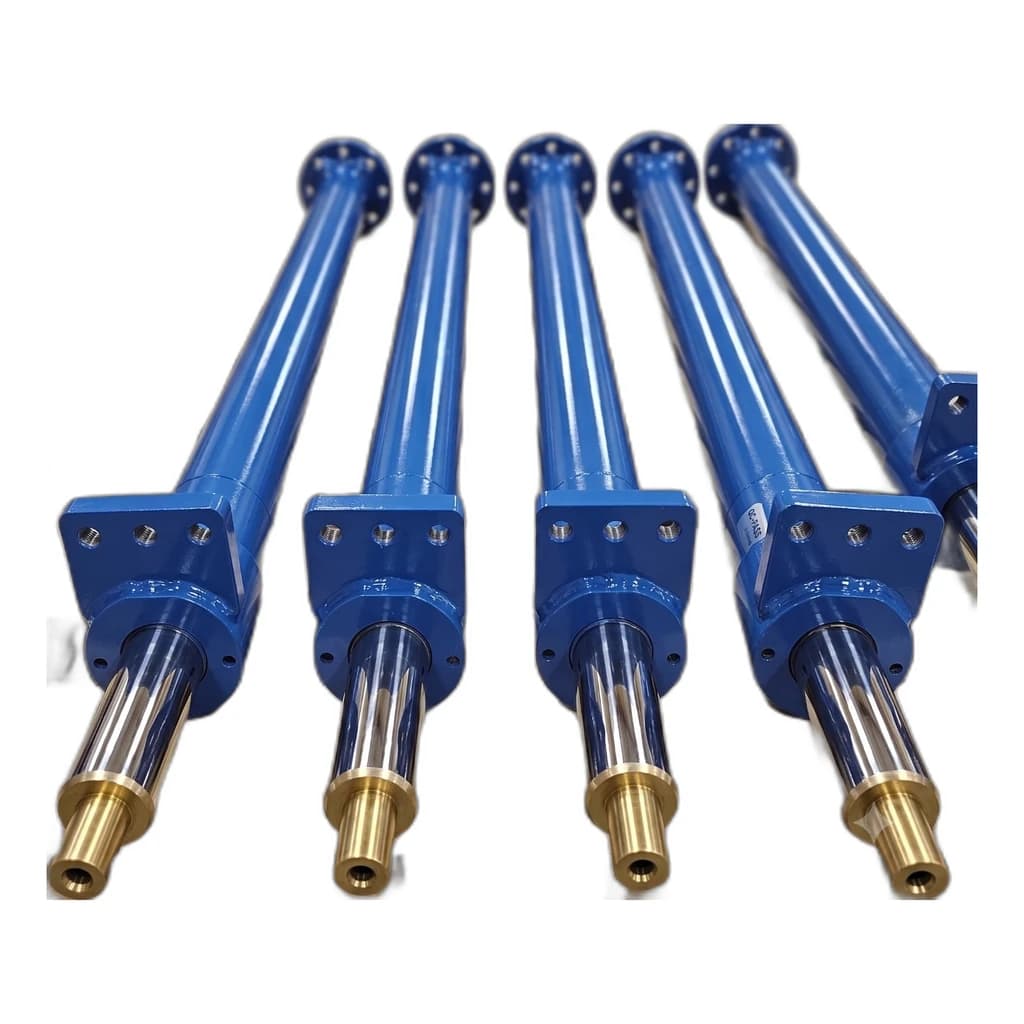

Single Acting Hydraulic Cylinders
High-thrust single acting ram and plunger cylinders designed for gravity or spring-return applications including hydraulic presses and lifting tables.
Hydraulic Cylinders

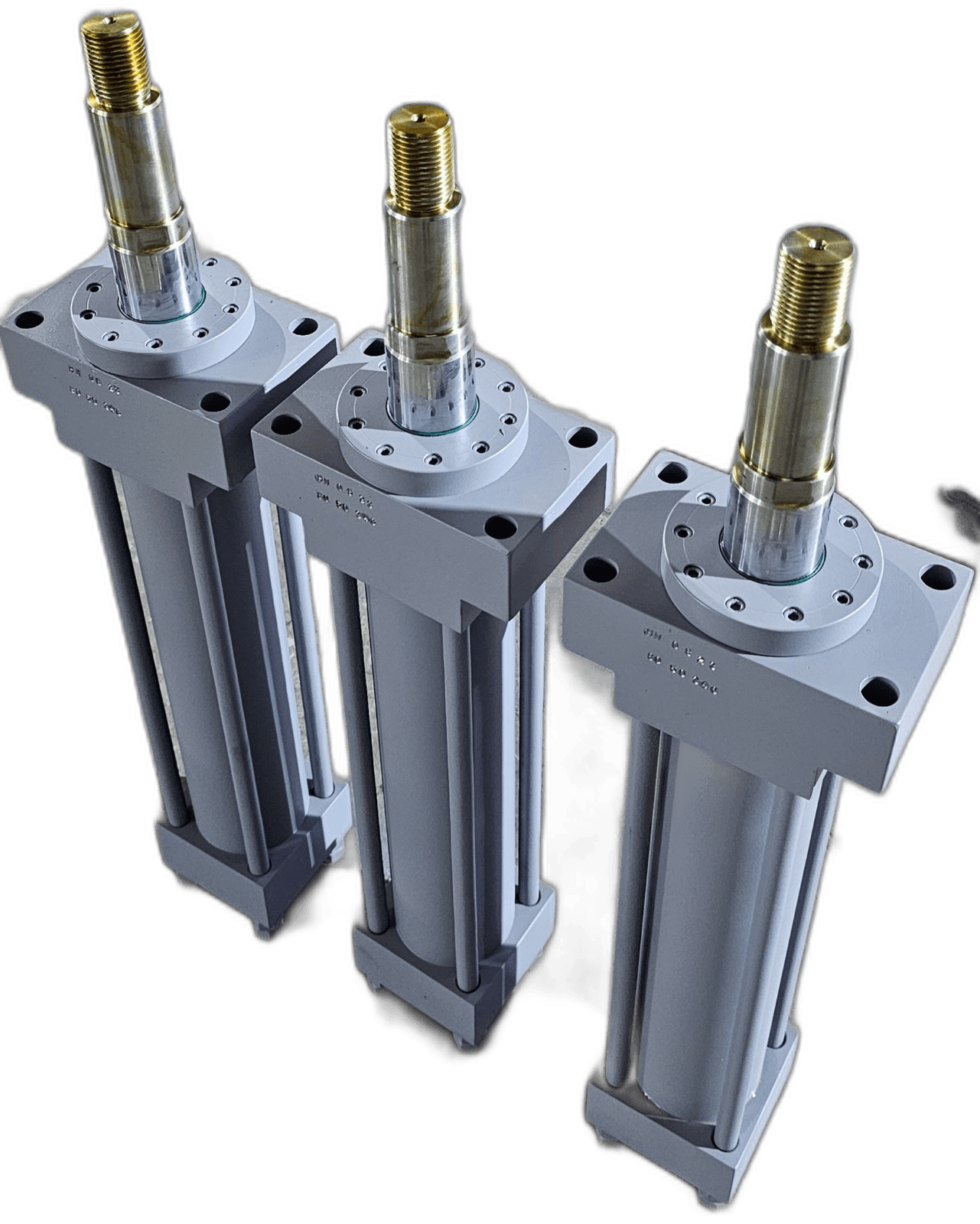

Tie-Rod Hydraulic Cylinders (NFPA Standard)
High-tensile tie-rod hydraulic cylinders built to NFPA/ISO standards for injection moulding, automation lines, and machine tool clamping.
Hydraulic Cylinders

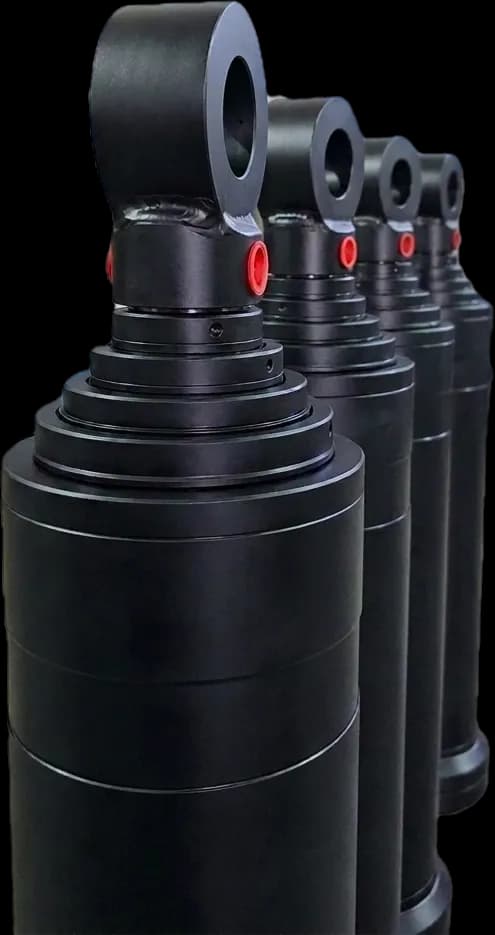

Multi-Stage Telescopic Hydraulic Cylinders
Compact collapsed height multi-stage telescopic cylinders providing extended stroke lengths for tippers, dump trucks, and aerial access equipment.
Hydraulic Cylinders

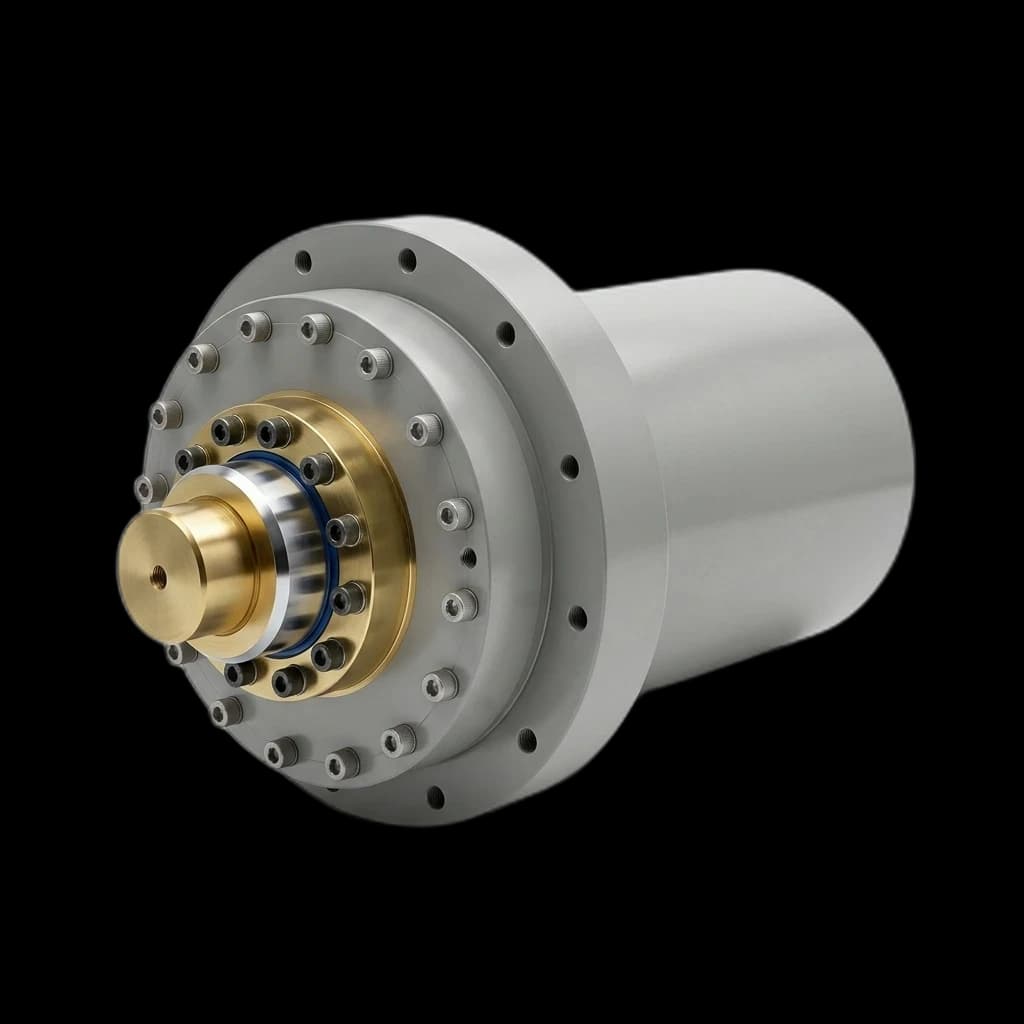

Heavy Duty Welded Hydraulic Cylinders
Rugged welded body cylinders engineered for severe duty cycles, high shock loads, and harsh outdoor operating environments.
Hydraulic Cylinders

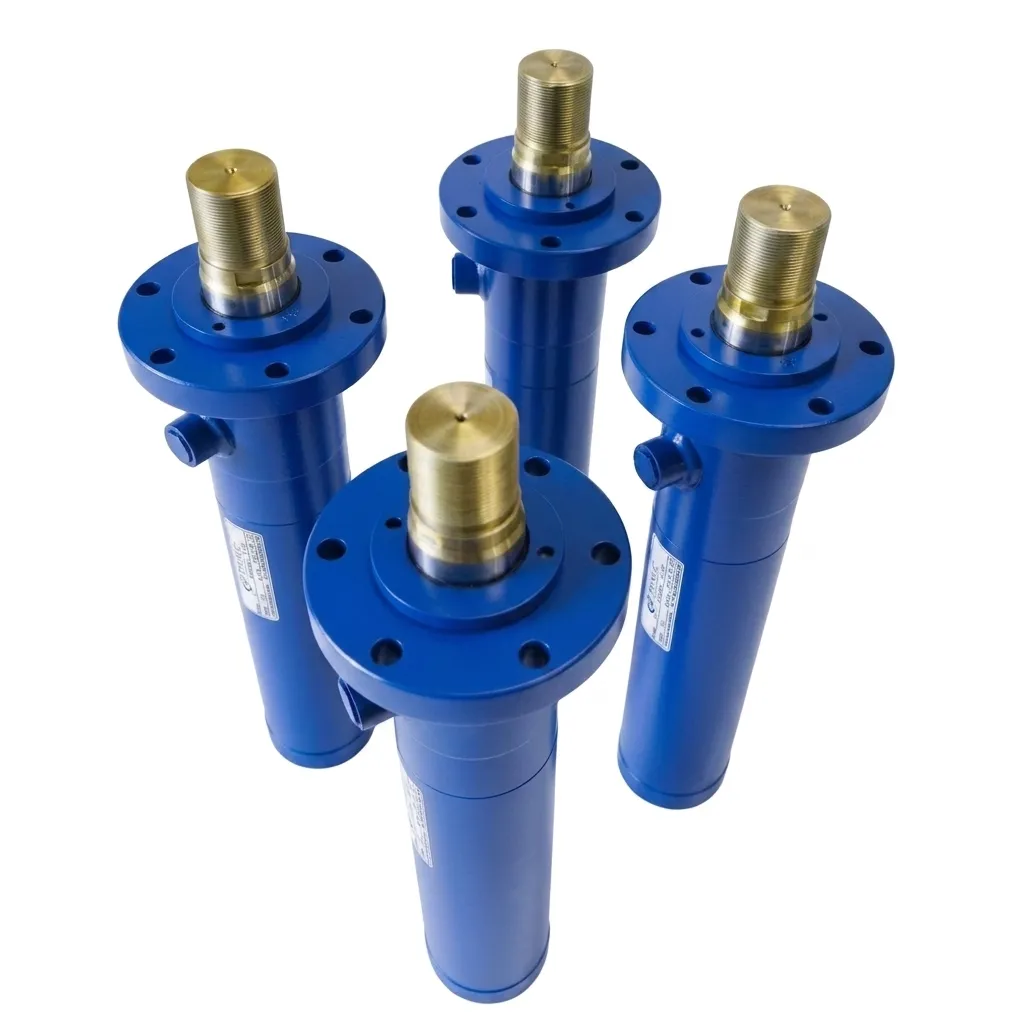

Flange Mounted Hydraulic Cylinders
Front rectangular (MF1), front circular (MF3), and rear flange (MF2/MF4) mounting cylinders providing rigid thrust line support on machine frames.
Hydraulic Cylinders

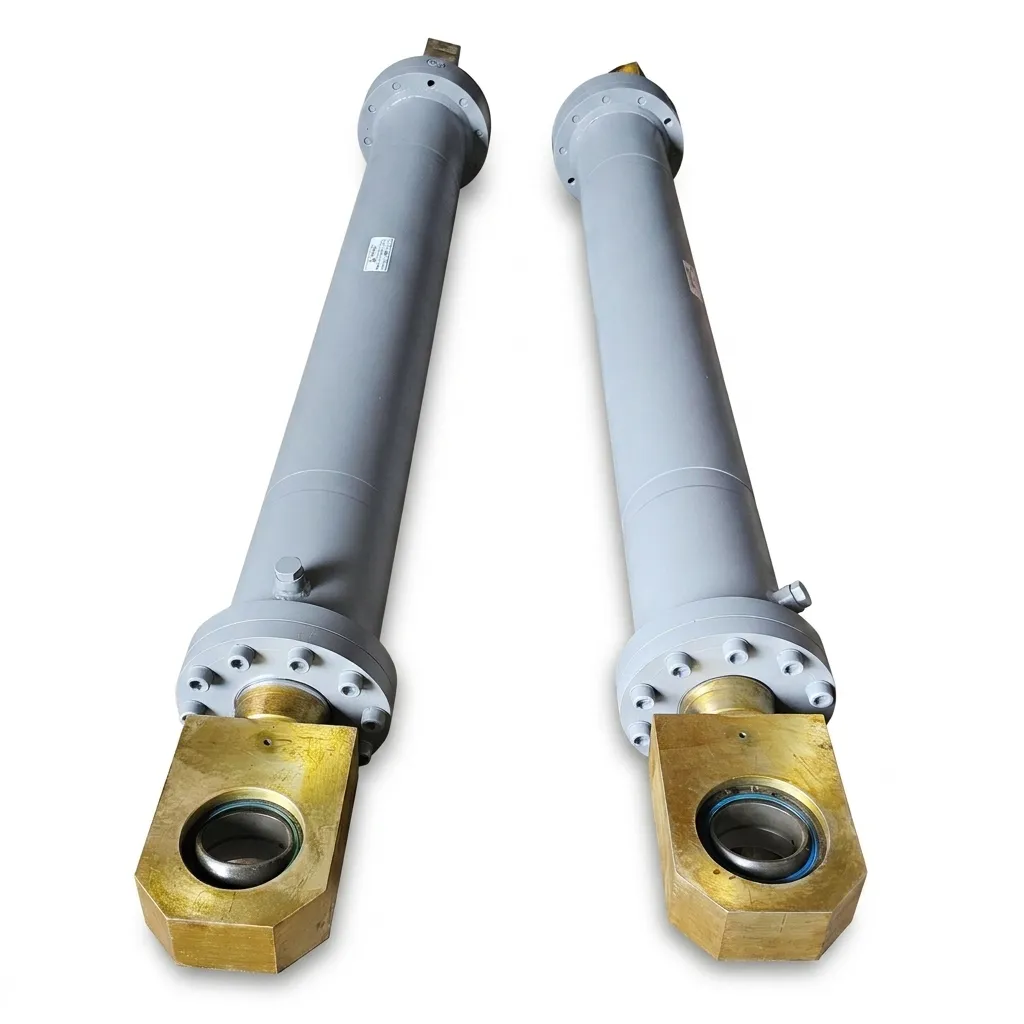

Clevis Mounted Hydraulic Cylinders
Pivot-mounted clevis cylinders with spherical bearings or pivot pins designed for arc-motion loading in agricultural and mobile machinery.
Hydraulic Cylinders

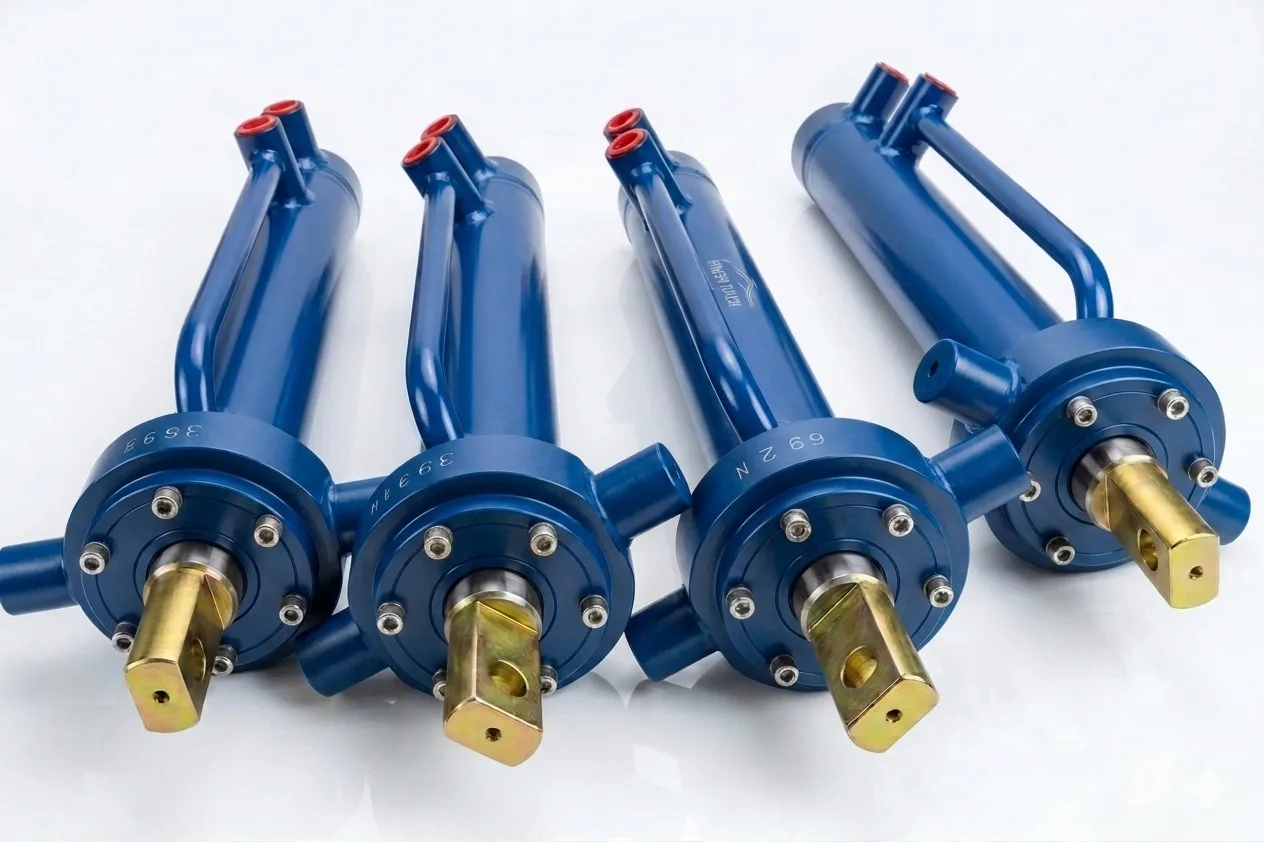

Trunnion Mounted Hydraulic Cylinders
Intermediate, head, and cap trunnion mounted cylinders (MT4/MT1/MT2) designed to reduce rod buckling loads over extended working strokes.
Hydraulic Cylinders

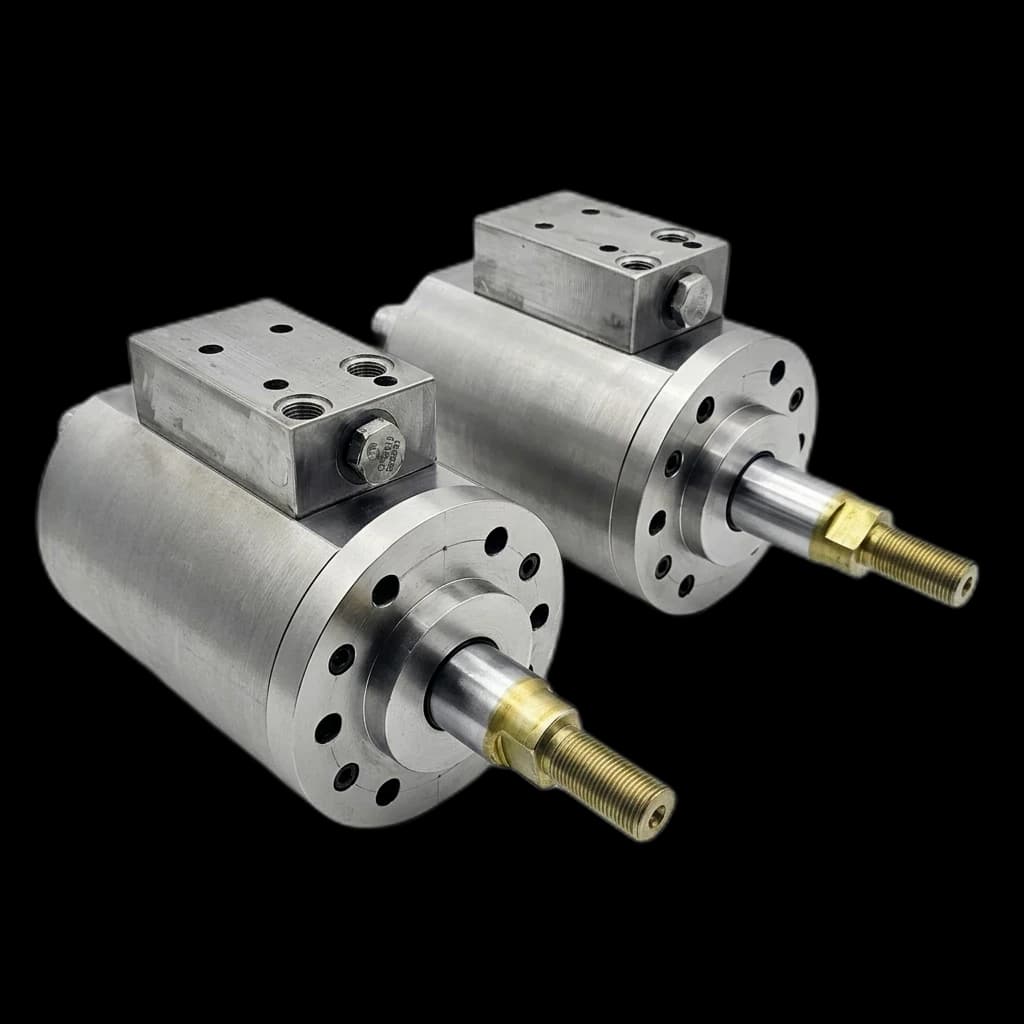

Custom Engineered Hydraulic Cylinders
Custom OEM hydraulic cylinders engineered to precise bore (25mm to 500mm), stroke (up to 6000mm), and pressure ratings up to 350 bar.
Hydraulic Cylinders

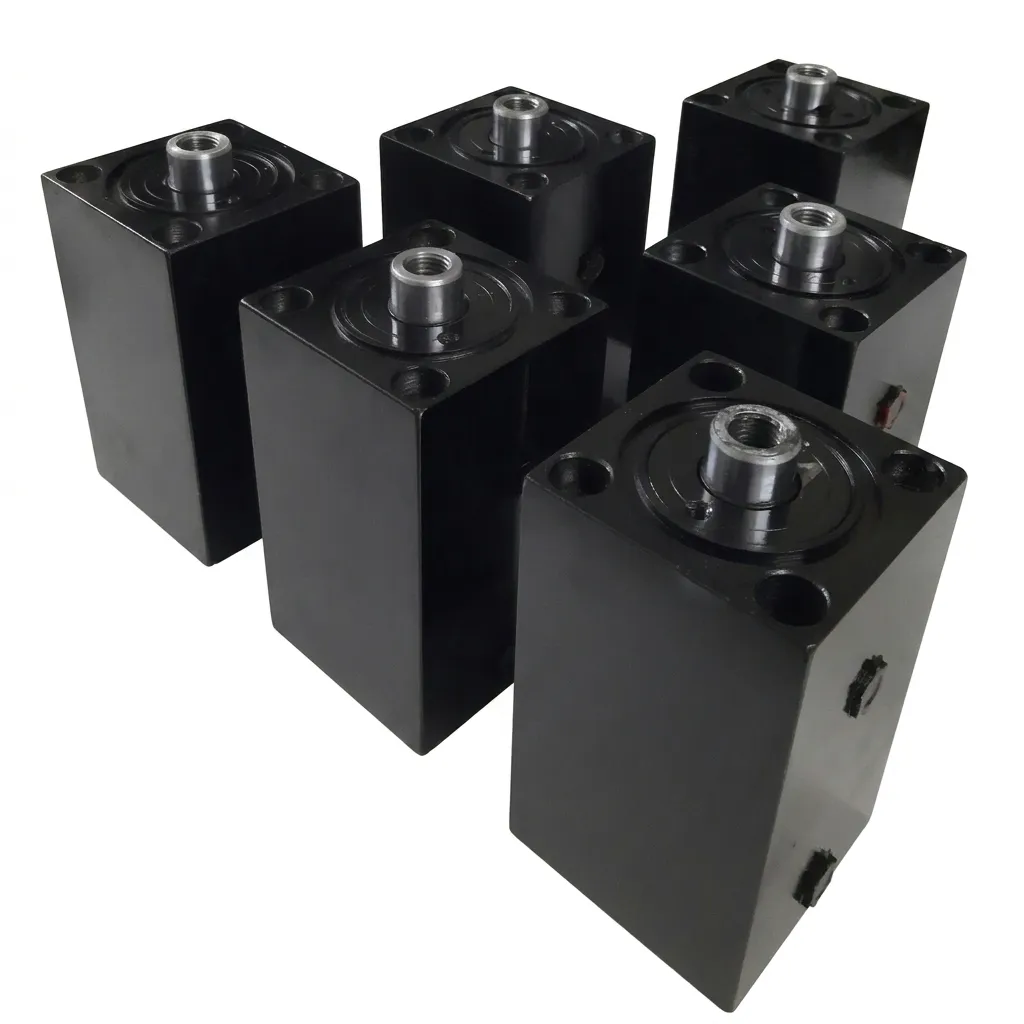

Square Body Hydraulic Industrial Jacks
Ultra-compact square body hydraulic cylinders and jacks built for high-force sheet metal clamping, die lifting, and confined tooling setups.
Hydraulic Cylinders

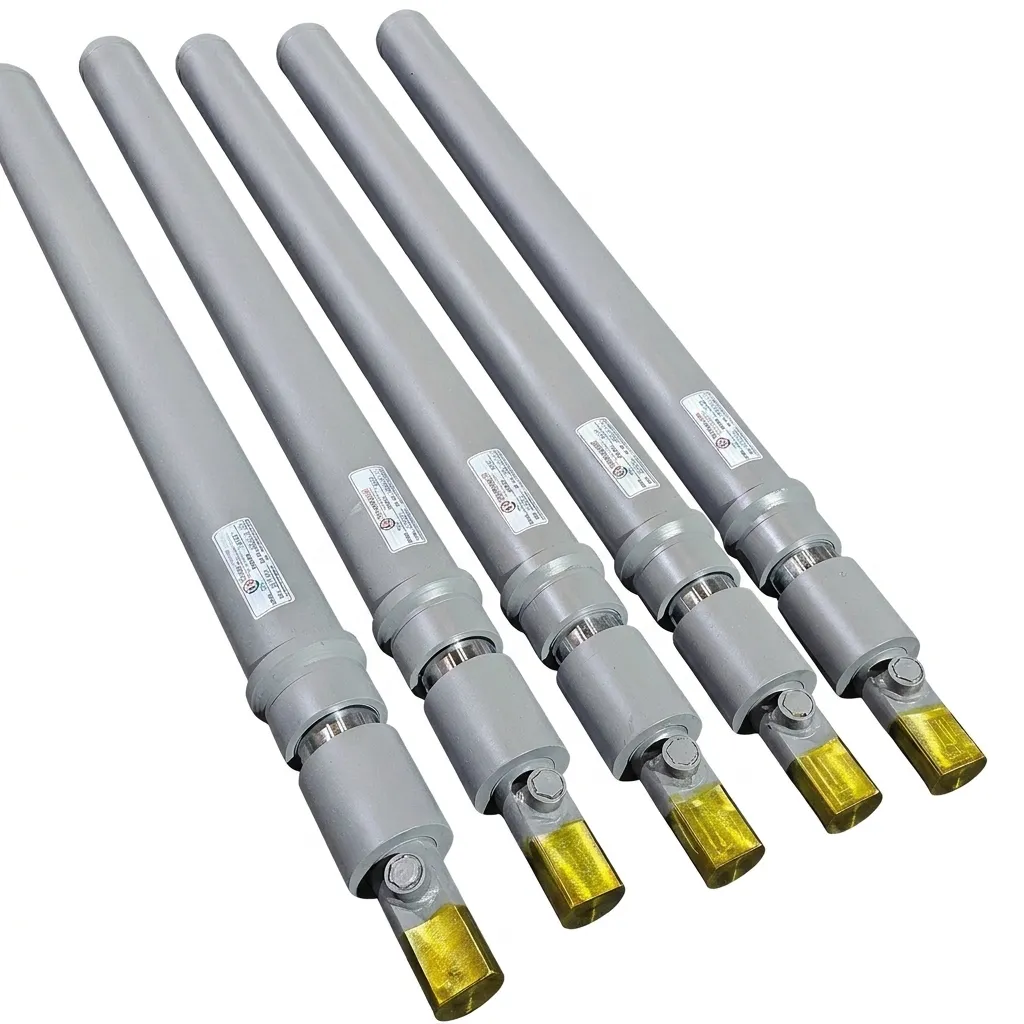

Multi-Level Car Parking Cylinders
Specialized hydraulic cylinders engineered for puzzle parking, stack parking, and automated rotary vehicle parking elevator systems.
Hydraulic Cylinders

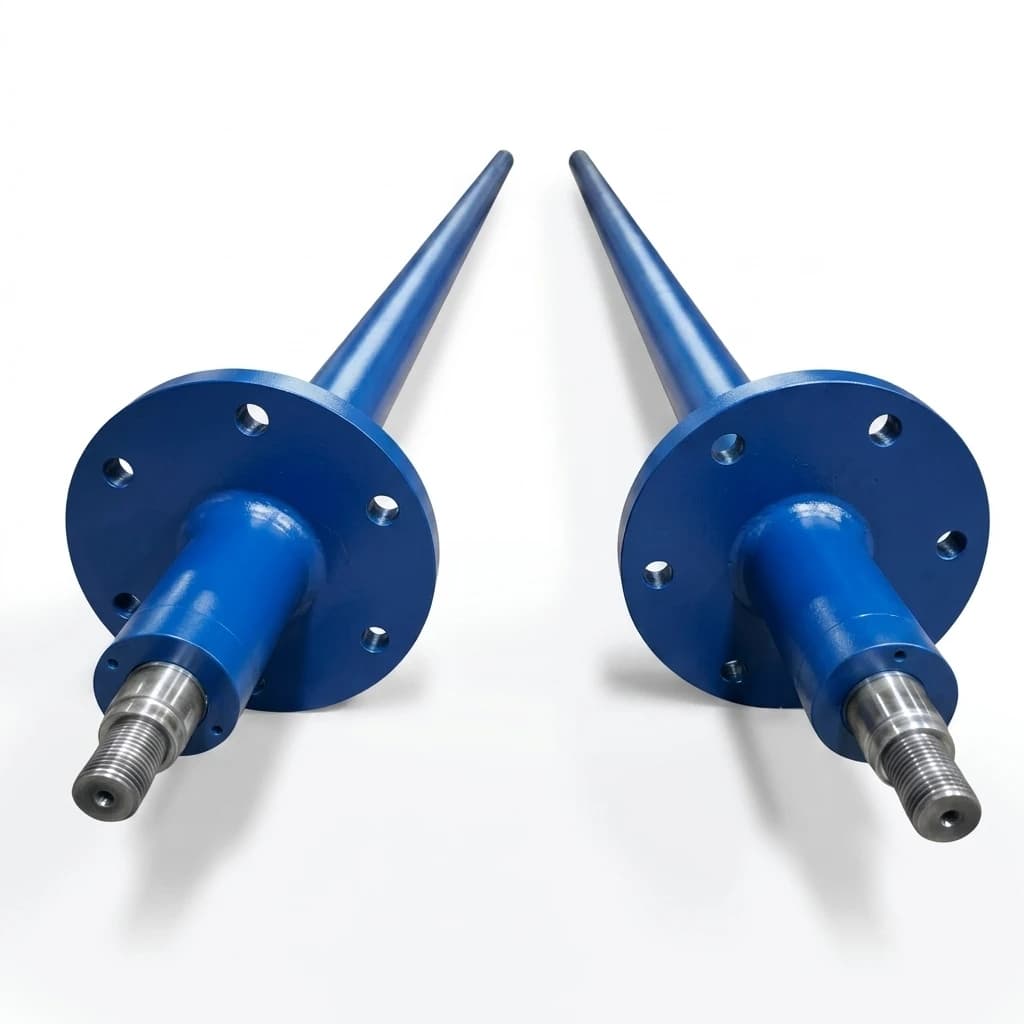

Goods Lift & Elevator Hydraulic Cylinders
Direct-acting and cantilever hydraulic cylinders designed for freight elevators, material lifts, and industrial warehouse goods hoists.
Hydraulic Cylinders

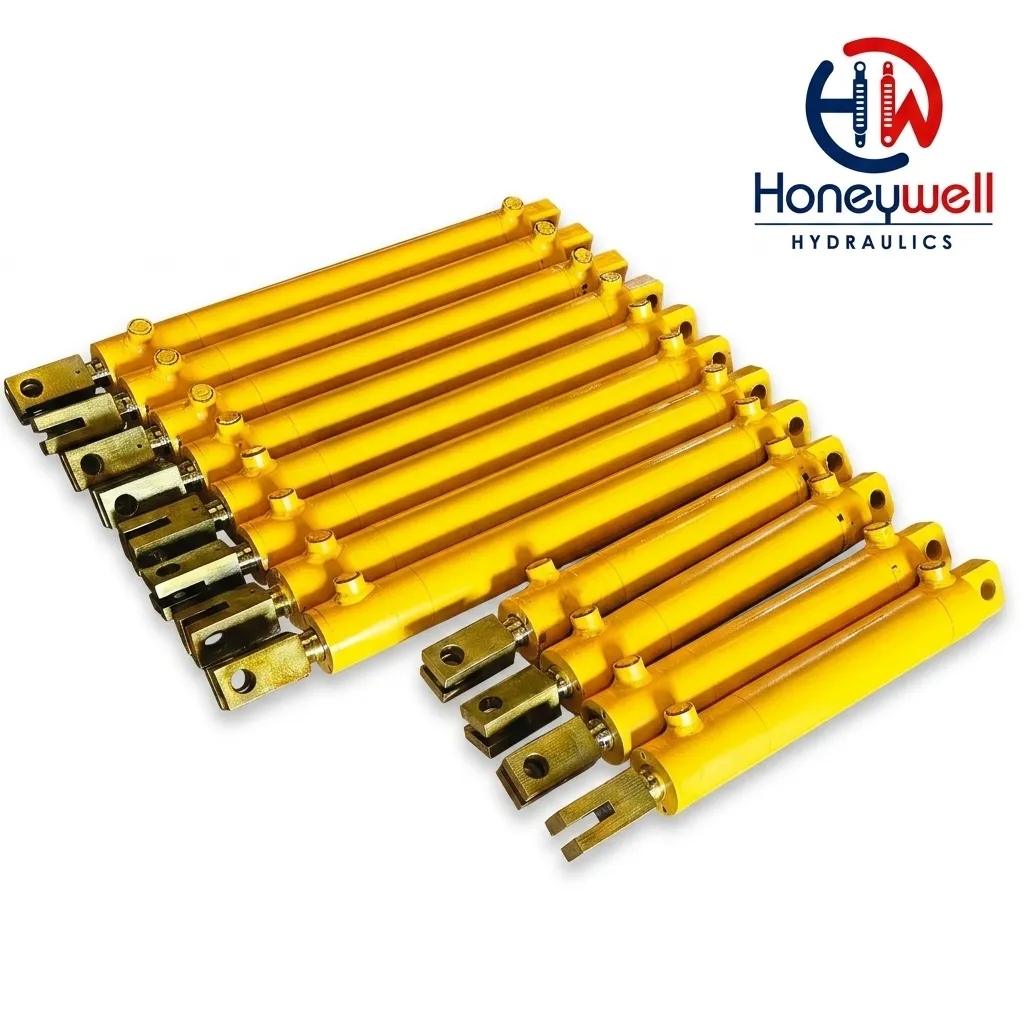

Scissor Lift Table Hydraulic Cylinders
Precision displacement cylinders designed for synchronized dual-cylinder scissor lifts, dock levelers, and assembly work positioners.
Hydraulic Power Packs

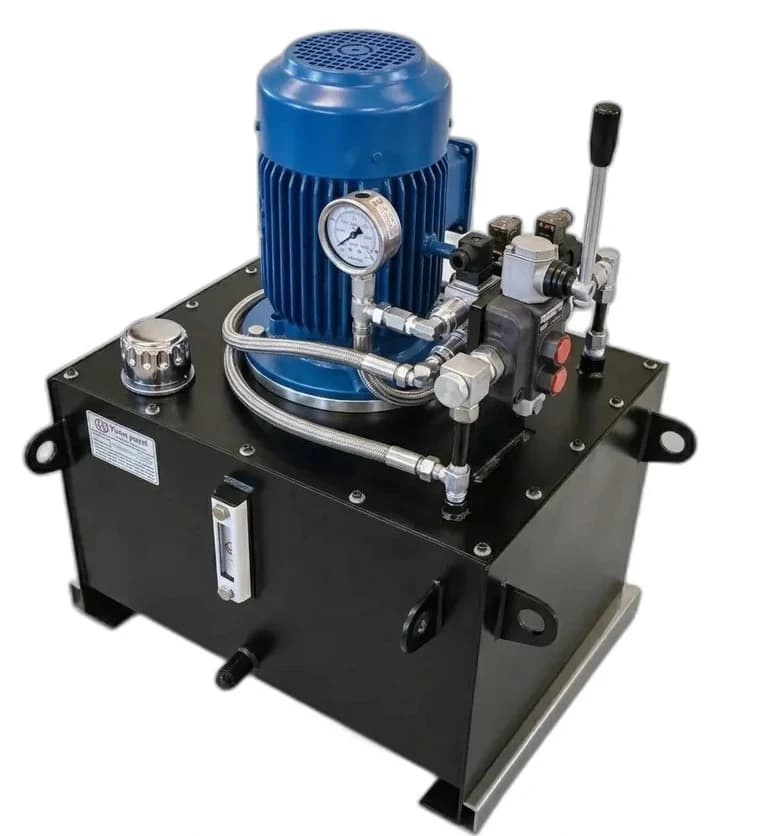

Three Phase Industrial Hydraulic Power Pack
Continuous-duty 3-phase hydraulic power unit (3 HP to 100 HP) with premium IE3 electric motor, filtration system, and CETOP valve banks.
Hydraulic Power Packs

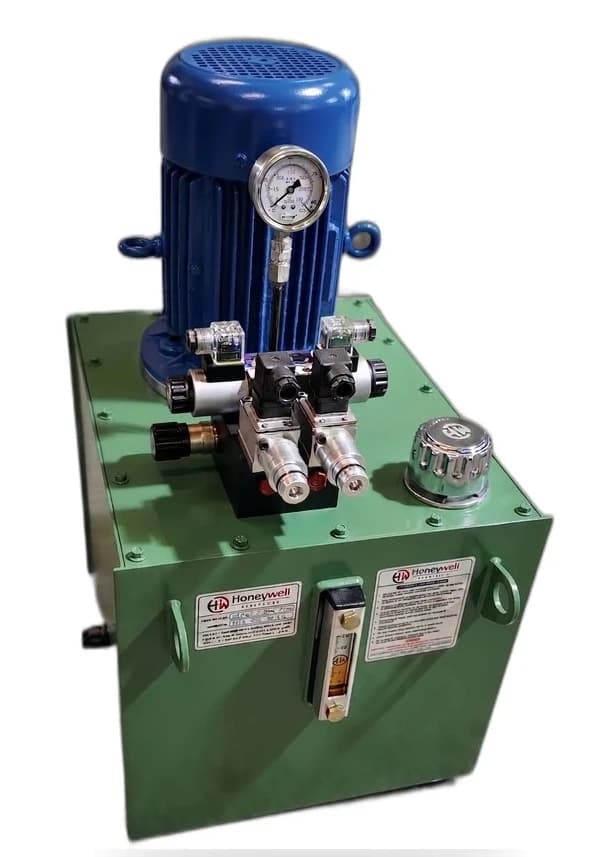

Single Phase Compact Hydraulic Power Pack
Compact 220V/230V single-phase power packs for small workshops, garage lifts, dock levelers, and light industrial automation machines.
Hydraulic Power Packs

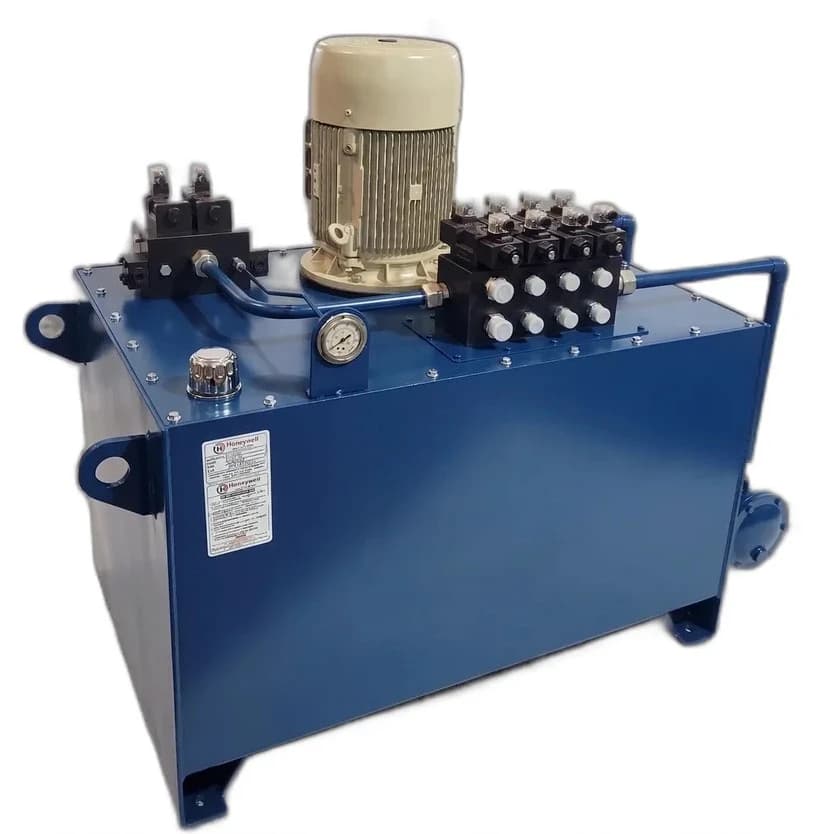

Hydraulic Power Pack for Press Machines
High-tonnage hydraulic unit engineered for deep drawing, rubber moulding, forging, and stamping presses with fast-approach and pre-fill circuits.
Hydraulic Power Packs

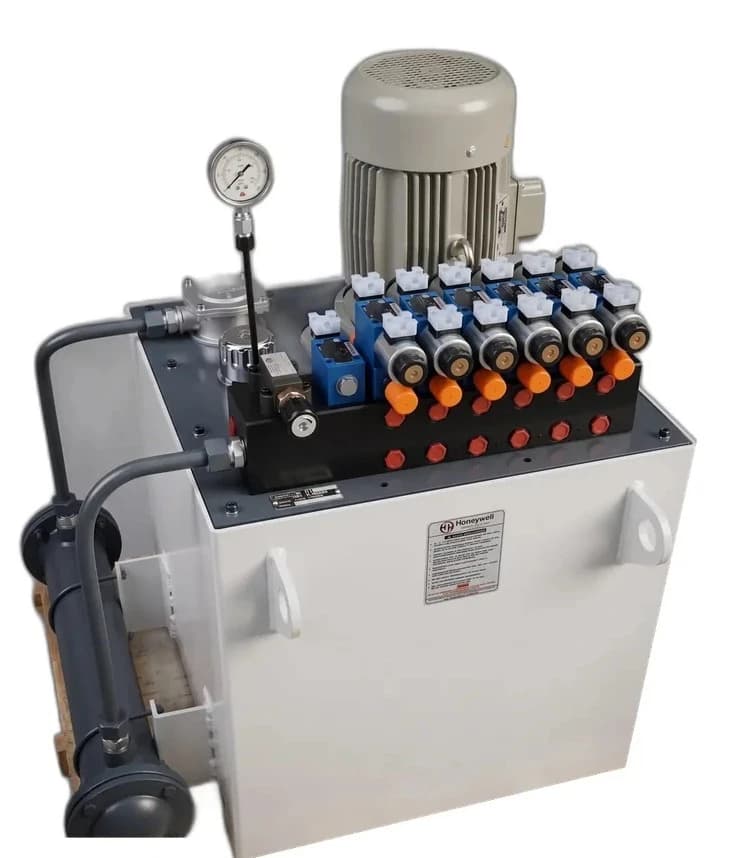

Multi-Station Solenoid Valve Power Pack
Complex hydraulic power unit featuring multiple solenoid directional control valves, modular sandwich logic, and PLC electrical control panels.
Hydraulic Power Packs

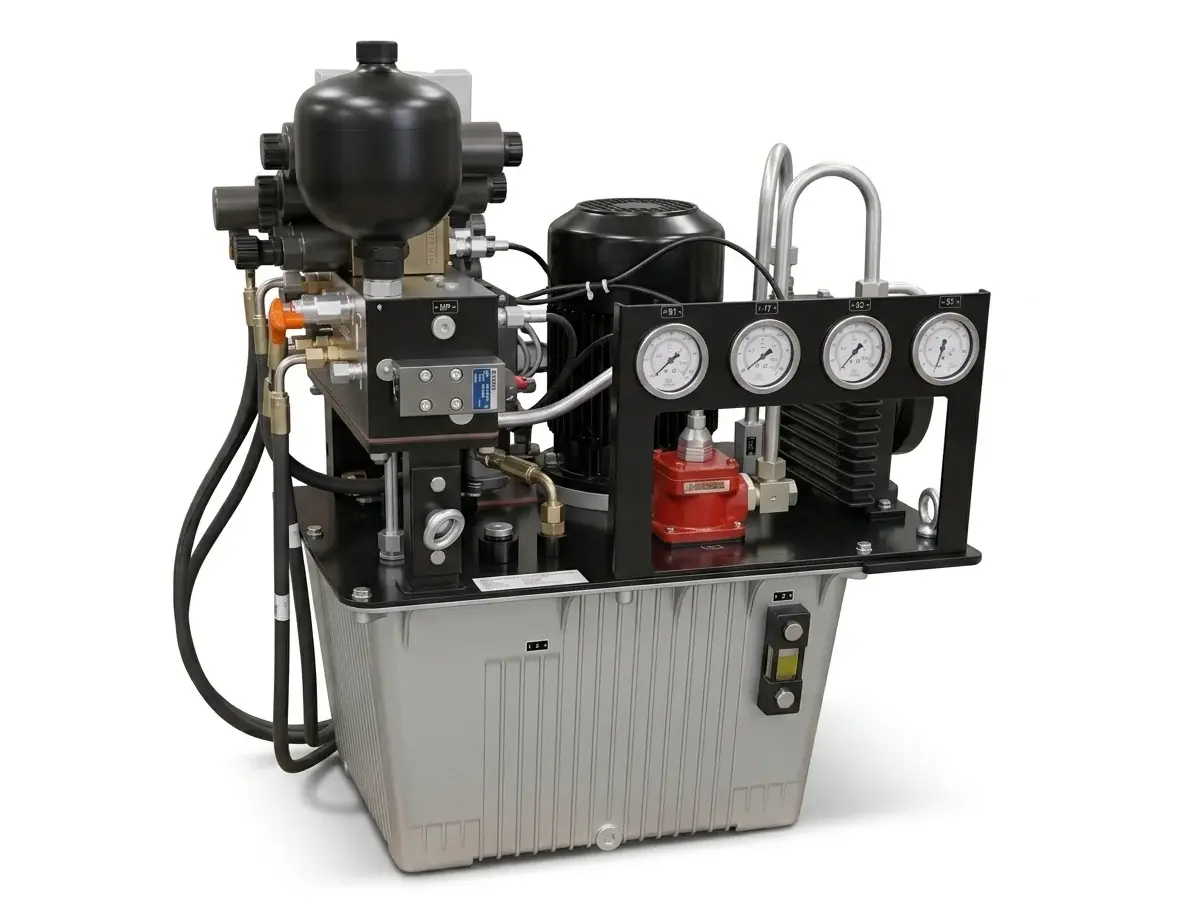

Accumulator-Assisted Hydraulic Power Pack
Bladder and piston accumulator-equipped power units designed for instantaneous high-flow demand cycles and emergency backup safety release.
Hydraulic Power Packs

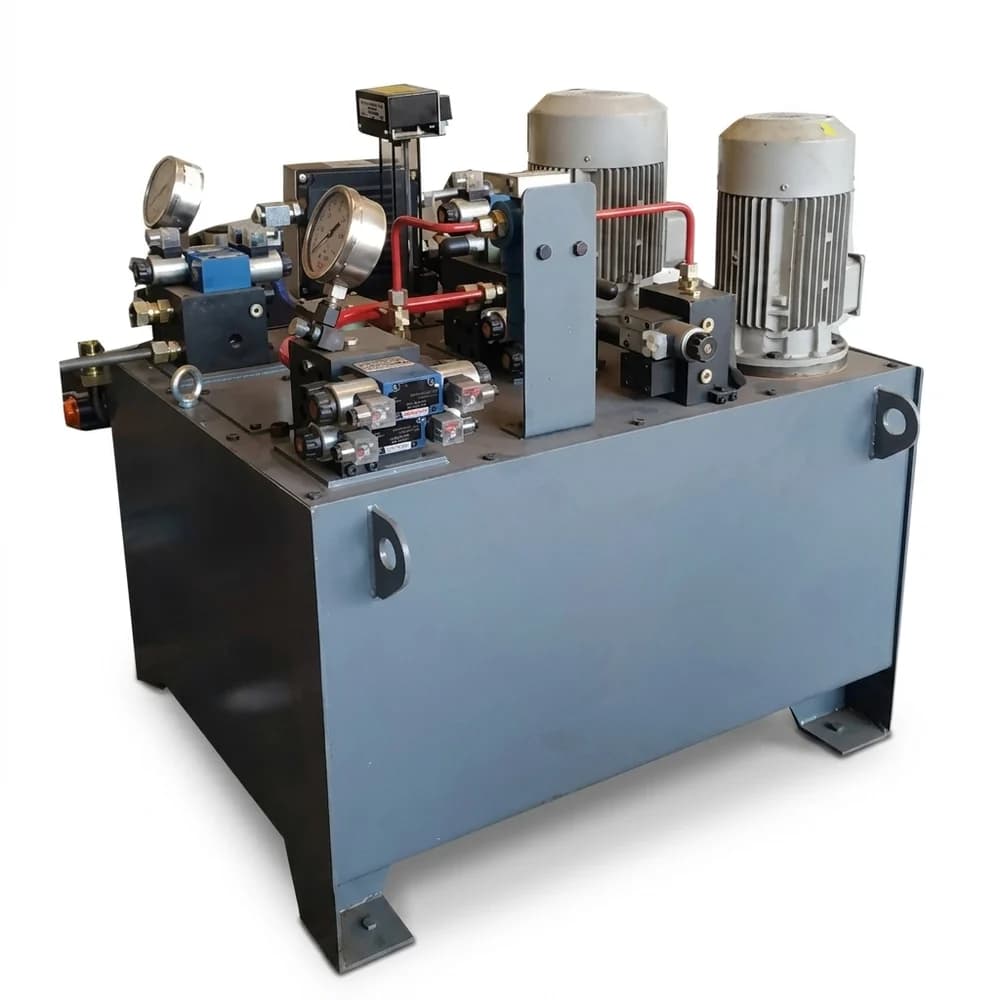

High-Low Dual Stage Hydraulic Power Pack
Dual pump high-flow/low-pressure and low-flow/high-pressure power unit optimizing cycle speed and energy efficiency in hydraulic press operations.
Hydraulic Power Packs

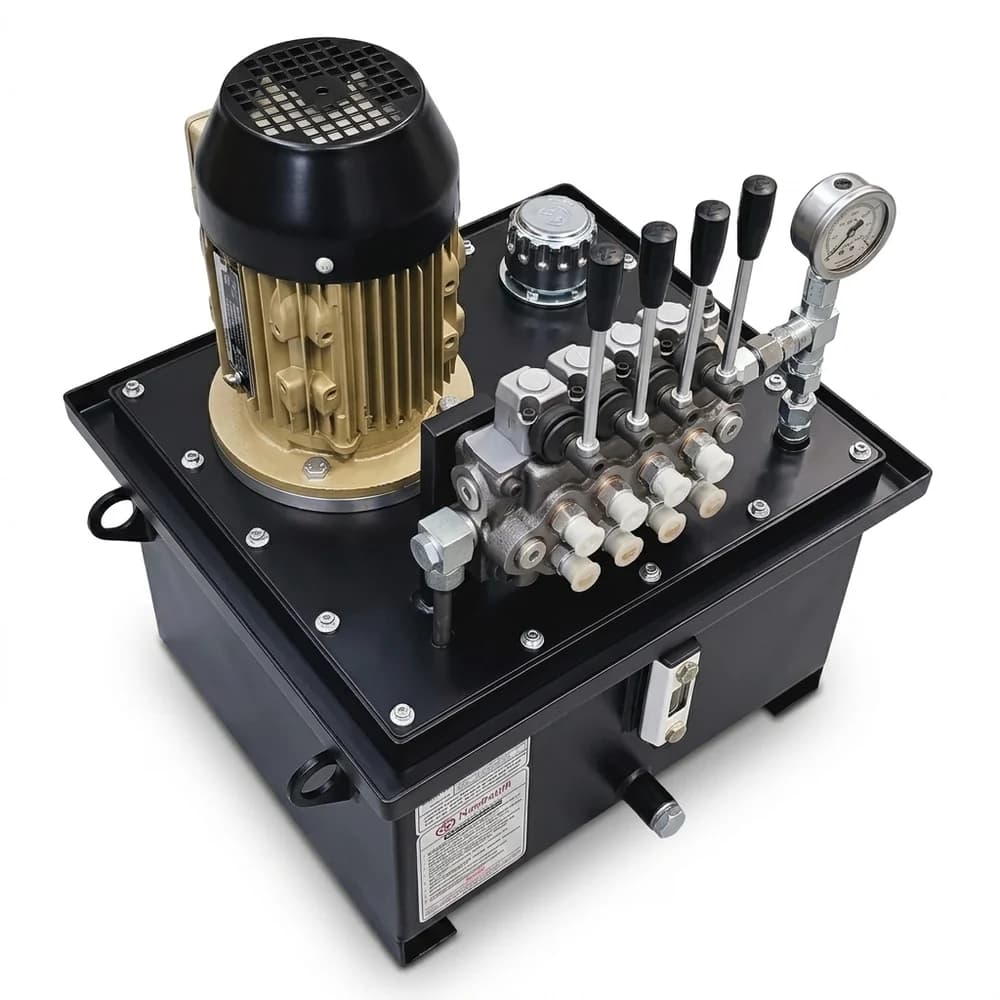

Hand Lever Operated Hydraulic Power Pack
Manual mechanical spool valve power pack designed for rugged field conditions, mobile hydraulic equipment, and precise operator feedback.
Hydraulic Power Packs

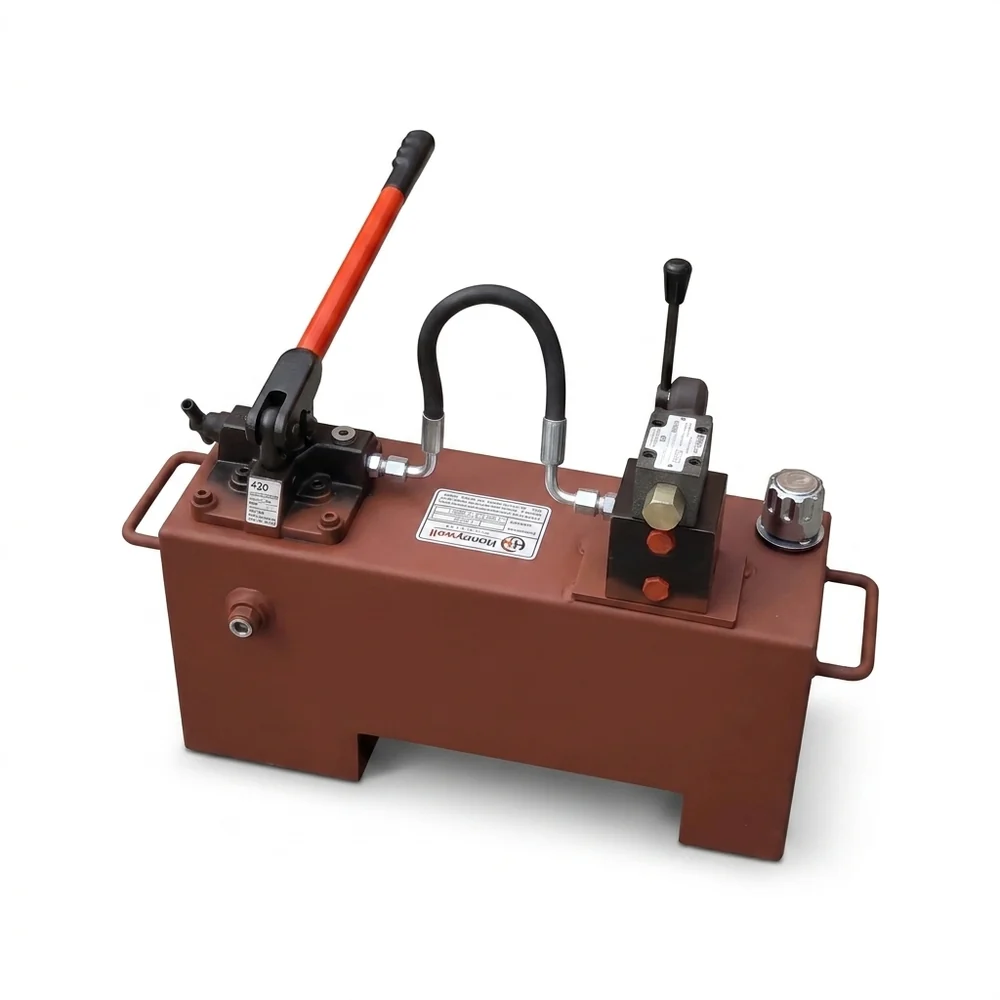

Hand Pump Emergency Auxiliary Power Pack
Integrated auxiliary hand pump system providing fail-safe manual lowering and emergency pressure generation during electrical outages.
Hydraulic Power Packs

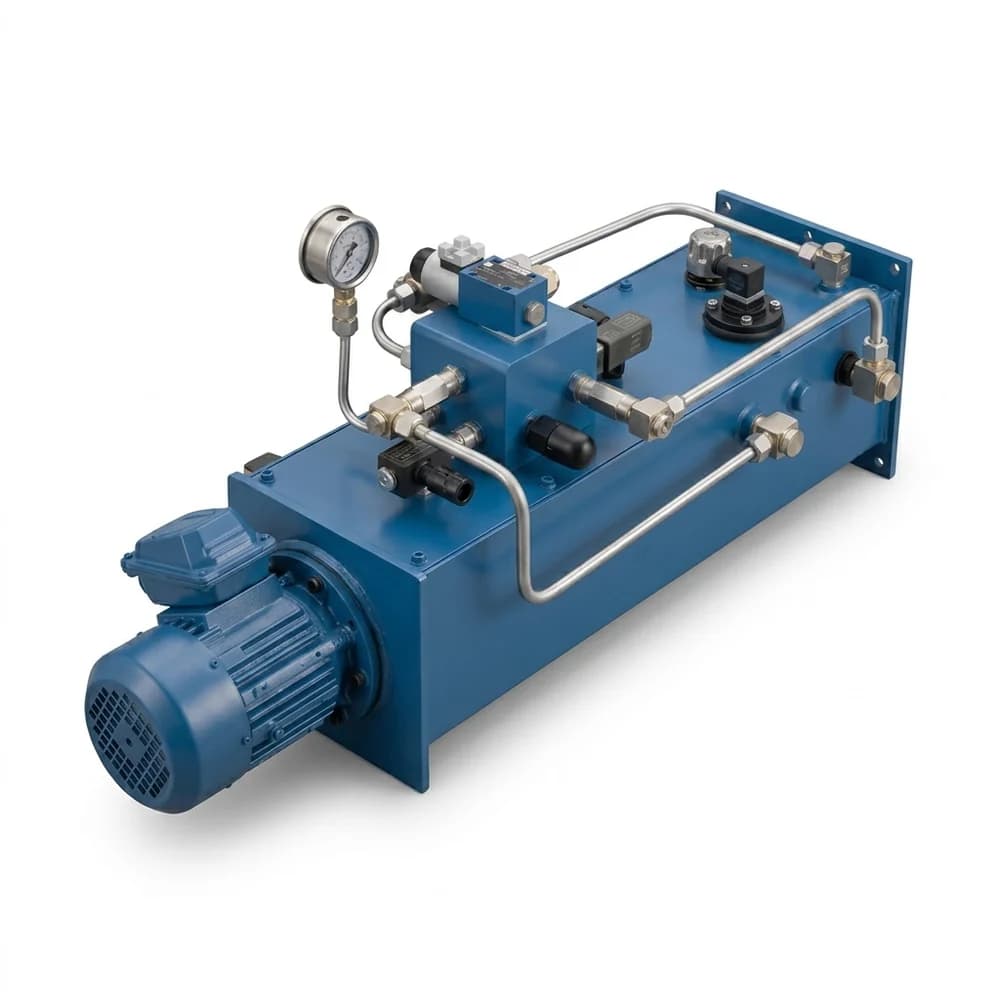

Custom Engineered Hydraulic Power Units (HPU)
Bespoke hydraulic power units engineered with custom tank volumes (20L to 2000L), proportional valves, immersion heaters, and oil coolers.
Hydraulic Power Packs

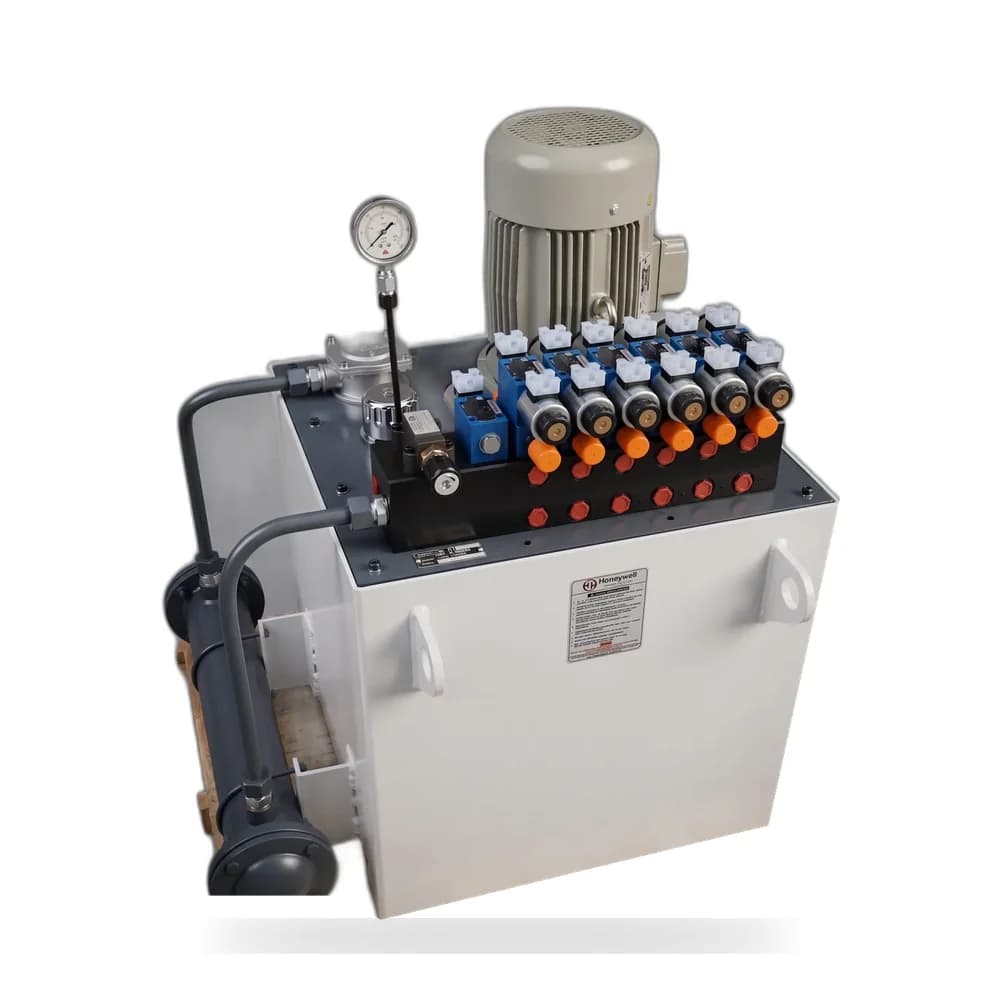

Modular Multi-Valve Hydraulic Power Unit
High-density multi-station valve block integration designed to control multiple synchronized cylinders from a single centralized power pack.
Manifold Blocks

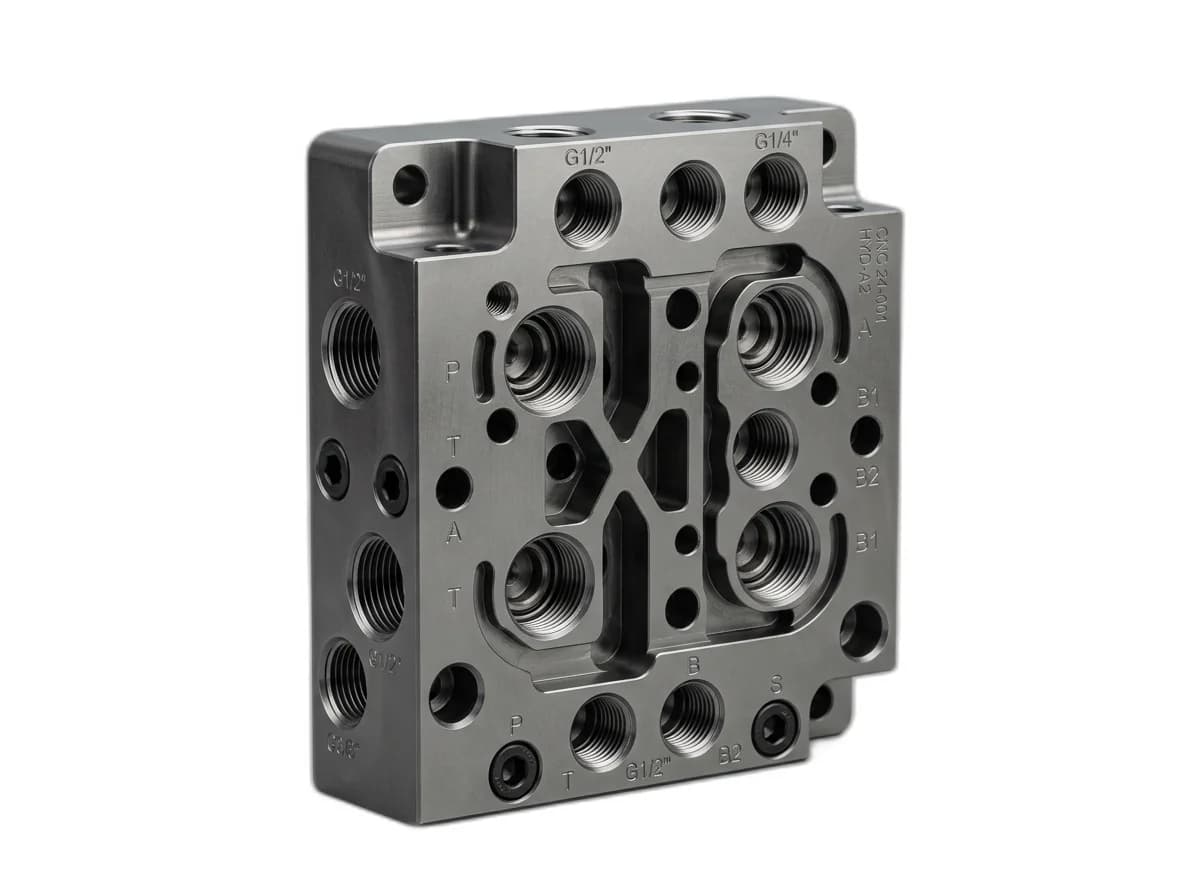

Custom CNC Machined Hydraulic Manifold Block
Monoblock solid carbon steel manifold block CNC-machined with complex internal cross-flow galleries, cartridge cavities, and Ra 0.2 µm sealing faces.
Manifold Blocks

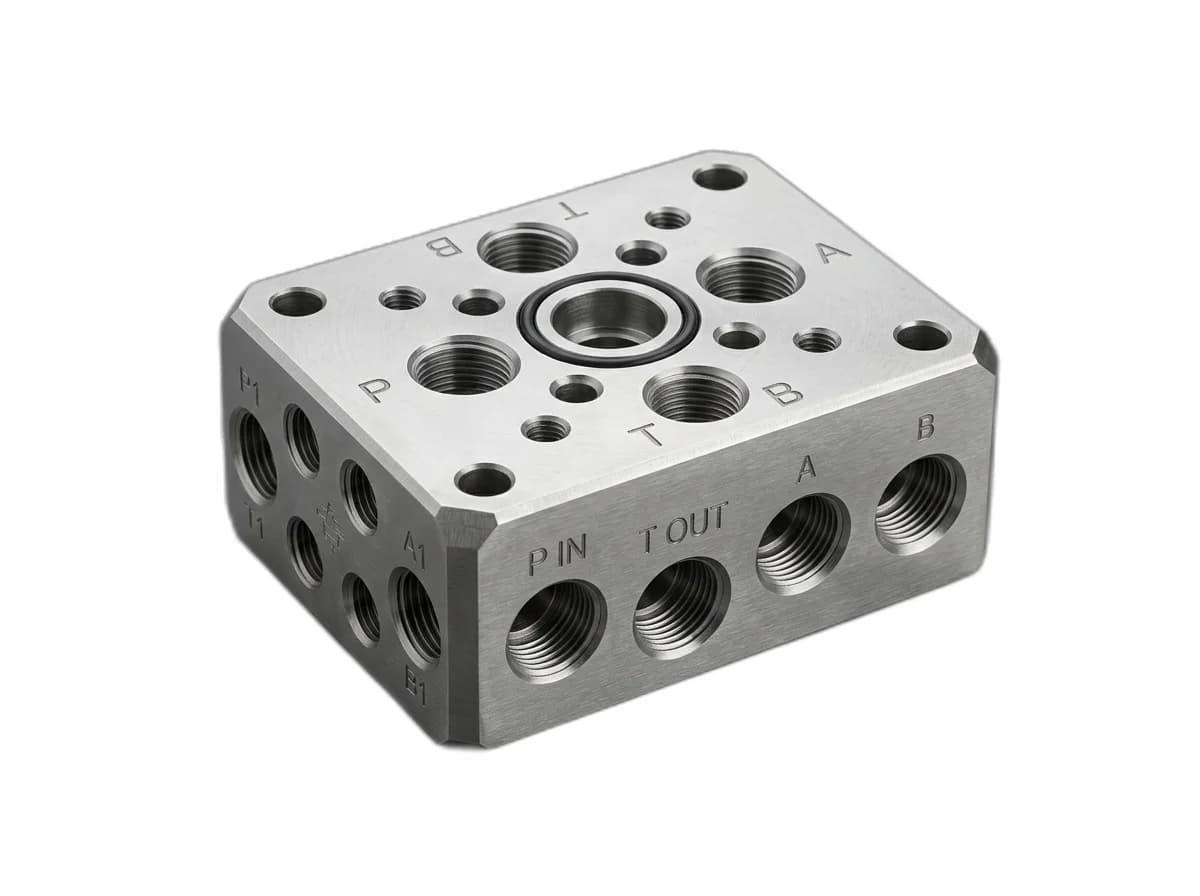

06-Size CETOP 03 / NG6 Hydraulic Manifold Block
Standard single-station CETOP 03 (D03 / NG6) directional valve subplate with standard P, T, A, B threaded ports rated for 315 bar working pressure.
Manifold Blocks

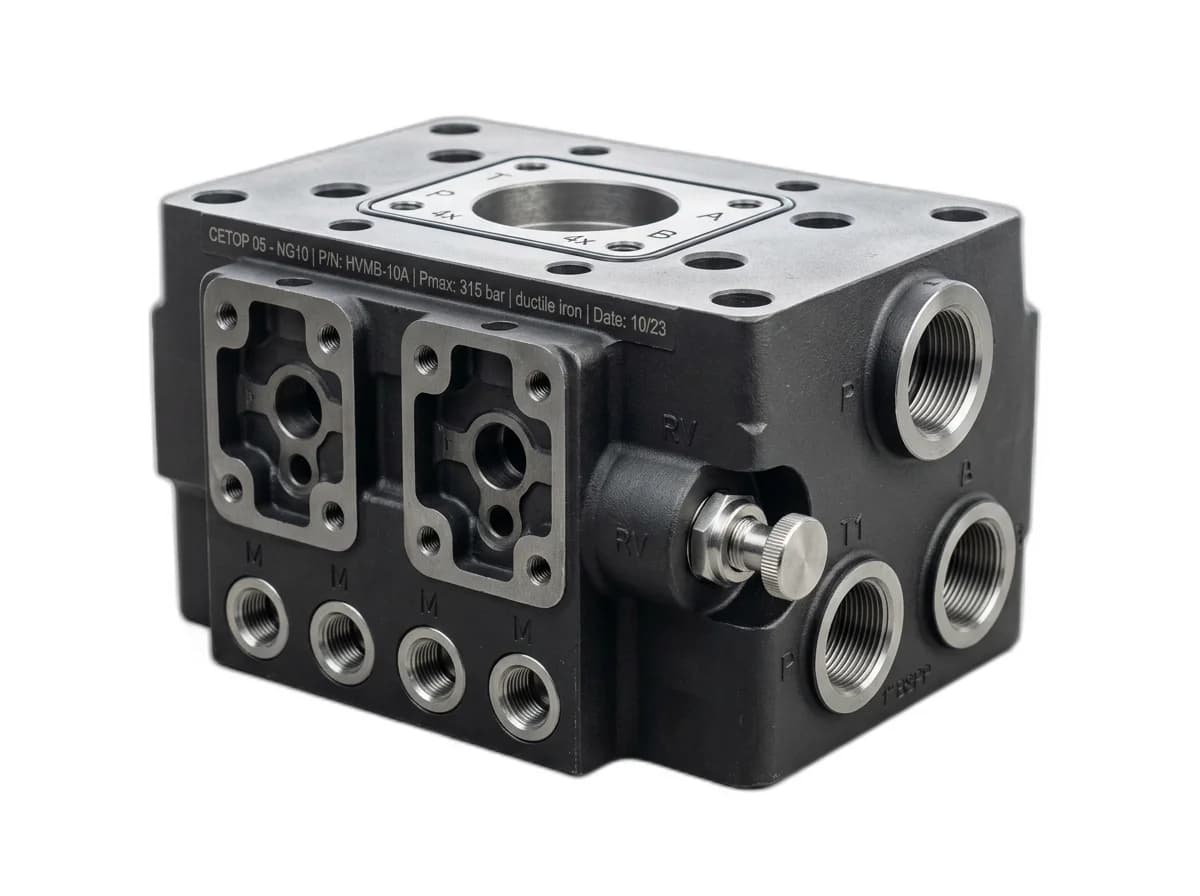

10-Size CETOP 05 / NG10 Hydraulic Manifold Block
High-flow CETOP 05 (D05 / NG10) hydraulic valve manifold block machined from ductile iron with integrated pressure gauge test ports and relief cavity.
Manifold Blocks

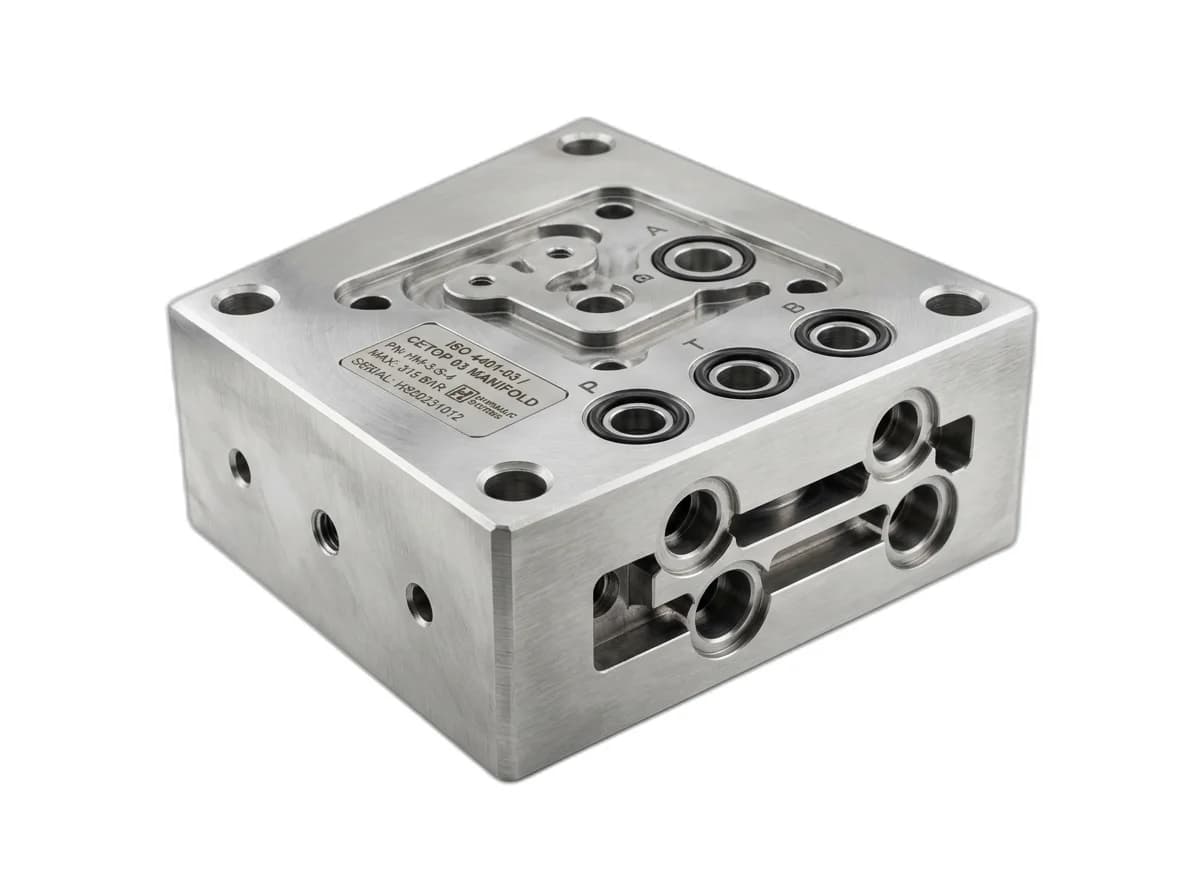

CETOP Modular Sandwich Manifold Block (ISO 4401)
Precision ISO 4401 compliant modular sandwich subplate manifold block featuring recessed O-ring grooves and standardized 4-bolt valve mounting interface.
Manifold Blocks

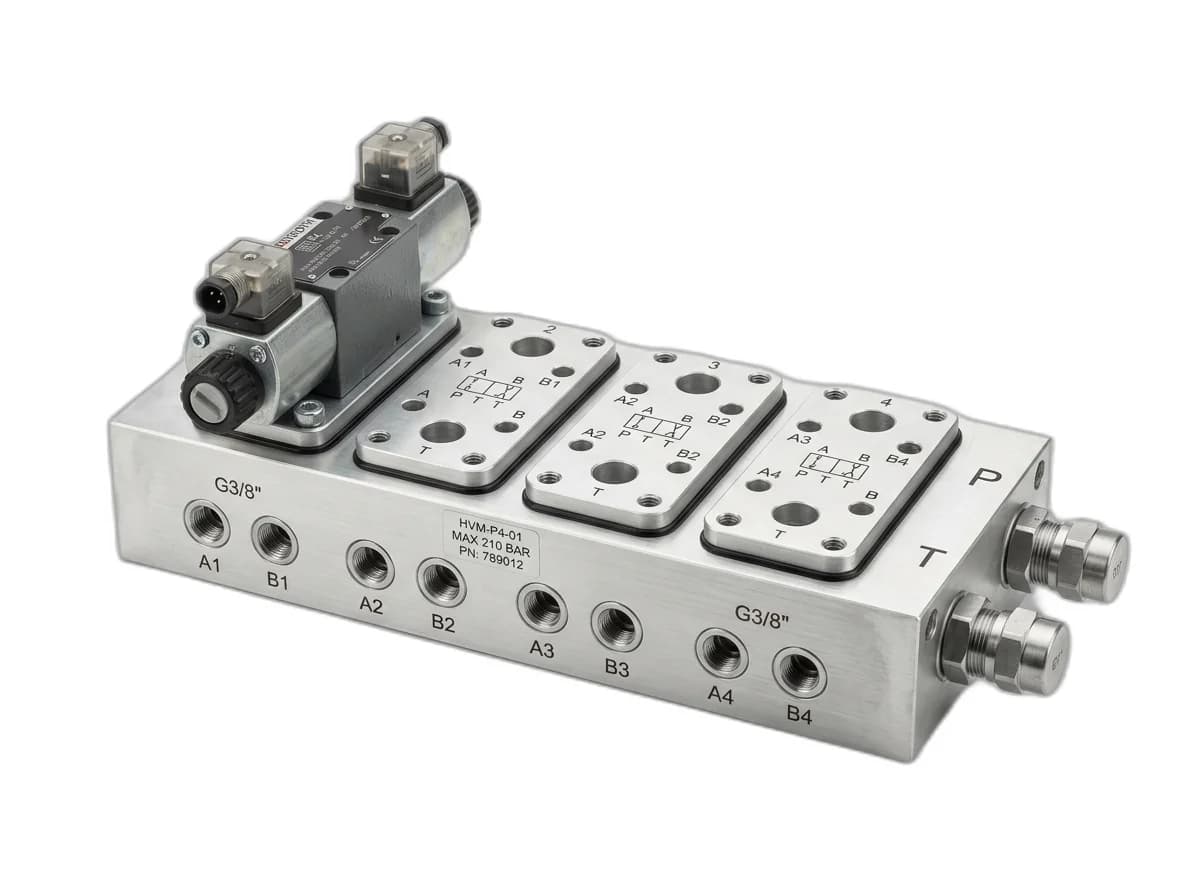

Multi-Station Parallel Cartridge Manifold Block
4-station parallel hydraulic manifold block with common pressure and tank galleries, dedicated work ports, and CNC machined cavity ports.
Engineering Depth & Quality Standards
Inside Honeywell Hydraulics Manufacturing
At our specialized engineering facility in Kathwada GIDC, Ahmedabad, every hydraulic cylinder, power unit, and manifold block is manufactured under strict ISO 9001:2015 certified quality controls. Here is how our production processes ensure zero-leak reliability:
1. CNC Machining & Turning
Precision CNC turning lathes and vertical machining centers produce micro-finished piston rods (f7/f8 tolerances) and manifold cavities with surface finishes down to Ra 0.2 µm.
2. Welding & Fabrication
Heavy-duty barrel construction using submerged arc and certified TIG welding on St52 / E355 grade cold-drawn seamless steel tubes and forged end mountings.
3. Cleanroom Seal Assembly
Assembly in contamination-controlled bays utilizing premium Parker and Merkel polyurethane, PTFE, and NBR multi-lip seal kits designed for high-cycle industrial duty.
4. 100% Hydrostatic Testing
Every cylinder and power unit undergoes static and dynamic pressure proof testing up to 400 bar (5800 PSI) with digital transducers to guarantee zero internal bypass.
Explore Specific Product Divisions: Hydraulic Cylinders, Hydraulic Power Packs, and Custom Manifolds.
Need Custom Hydraulic Engineering or a Facility Visit?
Our Ahmedabad engineering team manufactures custom cylinders (bore up to 500mm), power packs (up to 100 HP), and CNC logic blocks. Send us your technical drawings or schedule a walkthrough at our Kathwada GIDC plant.
