Multistation Hydraulic Power Pack Manufacturer
One power source, infinite control. As a specialized Multistation Hydraulic Power Pack Manufacturer, Honeywell Hydraulics engineers centralized fluid power systems capable of driving multiple independent hydraulic circuits simultaneously or sequentially. By utilizing advanced CETOP manifold systems and precise flow sharing logic, we eliminate the need for scattered standalone pumps, streamlining your entire industrial production line.
What is a Multistation Hydraulic Power Pack?

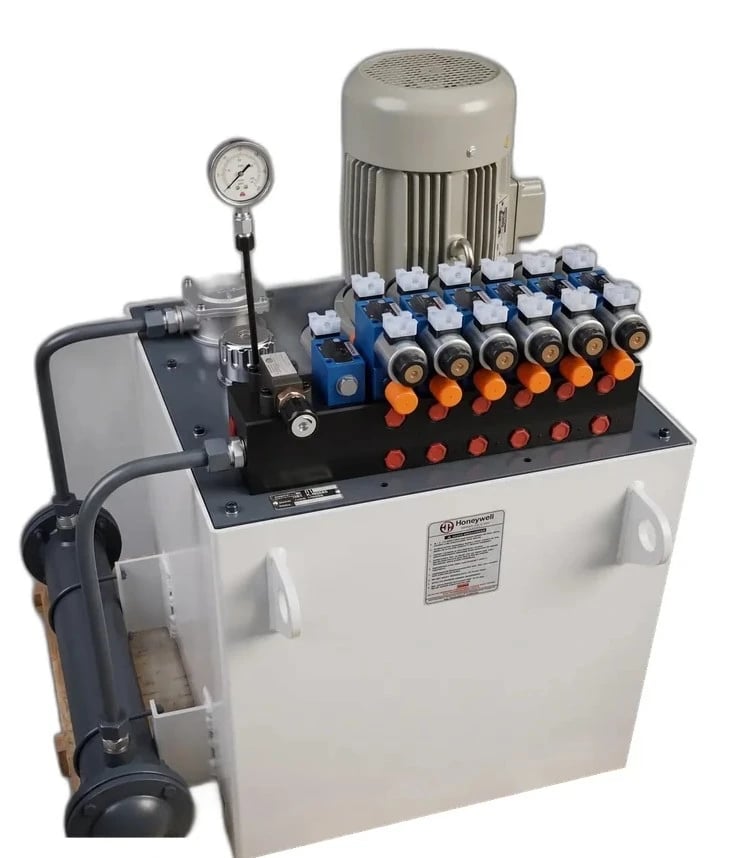

A Multistation Hydraulic Power Pack (or Centralized Hydraulic Power Unit) is designed to supply pressurized fluid to multiple, independently operated Hydraulic Cylinders or motors from a single central reservoir and pump assembly.
Instead of a simple up/down single-valve circuit, a multistation pack utilizes a large, CNC-machined Hydraulic Manifold Block stacked with a "bank" of directional control valves.
This centralized architecture is the backbone of automated industrial manufacturing. Whether you need five cylinders to actuate simultaneously with perfectly balanced flow, or sequentially in a strict PLC-timed order, a multistation unit handles the entire machine's logic from one location.
Typical Multistation Configuration Flow
How one pump drives multiple independent actions without stalling:
Engineering Tip
Designing spare manifold ports (capped with blanking plates) and specifying extra electrical I/O capacity in your control panel during the initial build allows future hydraulic stations to be added with minimal redesign, saving thousands of dollars later.
Core Engineering Advantages
Centralizing your hydraulic power eliminates messy redundant hardware and enables synchronized factory automation.
Centralized Fluid Power
Replaces 5 standalone power packs with 1 highly efficient central unit. Reduces factory noise, simplifies maintenance, and cuts electrical wiring costs drastically.
Stacked CETOP Architecture
Manifolds utilize modular CETOP valve banks. You can sandwich flow-controls or pilot-operated checks directly beneath specific stations without affecting others.
Simultaneous Flow Balancing
Integrates proportional flow dividers and pressure compensators to guarantee multiple cylinders extend simultaneously, regardless of unequal physical loads.
PLC Sequential Control
Built specifically for automation. Pre-wired junction boxes interface directly with Siemens/Allen-Bradley PLCs for microsecond-accurate sequential timing.
Multistation Capability Parameters
We engineer complex logic manifolds for high-speed industrial automation.
Automation Specifications
| Parameter | Value |
|---|---|
| Number of Stations | 2 to 20+ independent circuits |
| Operation Logic | Simultaneous, Sequential, or Hybrid |
| Valve Architecture | CETOP 3 (NG6), CETOP 5 (NG10), CETOP 7 (NG16) |
| Flow Distribution | Internal drilled galleries (CNC machined) |
| Load Balancing | Proportional Flow Control / Pressure Compensators |
| Pump Sizing Method | Based on Peak Simultaneous Demand (LPM) |
| Electrical Interface | Hardwired Relay, IO-Link, Profinet, Modbus TCP |
| Expandability | Spare stations via Blanking Plates |
Multistation vs. Standard Power Pack
Why centralized fluid power is fundamentally required for automation over decentralized standalone units.
| Feature | Multistation Power Pack | Standard Power Pack |
|---|---|---|
| Number of Circuits | Multiple (2 to 20+ independent stations) | Single (One actuator or parallel only) |
| Simultaneous Operation | Engineered for flow sharing & load balancing | Will stall or favor the lightest load |
| Sequential Operation | Highly complex PLC-driven sequences | Simple up/down manual control |
| Automation Compatibility | Designed explicitly for PLC/SCADA integration | Rarely integrated |
| Expandability | High (Remove blanking plate, add valve) | Low (Requires messy external plumbing) |
| Manifold Complexity | Advanced multi-gallery CNC machined blocks | Basic single-station block |
| Maintenance | Centralized (One pump/tank to maintain) | Decentralized (Multiple pumps to maintain) |
| Flow Balancing | Integrates sandwich flow controls per station | No independent station control |
| Energy Efficiency | High (One large efficient motor replaces many) | Low if using multiple standard packs |
| Installation | Clean (One central unit with piped lines) | Cluttered (Power packs scattered everywhere) |
| Initial Cost | Higher upfront engineering cost | Lower upfront cost |
| Industrial Suitability | Assembly lines, CNC machines, Packaging | Scissor lifts, dump trucks, simple presses |
Common Multistation Applications
Centralized hydraulic units are vastly superior to installing individual power packs at every machine station.
Assembly Line Automation
Coordinated actuator timing driven by a central PLC for flawless sequential manufacturing.
Fixture Clamping Systems
Requires highly stable pressure holding across multiple independent vices via PO check valves.
Packaging Machinery
Fast, repetitive, sequential cycles (Fold → Press → Seal) operating from a single manifold.
Engineering Guide: Designing a Multistation System
ATypical Design Inputs (Prerequisites)
1. Number of Actuators 2. Individual flow/pressure needs 3. Sequence Logic Diagram 4. Peak Simultaneous Demand (absolute max moving at once) 5. PLC requirements 6. Space constraints 7. Expansion plans.
BSelection Checklist
Verify: Total hydraulic stations, simultaneous vs sequential operation, flow sharing requirements, manifold configuration (series vs parallel), cooling requirements, and electrical control methods.
CPeak Simultaneous Demand (Pump Sizing)
Do not size the pump by adding the flow of every cylinder. Size it based on Peak Simultaneous Demand—the volume required when the highest number of cylinders move simultaneously. Sequential logic requires far smaller pumps.
DMaintenance Snapshot
DAILY: Check manifold for inter-station leaks, verify gauge pressure. WEEKLY: Inspect valve mounting bolts and solenoid terminals. MONTHLY: Check filter restriction, verify pump alignment. QUARTERLY: Perform PLC diagnostic I/O testing, test sequence timing.
Manufacturing: Manifold & Automation Expertise
Building a multistation pack is an exercise in complex precision machining and deep electrical integration.
Multi-Port CNC Manifold Machining
The heart of a multistation unit is the custom Manifold Block. We CNC machine solid blocks, drilling complex internal galleries that route pressure to multiple valve stations without external piping.
Valve Bank Assembly & Balancing
We assemble stacked CETOP valve banks, integrating sandwich valves (flow restrictors, pilot-operated checks) directly beneath directional valves to tune specific stations independently.
Electrical Panel & PLC Integration
A multistation pack is useless without a brain. We build integrated electrical panels pre-wired to the solenoids, programming PLCs to execute your exact sequential logic.
Simultaneous Load Testing (FAT)
We do not just test the pump. We simulate your Peak Simultaneous Demand—firing all required valves at once—to guarantee the pump size and manifold galleries can handle massive flow without stalling.
Standardizing Your Automated Machinery?
We supply fully tested, PLC-ready multistation packs for serial OEM assembly lines.
