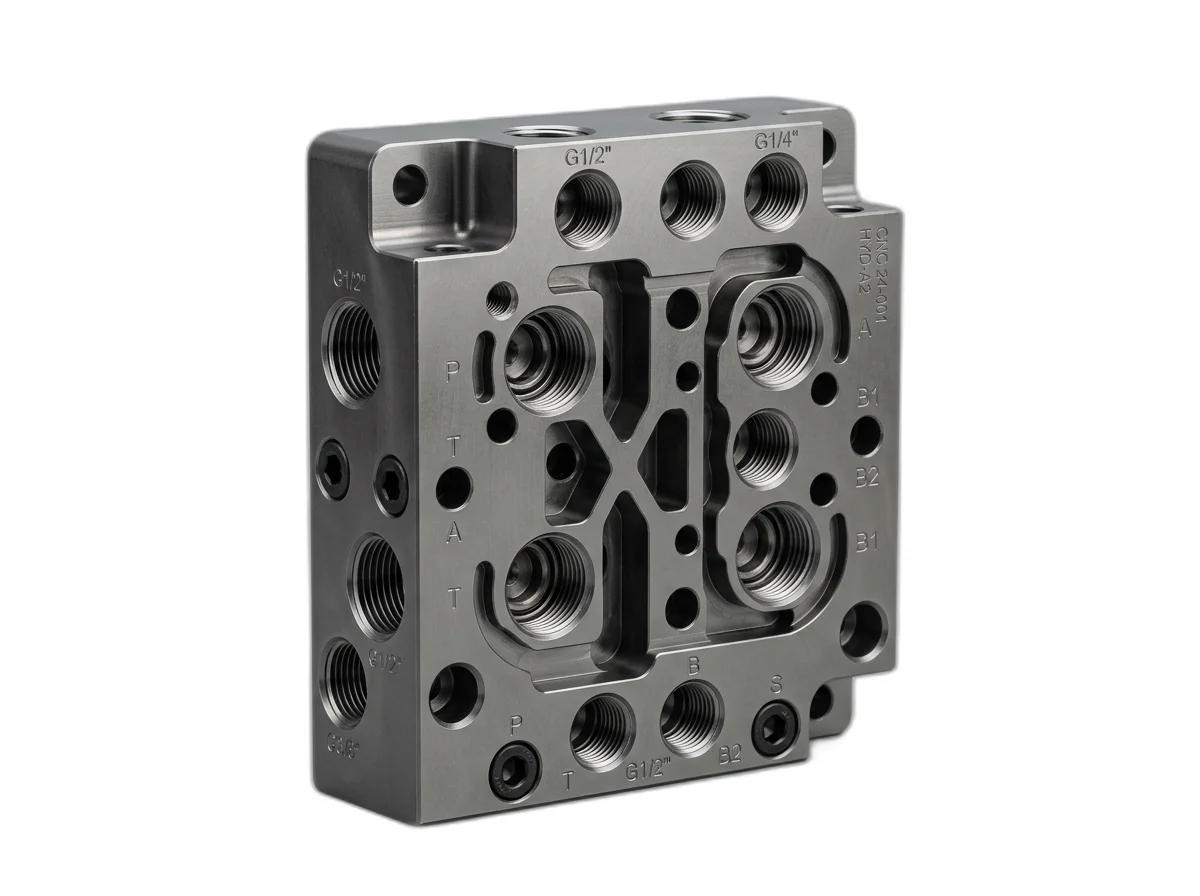

Hydraulic Manifold Block Manufacturer in Gujarat
Engineering zero-leak fluid power control. We design, CNC-machine, and test high-precision CETOP, modular, and custom valve manifold blocks that consolidate complex hydraulic logic into a single, highly efficient footprint.
Types of Manifold Blocks We Manufacture
We machine several distinct categories of hydraulic control blocks based on the complexity of the OEM circuit.
CETOP Manifold Blocks
Standardized subplates manufactured to ISO 4401 specifications. Features standard mounting patterns allowing any brand of directional control valve (Rexroth, Vickers, Parker, Yuken) to be bolted directly.
Multi-Station Manifold Blocks
Designed to control multiple actuators simultaneously. Houses 2, 4, 6, or up to 10 CETOP valves in a single parallel or series circuit as the centralized command center.
Custom Hydraulic Manifold Blocks
Our primary specialty. We design and machine bespoke manifolds integrating screw-in cartridge valves (Sun Hydraulics, HydraForce) for specific logic, load-holding, and proportional control.

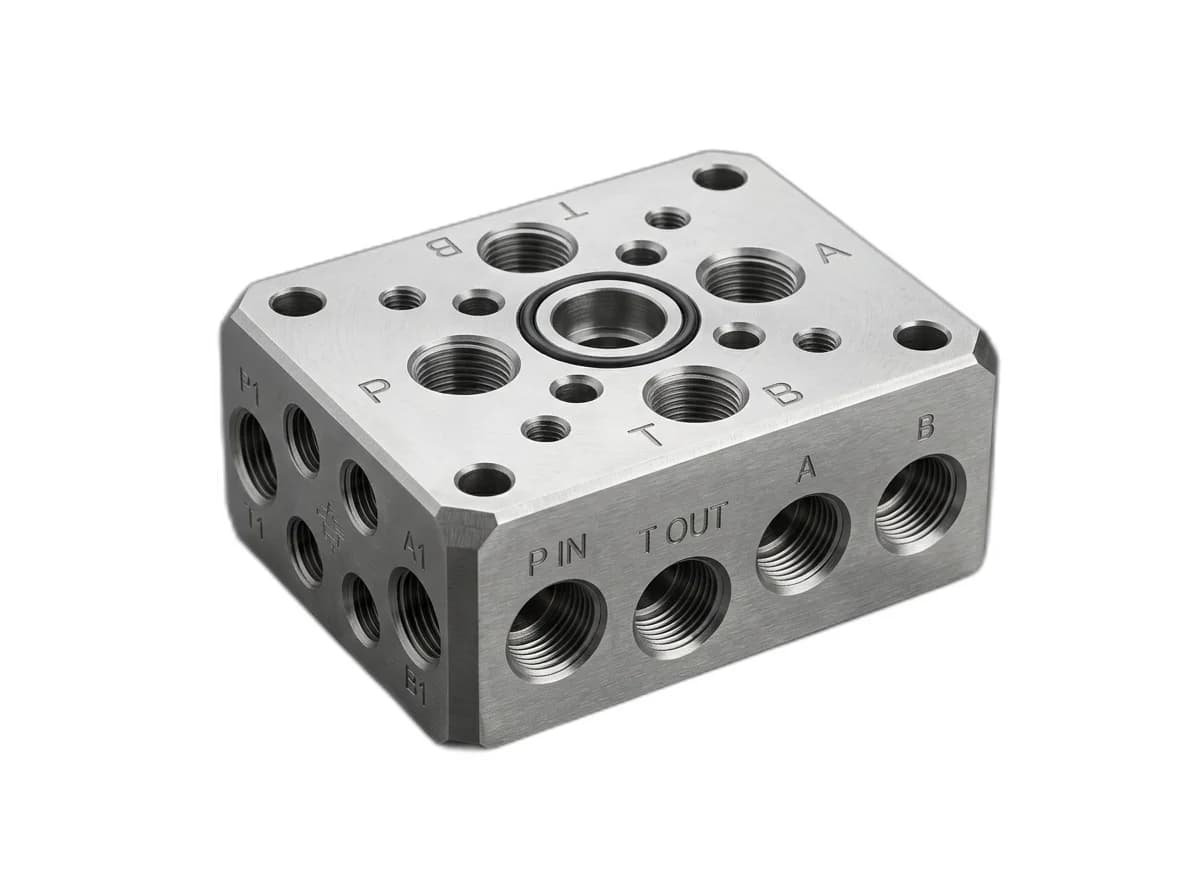

NG10 (06-Size) Manifold Blocks
Precision CETOP 5 (NG10) subplates and multi-station blocks for industrial automation flows up to 120 LPM.

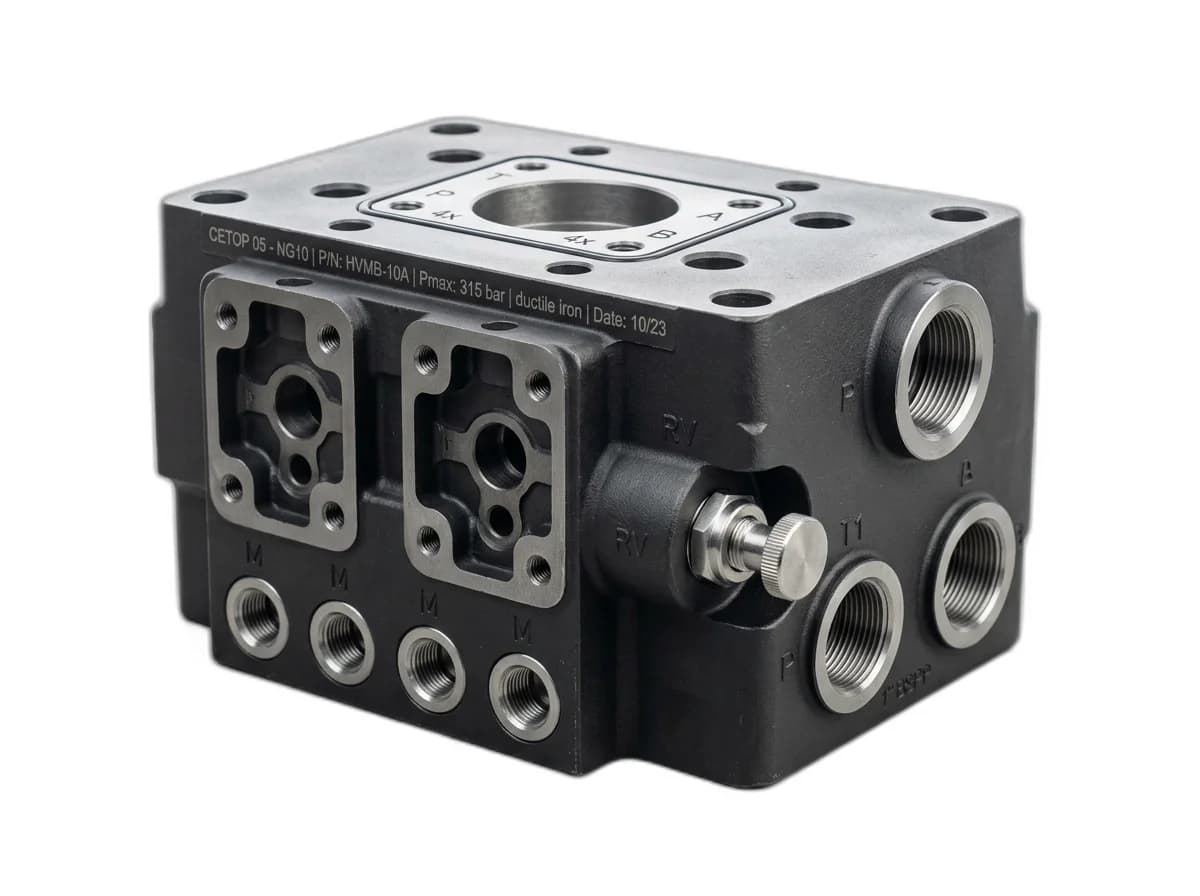

NG16 (10-Size) Manifold Blocks
Heavy-duty CETOP 7 (NG16) manifold blocks designed for high-flow hydraulic systems operating up to 300 LPM.
What is a Hydraulic Manifold Block?
A hydraulic manifold block is the central "brain" of any advanced fluid power circuit. It is a solid block of metal (typically Aluminum or ST52 Carbon Steel) into which complex internal galleries, ports, and cavities have been precisely machined.
Instead of routing hydraulic fluid through dozens of separate hoses, steel pipes, and individual inline valves, a manifold block consolidates all pressure, directional, and flow-control valves into one central hub. The fluid enters the block from the pump, navigates through the internal machined pathways based on the logic of the attached valves (such as solenoid-operated CETOP valves or screw-in logic cartridges), and exits the block directly to the Hydraulic Cylinders or motors.
As a specialized hydraulic manifold block supplier and manufacturer, we cater directly to OEM engineering teams and automation integrators who require absolute precision. A poorly machined manifold will suffer from internal fluid bypass (cross-talk), ruining machine performance. We guarantee h8 tolerances and Ra 0.2 µm surface finishes to ensure absolute zero-leak operation.
Why Manifold Blocks Are Critical
In the past, hydraulic logic was achieved through "plumbing"—connecting separate valves using a chaotic web of steel tubing and fittings. For modern machine builders, this outdated method is unacceptable.
Elimination of Leak Points
Every pipe fitting is a potential leak point. A manifold block eliminates these connections entirely, resolving the number one cause of hydraulic failure: fluid leakage.
Reduced Pressure Drop (ΔP)
Smooth, optimized internal galleries maintain laminar flow, reducing turbulence and pressure drops compared to 90-degree pipe elbows, saving electrical energy at the power pack.
Simplified Maintenance
If a valve fails, a maintenance engineer simply unscrews it from the top of the manifold and replaces it in minutes, without draining the system or dismantling complex pipework.
Zero-Leak Tolerances
We guarantee h8 machining tolerances and Ra 0.2 µm surface finishes within the valve cavities to ensure absolute zero-leak operation and perfect O-ring seating.
100% Hydrostatic Testing
Every manifold block is sealed and pressurized to 1.5x its maximum working pressure to verify the integrity of the internal wall thicknesses before dispatch.
Technical Specifications Framework
| Parameter | Value |
|---|---|
| Material Options | Aluminum (Alloy 6061-T6), Carbon Steel (ST52 / EN8), Ductile Iron, Stainless Steel (SS316) |
| Max Operating Pressure | Aluminum: 210 Bar. Steel/Iron: 350+ Bar. Custom configurations up to 500 Bar. |
| Valve Mounting Standards | ISO 4401 (CETOP 3, 5, 7, 8), SAE Cavities, Sun/HydraForce Cartridge Cavities |
| Port Thread Standards | BSPP, NPT, SAE O-Ring Boss, SAE Code 61/62 Flanges |
| Surface Finish | Zinc Plated, Black Oxidized, Anodized (Aluminum) |
| Testing Protocol | 100% Hydrostatically tested at 1.5x working pressure |
Industries Served
Our custom manifold blocks are the trusted logic centers for heavy industries, delivering precision control where standard piping fails.
Automotive OEM
Providing synchronized, high-speed control for automated robotic welding and assembly lines.
Injection Moulding
Managing the complex logic required for rapid core pulls and high-pressure clamping sequences.
Steel & Metallurgy
Delivering high-pressure, heat-resistant control blocks for heavy forging presses and rolling mills.
The Manufacturing Process (From CAD to CNC)
As a premier manifold block manufacturer in Gujarat, we maintain absolute control over the production process to guarantee zero-leak performance.
- 1Material Selection
We source high-grade Aluminum (for systems up to 210 Bar) and dense, porosity-free ST52 Carbon Steel or Ductile Iron (for systems operating at 315–500 Bar).
- 2CNC Machining
The 3D CAD design is fed into our 5-axis CNC machines. The galleries are deep-hole drilled, and the valve cavities are form-machined to exact ISO/SAE tolerances to ensure O-rings seal perfectly.
- 3Surface Finishing & Deburring
Internal galleries are thoroughly deburred using specialized tooling and high-pressure flushing to ensure no metal chips remain to destroy the hydraulic pump.
- 4Hydrostatic Leak Testing
The final block is sealed and pressurized to 1.5x its maximum working pressure to verify the integrity of the internal wall thicknesses before dispatch.
