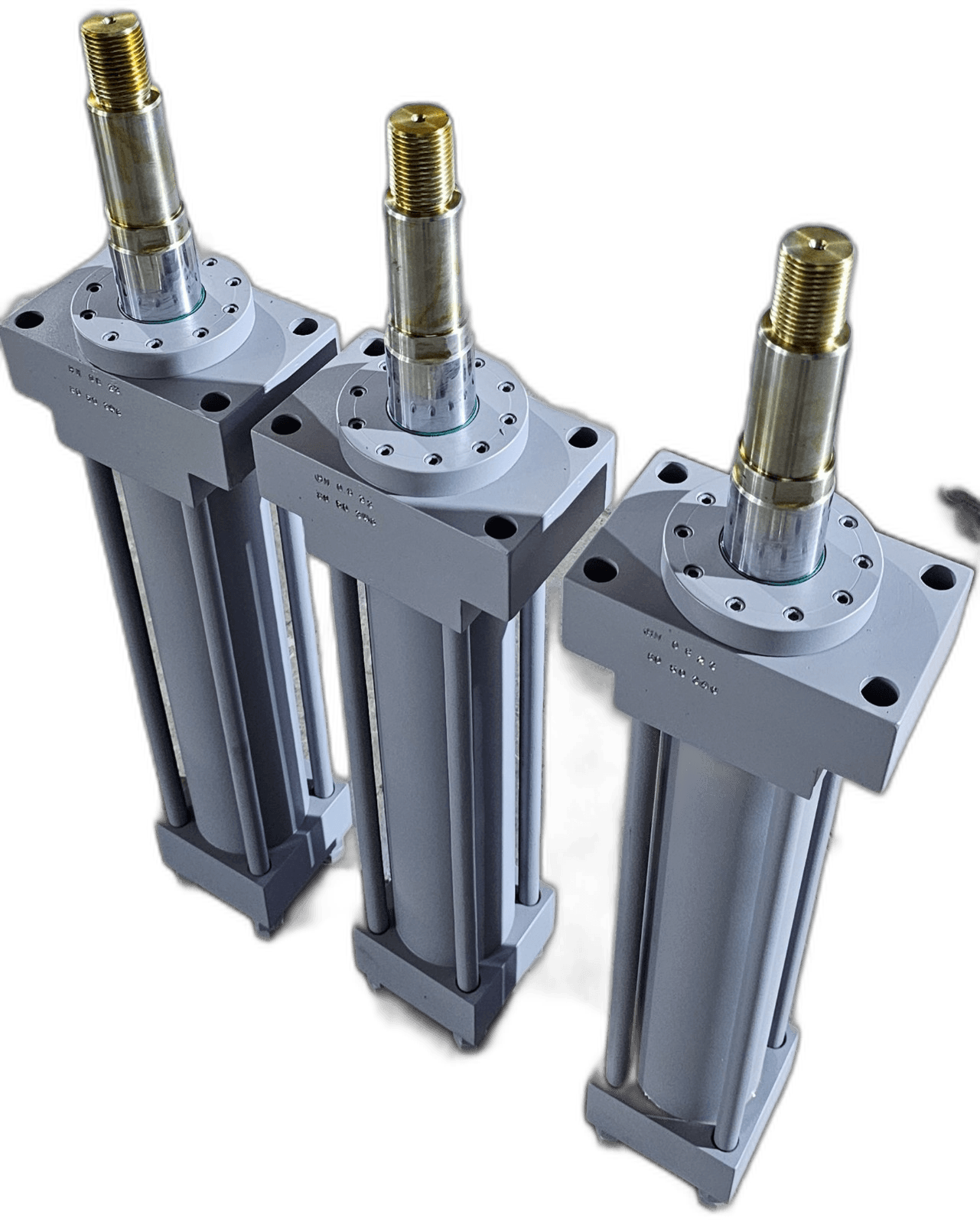

Tie Rod Hydraulic Cylinder Manufacturer
Engineered for absolute precision and rapid field maintenance. Honeywell Hydraulics is a premier tie rod hydraulic cylinder manufacturer in Gujarat, supplying highly standardized, heavy-duty NFPA tie rod cylinders to OEMs, machine builders, and automated factories.
What Are Tie Rod Hydraulic Cylinders?
In the world of industrial linear actuation, the Tie Rod Hydraulic Cylinder is the undisputed standard for automated manufacturing. According to industry reliability studies, implementing standardized tie rod cylinders can reduce maintenance-related downtime by up to 80% compared to custom-welded alternatives in high-cycle environments.
Unlike welded cylinders, which permanently fuse the barrel to the end caps, a tie rod cylinder relies on four or more high-tensile threaded steel rods (the "tie rods") running the entire length of the cylinder exterior. These rods clamp the two end caps tightly against the central steel barrel.
As a leading industrial tie rod cylinder supplier, we manufacture these units specifically for factory environments. Their clamped construction makes them incredibly easy to disassemble, inspect, and rebuild directly on the factory floor without requiring heavy cutting or welding equipment. Furthermore, they are typically manufactured to strict NFPA (National Fluid Power Association) or ISO dimensional standards, allowing machine builders to seamlessly drop our cylinders into existing equipment designs.
Tie Rod Construction Explained
The structural integrity of a tie rod cylinder relies entirely on the precise machining and torquing of its core components.
The End Caps
CNC-machined from solid steel blocks. The head cap and the rear cap feature deep grooves designed to perfectly seat the barrel. These caps house the fluid ports and the crucial rod wiper and gland seals.
The Tie Rods
High-yield-strength alloy steel rods. Torqued to exact mathematical specifications to provide massive clamping force, ensuring the O-ring static seals never blow out under pressure.
The Barrel
Precision-honed ST52 seamless steel tubing. Honed to a mirror-like Ra 0.2 µm finish. Zero heat-induced distortion maintains perfect internal cylindricity.
The Piston & Rod
Internal piston utilizes premium polyurethane U-cups. The hard-chrome plated piston rod transmits mechanical force and resists wear.
Sealing System
Premium low-friction seals designed specifically to minimize heat generation during rapid, continuous-cycle stroking.
Rapid Serviceability
Loosen the tie rod nuts, slide the end cap off, replace the seal, and re-bolt the cylinder together using standard hand tools within 30 minutes.
Technical Specifications
Manufactured to industry standard specifications to ensure interchangeability and reliability across all automated applications.
Standard Capability Range
| Parameter | Value |
|---|---|
| Bore Sizes | 40mm to 250mm (1.5" to 10" NFPA standard) |
| Maximum Operating Pressure | Up to 210 Bar (3000 PSI) |
| Maximum Side Load | Low to Moderate (Susceptible to tie-rod stretch) |
| Operating Speed | Up to 1.0 m/s (High-speed options available) |
| Mounting Standards | NFPA, ISO 6020/2, Custom |
| Tie Rod Material | High-Tensile Alloy Steel (Minimum 100,000 PSI yield) |
| Barrel Material | ST52 Seamless Honed Tube (Ra 0.2 µm finish) |
| Sealing Options | Polyurethane (Standard), Viton (High-Temp), PTFE (Low-Friction) |
| Cushioning | Adjustable internal cushioning available on both head and cap ends |
Tie Rod vs. Welded Cylinders
Understanding when to specify a tie rod cylinder versus a welded cylinder is critical to machine design.
| Feature | Tie Rod Cylinders | Welded Cylinders |
|---|---|---|
| Construction | Bolted exterior rods clamp caps to barrel | End caps permanently welded to the barrel |
| Maximum Pressure | Low to Medium (Typically up to 210 Bar / 3000 PSI) | High to Extreme (Up to 350+ Bar / 5000+ PSI) |
| Serviceability | Extremely High (Disassembled with standard wrenches) | Low (Requires specialized tools or cutting to rebuild) |
| Environment | Clean indoor factories, automated assembly lines | Harsh outdoor, heavy construction, mining |
| Standardization | Highly standardized (NFPA/ISO interchangeable) | Usually highly customized per application |
Industries Served
Our custom tie rod hydraulic cylinders are the standard actuators for continuous manufacturing sectors.
Automotive OEM
Providing high-speed, highly serviceable clamping cylinders for robotic welding stations and assembly lines.
Plastic Processing
Supplying standardized core-pull and ejector cylinders for injection moulding machines.
Machine Tool Builders
Delivering zero-distortion, low-friction actuation for automated CNC loading and unloading gantries.
Packaging & Automation
Engineering rapid-cycle cylinders for high-speed corrugated box manufacturing and palletizing robots.
How to Choose the Right Tie-Rod Hydraulic Cylinder
ADuty Cycle & Cycle Rate
For high-speed automated processes, we specify low-friction PTFE seals and precision-tuned adjustable cushions to prevent end-of-stroke slamming, extending the cylinder life to millions of cycles.
BTemperature Limitations
Standard polyurethane seals operate up to 90°C. For plastic injection molding or steel mills, we upgrade to Fluorocarbon (Viton) seals, allowing continuous operation at 200°C without seal degradation.
CNFPA Mounting Style
Selecting the correct NFPA mount (e.g., MP1 Clevis, MF1 Front Flange, MS2 Side Lug) ensures the cylinder properly absorbs the load without inducing destructive side-loading on the piston rod.
Manufacturing & Quality Process
Every NFPA tie rod cylinder is delivered with a complete dimensional test certificate, verifying that the pin-to-pin lengths and port orientations exactly match your supplied CAD drawings.
Material Verification
All incoming high-tensile steel tie-rods and ST52 honed tubes undergo strict metallurgical inspection and hardness testing prior to CNC machining.
Precision Assembly & Torquing
Tie-rods are systematically tensioned using calibrated pneumatic torque-yield wrenches. This guarantees uniform clamping force across all four corners, preventing asymmetrical seal extrusion.
Automated Functional Testing
100% of tie-rod units undergo automated cycling and 1.5x working pressure hydrostatic testing to guarantee zero internal bypass and perfect cushion engagement.
ISO Dimensional QA
Final inspection utilizes CMM (Coordinate Measuring Machines) to verify that pin-to-pin mounting dimensions perfectly match the requested NFPA or ISO 6020 specifications.
The Honeywell Guarantee
Our heavy-duty tie rod cylinders are backed by a strict Defect Warranty. Should a unit require maintenance, our highly serviceable design allows your technicians to replace seals in minutes.
Project Spotlight: Standardized Tie Rod Cylinders
Automotive Robotic Welding Cell
The Challenge
The Solution
The Outcome
Custom Hydraulic Cylinders
Bespoke actuators engineered for extreme environments and unique mounting requirements.
Welded Hydraulic Cylinders
Robust welded construction for mobile equipment and severe duty cycles.
Double Acting Hydraulic Cylinders
Precision engineered for powered stroke in both directions.
Frequently Asked Questions
Find answers to common questions about our custom hydraulic cylinder manufacturing process and capabilities.
Still have questions?
Our engineering team is ready to discuss your specific hydraulic requirements.
Need NFPA-standard tie rod hydraulic cylinders?
Field-serviceable design with replaceable seals and modular construction. Standard bore sizes ship within 7 working days.
