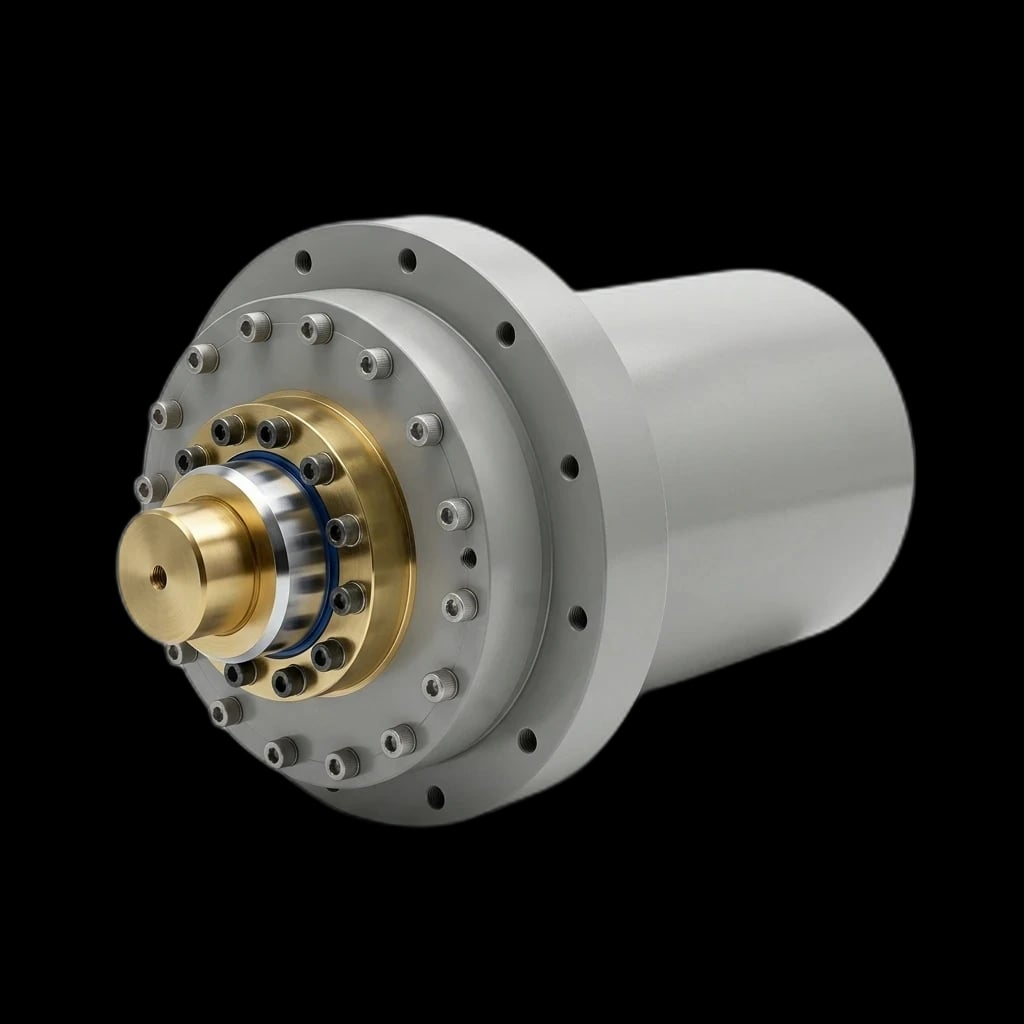

Welded Hydraulic Cylinder Manufacturer
Engineered for extreme environments and uncompromising durability. Honeywell Hydraulics is a premier welded hydraulic cylinder manufacturer in Gujarat, delivering robust, high-tonnage actuators for mobile equipment, construction machinery, and heavy industrial applications.
What Are Welded Hydraulic Cylinders?
When standard industrial cylinders fail under extreme shock loads, machine builders turn to Welded Hydraulic Cylinders.
Unlike Tie Rod Hydraulic Cylinders, which rely on external threaded rods to bolt the assembly together, a welded cylinder is permanently fused into a single structural unit. The rear end cap and the front gland housing are precision-welded directly to the steel barrel.
As a leading heavy-duty welded cylinder supplier, we manufacture these actuators for environments where failure is not an option. Because the external tie rods are completely eliminated, a welded cylinder can fit into incredibly tight spaces on construction equipment and automated machinery. More importantly, the welded construction allows the cylinder barrel to withstand immense internal pressure spikes without the risk of tie-rod stretching or catastrophic seal blowout.
Welded Cylinder Construction Explained
The reliability of a welded cylinder relies entirely on the metallurgical integrity of its fused components.
The Welded Barrel
We utilize heavy-walled ST52 seamless steel tubing. The internal surface is skived and roller-burnished to an Ra 0.2 µm finish. The barrel wall thickness is calculated mathematically to resist bulging or deformation under extreme high-pressure transients.
The End Caps (Base and Head)
The rear base cap is permanently welded to the barrel using advanced rotary friction or sub-arc welding techniques, creating a solid, leak-proof containment vessel. The front head cap (gland) is either welded or threaded securely into the barrel to house the rod seals.
Mounting Interfaces
Because there are no external tie rods obstructing the barrel, welded cylinders allow for incredibly versatile, heavy-duty mounting options. Trunnions, cross-tubes, and clevis mounts are welded directly to the barrel itself, creating a unified structure capable of absorbing massive shear forces.
The Rod Assembly
The hard-chrome plated piston rod transmits the mechanical force to the heavy load. For severe environments like marine engineering or mining, we upgrade the rod material to hardened stainless steel with specialized anti-corrosive epoxy coatings.
The Sealing System
Welded cylinders must survive extreme shock loads. We utilize heavy-duty, 5-piece piston seals, bronze-filled PTFE wear rings, and double-lip rod wipers designed to prevent dust, mud, and metallic rust from contaminating the high-pressure fluid.
Technical Specifications
Our welded cylinders are engineered from the ground up for extreme durability and long-term reliability.
Standard Spec Framework
| Parameter | Value |
|---|---|
| Bore Sizes | 40mm to 400+ mm (Custom large-bore available) |
| Maximum Operating Pressure | Up to 350+ Bar (5000+ PSI) |
| Maximum Side Load | High resilience (welded joints absorb shear) |
| Operating Speed | Up to 0.5 m/s (Standard) |
| Mounting Options | Cross-Tube, Clevis, Trunnion, Flange (Welded directly to barrel) |
| Barrel Material | ST52 / EN8 Seamless Honed Tube (Ra 0.2 µm) |
| Piston Rod Options | Hard Chrome Plated, Stainless Steel, Induction Hardened |
| Sealing System | Heavy-duty 5-piece piston seals, double-lip rod wipers, PTFE wear bands |
| Cushioning Options | Fixed or adjustable (Front/Rear) |
| Exterior Protection | Standard Polyurethane, Marine-Grade Epoxy, Zinc Plating |
Welded vs. Tie Rod Cylinders
Choosing the correct cylinder construction dictates the lifespan of your machinery.
| Engineering Feature | Welded Hydraulic Cylinders | Tie Rod Hydraulic Cylinders |
|---|---|---|
| Construction Method | End caps and mounts permanently welded to barrel | External threaded rods clamp square caps to barrel |
| Maximum Pressure | Extreme (Up to 350+ Bar / 5000+ PSI) | Low to Medium (Up to 210 Bar / 3000 PSI) |
| Shock Load Resistance | Excellent. Fused structure absorbs heavy vibration | Poor. Shock loads can stretch tie rods, causing leaks |
| Physical Profile | Sleek, highly compact footprint | Bulky due to external rods and square caps |
| Environmental Threat | Survives mud, dust, weather, and marine salt | Vulnerable to dirt buildup on external threads |
| Serviceability | Low. Requires specialized tools or machining to rebuild | High. Can be disassembled with standard wrenches |
Industries Served
Our custom welded cylinders are the primary actuators for heavy manufacturing and outdoor sectors:
Steel & Metallurgy
Supplying extreme-pressure, heat-resistant cylinders for rolling mills and automatic gauge control (AGC).
Heavy Forging
Delivering massive, thick-walled pressing cylinders designed to survive brutal metal-stamping shock loads.
Construction Equipment
Engineering rugged, weather-resistant boom, stick, and bucket cylinders for excavators and loaders.
Marine Engineering
Manufacturing corrosion-resistant, high-tensile cylinders for ship-breaking shears and marine winches.
Material Handling
Providing fail-safe, heavy-duty lifting cylinders for multi-ton gantry cranes and goods elevators.
How to Choose the Right Welded Hydraulic Cylinder
APressure Ratings & Wall Thickness
We perform rigorous hoop-stress calculations. If your hydraulic press generates extreme internal pressures, we specify thicker seamless steel tubing for the barrel to guarantee the cylinder will not bulge or burst under maximum tonnage.
BShock Loads & Vibration
In environments like Rajkot's forging industry, the cylinder experiences violent shock when the die hits the metal. We utilize specialized sub-arc welding techniques for the end caps to ensure the welds never crack under high-frequency vibration.
CCorrosion Resistance & Outdoor Operation
For cylinders exposed to mud, rain, or the saline air of Bhavnagar's shipyards, we upgrade the exterior protection. We apply multi-layer marine-grade epoxy coatings, utilize stainless steel piston rods, and install heavy-duty metallic scrapers to physically clear abrasive rust from the rod before it destroys the internal seals.
Manufacturing & Quality Process
Every welded cylinder is delivered with complete material traceability documentation (MTC) and dimensional reports, ensuring the actuator meets all specified OEM tolerances.
Material Selection & Forging
We source high-yield ST52 seamless tubes and 42CrMo4 steel for mounts. Every batch undergoes ultrasonic testing to guarantee zero internal material voids before welding begins.
Automated Sub-Arc Assembly
End caps and mounting blocks are fused using automated rotary sub-arc welding. This ensures 100% continuous weld penetration, eliminating the micro-cracks common in manual welding.
Post-Weld Precision Honing
Because welding induces heat distortion, we re-hone the internal barrel only after all exterior welds are complete, guaranteeing absolute cylindricity and maximizing seal longevity.
Dynamic QA & Stress Testing
Beyond static pressure tests, welded units undergo cyclical shock-load simulations at 1.5x working pressure (up to 525 Bar) to validate the weld sheer strength and seal integrity under extreme stress.
The Honeywell Guarantee
Our welded cylinders are designed for a 10+ year operational lifespan. We provide comprehensive MTC (Material Test Certificates) and hydrostatic test reports with every single unit.
Heavy-Duty Welded Cylinder Retrofit for a Steel Forging Press
Steel Forging OEM — Rajkot, Gujarat
The Challenge
The Solution
The Outcome
Custom Hydraulic Cylinders
Bespoke actuators engineered for extreme environments and unique mounting requirements.
Tie Rod Hydraulic Cylinders
Standard NFPA tie rod cylinders for heavy-duty industrial applications.
Double Acting Hydraulic Cylinders
Precision engineered for powered stroke in both directions.
