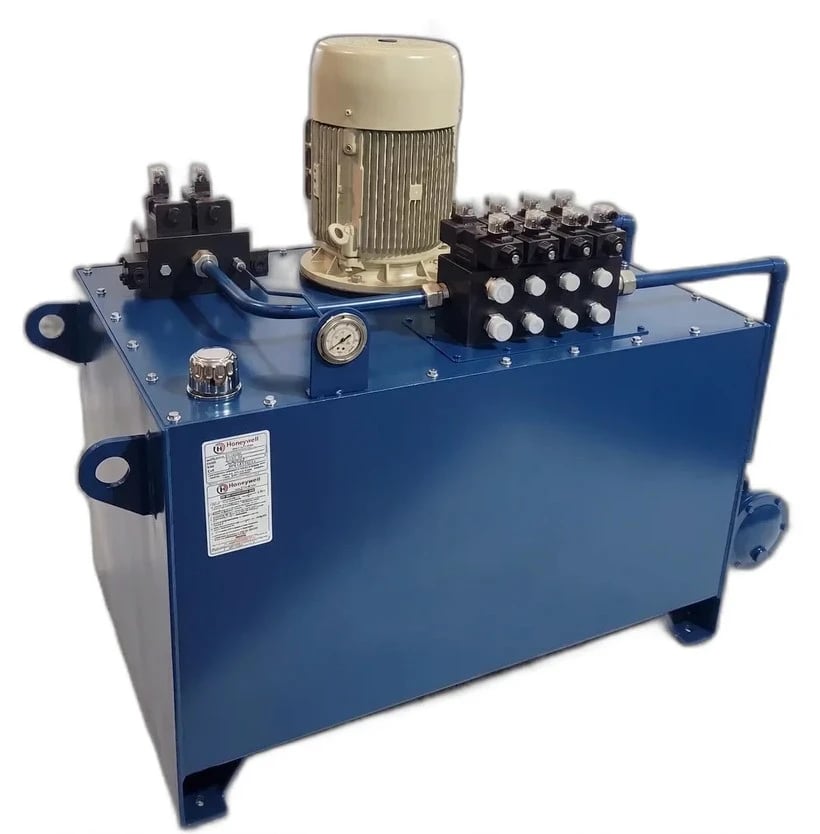

Hydraulic Power Pack for Press Manufacturer
Extreme force generation for industrial forming. As India's premier Hydraulic Power Pack Manufacturer for press applications, Honeywell Hydraulics engineers heavy-duty power units designed exclusively for metal stamping, deep drawing, compression molding, and forging presses. We deliver uncompromising pressure stability, ultra-fast cycle times, and robust heat dissipation for cyclic production environments.
What is a Hydraulic Power Pack for Press?
A Hydraulic Power Pack for Press is a highly specialized fluid power system designed to drive the massive Hydraulic Cylinders found on industrial press machines.
Unlike standard power units designed for simple lifting or continuous spinning, press power packs must endure extreme, violent cyclic loading. A typical press cycle involves rapid approach (high flow/low pressure), sudden impact and forming (low flow/extreme pressure), pressure holding (zero flow/max pressure), and rapid retraction.
To achieve this without destroying the pump or overheating the fluid, we engineer these units with advanced high-low tandem pumps, pilot-operated check valves for leak-free holding, and specialized heavy-duty Hydraulic Manifold Blocks built to withstand continuous hydraulic shock.
Typical Press Configuration Flow
Press systems require unique logic to manage shock and holding pressure. The fluid flow follows:
Engineering Tip
Press applications with high cycle frequency often benefit immensely from properly sized cooling systems and correctly adjusted proportional relief valves. Dumping excess oil over a standard relief valve at high pressure generates massive heat, rapidly degrading oil viscosity and destroying pump seals. Always utilize a high-low pump circuit or unloading valve!
Core Engineering Advantages
Press systems fail catastrophically if built with standard commercial components. Our systems are fortified for industrial shock loads.
Tandem High-Low Pump Circuits
Utilizes a large pump for rapid approach and a small pump for pressing. Unloads the large pump during the curing phase to save massive energy and prevent oil boiling.
Zero-Leak Holding Integrity
Standard valves leak internally. We integrate Pilot-Operated (PO) check valves to mechanically lock the fluid, guaranteeing the press tonnage will not drift during holding.
Mandatory Thermal Dissipation
Rapid cyclic duty forces massive friction heat. We integrate oversized shell-and-tube heat exchangers or forced-air chillers to maintain oil viscosity below 60°C.
Safety Interlock Integration
Dual-monitored safety valves integrated directly into the manifold, allowing instant pressure dumping if a machine light-curtain is breached.
Press Capability Parameters
We engineer absolute tonnage stability across all press variants.
Industrial Forming Specifications
| Parameter | Value |
|---|---|
| Target Applications | Deep Drawing, Compression Molding, Forging, Stamping |
| Operating Pressure | 200 to 350+ Bar |
| Pump Architecture | High-Low Tandem Gear or Variable Displacement Piston |
| Holding Valve Logic | Pilot-Operated (PO) Check Valves / Pre-Fill Valves |
| Manifold Material | Solid forged steel or high-tensile ductile iron |
| Cooling Requirement | Mandatory (Water or Air-Blast depending on cycle rate) |
| Reservoir Baffling | Heavy-duty anti-turbulence baffles for shock-return |
| Safety Protocol | Light-curtain compatible dual-dump safety valves |
Press Power Pack vs. Standard Power Pack
Why deploying a standard power pack on a press machine results in rapid catastrophic failure.
| Feature | Power Pack for Press | Standard Power Pack |
|---|---|---|
| Operating Pressure | Extreme (200 to 350+ Bar) | Moderate (100 to 200 Bar) |
| Duty Cycle | Violent Cyclic (Rapid shock loads) | Steady or Intermittent |
| Heat Generation | Extremely High (Requires cooling) | Low to Moderate |
| Cooling System | Integrated Air-Blast or Water Heat Exchangers | Often uncooled (ambient radiation) |
| Reservoir Baffling | Heavy-duty baffles for shock-return turbulence | Basic baffling |
| Pump Sizing Strategy | Tandem High-Low pumps or Variable Piston | Single fixed displacement gear pump |
| Cycle Speed | Optimized for rapid approach & slow press | Uniform speed |
| Pressure Holding | Zero-leak pilot-operated logic for curing | Standard spool valves (allows minor drift) |
| Energy Consumption | Optimized via unloading valves during pressing | High (dumps full flow over relief) |
| Service Life | Engineered for continuous hydraulic shock | Will fail quickly if placed on a press |
| Maintenance | Rigorous quarterly transducer calibration | Standard visual checks |
| Industrial Suitability | Forging, Deep Drawing, Compression Molding | Scissor lifts, dock levelers, simple pushers |
Press Machinery Utilizing Our Units
Our high-pressure units power India's most demanding industrial forming equipment.
Deep Drawing Presses
Requiring massive holding forces and cushion circuits for precise metal forming.
Compression Molding
Used for rubber and composites, requiring long pressure-holding durations without pump burnout.
Metal Stamping & Forging
Operating in extreme heat environments requiring rapid cycle times and massive shock resistance.
Engineering Guide: Selecting a Press Unit
ATypical Design Inputs (Prerequisites)
Before we design, we require: 1. Press Tonnage (e.g., 200 Ton) 2. Cylinder Dimensions 3. Cycle Frequency (presses per minute) 4. Working Fluid (VG 46 or Fire-Resistant) 5. Ambient Temperature 6. Available Voltage 7. Safety integration needs.
BSelection Checklist
Ensure you have accounted for: Maximum pressing force, required flow (for cycle time), holding pressure duration, return speed requirements (regenerative needs?), cooling requirements (water vs air), and physical installation constraints.
CTonnage and Pressure Calculations
Calculate the area of your cylinder's piston (cm²). Divide the required force (kg) by the area to find required system pressure (Bar). We engineer systems between 200 to 350 Bar to keep cylinder sizes manageable.
DMaintenance Snapshot
DAILY: Check oil level, inspect for manifold leaks, ensure gauge drops to zero when idle. WEEKLY: Inspect high-pressure hoses for abrasion, tighten pump bolts. MONTHLY: Visually inspect oil for water (cloudiness). QUARTERLY: Calibrate transducers, inspect main relief for scoring, clean coolers.
Manufacturing: High-Pressure Expertise
Building a hydraulic power pack for a press requires a standard far above a simple lifting unit. Hydraulic shock generated during a press cycle can literally blow standard fittings apart.
Heavy-Duty Reservoir Fabrication
The sudden return of oil from a massive cylinder creates violent turbulence. We weld extra-thick carbon steel reservoirs with heavy internal baffles to break fluid velocity, release air, and dissipate heat.
Precision Manifold Machining
We completely eliminate standard threaded plumbing wherever possible, utilizing CNC-machined solid steel manifold blocks and SAE flange connections to reduce leak points to zero under 350+ Bar cyclic shock.
Press Simulation FAT
Our Factory Acceptance Testing (FAT) is brutal. We do not just run the pump; we simulate the exact cyclic load of your press machine, dead-heading the system to max pressure for the specified curing duration.
High-Pressure Leak Testing
During the simulated holding phase, we use digital transducers to check for micro-leaks or pressure decay over extended periods, guaranteeing absolute tonnage holding integrity before dispatch.
Building a New Deep Drawing Press?
We supply fully tested, high-low tandem pump systems specifically built for rapid approach and extreme holding pressure.
