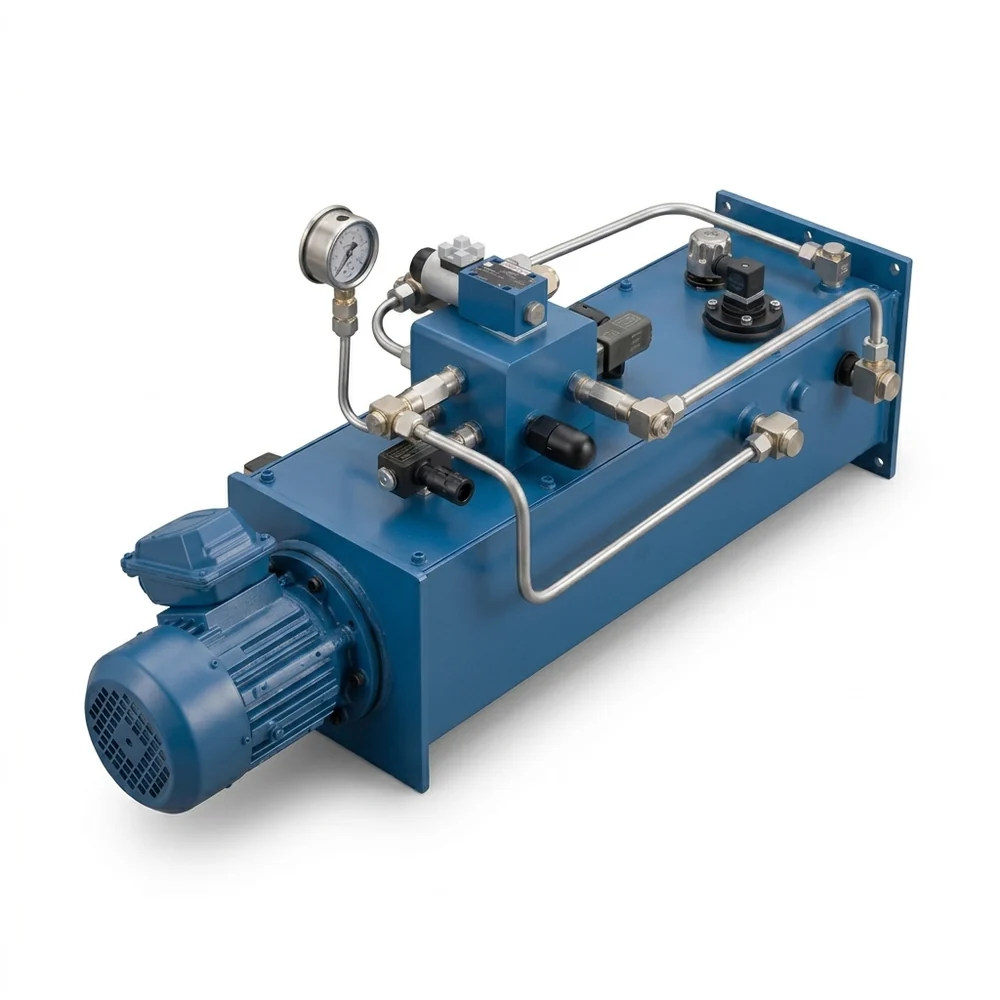

Customized Hydraulic Power Pack Manufacturer
Engineered fluid power for exact application requirements. As India's leading Customized Hydraulic Power Pack Manufacturer, Honeywell Hydraulics designs and builds bespoke power units from the ground up. Whether you require complex multi-actuator synchronization, advanced PLC integration, highly specialized spatial envelopes, or extreme environmental protection, we engineer the hydraulic heart of your OEM machinery.
What Is a Customized Hydraulic Power Pack?
A Customized Hydraulic Power Pack (or Bespoke Hydraulic Power Unit) is an engineered-to-order system designed exclusively to meet the highly specific demands of a unique application.
Unlike standard off-the-shelf units that force machine designers to adapt to rigid constraints, a custom hydraulic system is built in total reverse: we analyze the OEM machine's mechanical requirements first, and then build the fluid power circuit to match it flawlessly.
This requires advanced engineering capabilities, including custom Hydraulic Manifold Block design, specialized motor-pump synchronization, bespoke reservoir fabrication to fit unusual spatial footprints, and fully integrated electrical control panels equipped with PLC automation and sensor arrays.
Typical System Configuration Flow
While every bespoke system differs, a high-level logical flow of a customized circuit typically follows this path:
Engineering Tip
Designing extra valve stations with blanking plates and specifying spare electrical I/O in the control panel during the initial build can significantly reduce future modification costs if the machine's capabilities need to expand.
When Is Customization Required?
Standard units cannot solve complex engineering challenges. Customization becomes mandatory in the following scenarios:
Extreme Space Constraints
Standard rectangular tanks may not fit inside an OEM machine chassis. We design L-shaped, overhead, or highly vertical reservoirs to maximize spatial efficiency.
Complex Multi-Actuator Sequencing
If the machine requires multiple cylinders to actuate in a specific timed sequence, we engineer custom manifold blocks with integrated cartridge valves to achieve precise logic.
Automation & PLC Integration
Modern automated assembly lines require constant feedback. We integrate advanced pressure transducers, digital flow meters, and LVDTs that feed data directly back to a central PLC.
Specialized Environments
Food processing requires stainless steel tanks; marine applications require epoxy-coated reservoirs; high-heat foundries require heavy-duty heat exchangers. We build for the environment.
Custom OEM Engineering Capabilities
We do not assemble parts; we engineer complete solutions. Our bespoke manufacturing capabilities cover the entire fluid power spectrum.
Bespoke Design Parameters
| Parameter | Value |
|---|---|
| Hydraulic Circuitry | Fully bespoke CAD design and logic simulation |
| Manifold Design | CNC machined solid aluminum or ductile iron blocks |
| Reservoir Fabrication | Laser-cut, heavy-gauge steel with custom internal baffling |
| Electrical Automation | Siemens / Allen-Bradley PLC, VFDs, Star-Delta panels |
| Sensor Integration | Transducers, flow meters, IO-Link, PROFINET compatible |
| Thermal Management | Oversized heat exchangers or immersion heaters |
| Validation | Full Factory Acceptance Testing (FAT) under thermal load |
| Documentation | 2D/3D CAD, schematic diagrams, wiring diagrams, complete BOM |
Customized vs. Standard Hydraulic Power Packs
Understanding why complex machinery demands bespoke engineering over catalog solutions.
| Feature | Customized Power Pack | Standard Power Pack |
|---|---|---|
| Design Flexibility | Unlimited; built to exact machine geometry | Rigid; must design machine around the pack |
| Hydraulic Circuitry | Bespoke multi-actuator logic (Custom Manifold) | Simple up/down or basic directional control |
| Automation & PLC | Fully integrated with digital transducers and I/O | Rarely integrated; relies on external logic |
| Space Optimization | Highly optimized (L-shaped, vertical, chassis-mount) | Standard catalog footprint only |
| Reservoir Baffling | Engineered specifically for the flow rate & thermal load | Basic generic baffling |
| Energy Efficiency | Extremely high (VFD and accumulator integration) | Average |
| Initial Cost | Higher (Engineering and CAD time required) | Lower (Pre-engineered) |
| Long-Term ROI | Highest (Prevents downtime, exact OEM fit) | Lower (May require ongoing modifications) |
| Lead Time | 4 to 8 Weeks (Design, Approval, Build, FAT) | Off-the-shelf to 2 Weeks |
| Expandability | Easily designed with spare blanking plates | Highly difficult to add valves later |
| Serviceability | Centralized manifold removes messy plumbing | Cluttered external piping makes service difficult |
| OEM Suitability | The industry standard for serial machine builders | Better suited for one-off repair applications |
Industries Utilizing Custom Units
Custom units are deployed wherever standard systems fail to meet operational demands.
Automated Manufacturing
Robotic assembly lines requiring precise multi-actuator synchronization and PLC integration.
Food & Packaging
Stainless steel units using food-grade oil to drive high-speed packaging machinery.
Special Purpose Machines (SPM)
Custom presses and forming machines built with extreme spatial constraints.
Engineering Guide: How To Design a Custom Unit
1Load, Pressure, and Flow Calculations
Start at the actuator. Calculate the force required to move the load. Determine the bore of the hydraulic cylinder needed to generate that force at an optimal system pressure (150-250 Bar). Once the bore is known, calculate the fluid volume needed for speed (LPM), which dictates pump size.
2Heat Generation & Cooling Strategies
In highly automated circuits, fluid friction generates immense heat. We calculate the thermal rejection rate. If the bespoke reservoir lacks sufficient surface area to dissipate heat naturally, a forced-air oil cooler or chilled-water heat exchanger must be engineered into the return line.
3Selection Checklist (Customer Prerequisites)
Before designing, we require: 1. Required Pressure & Flow 2. Operating Voltage & Duty Cycle 3. Number of Actuators 4. Installation Space dimensions 5. Environmental conditions (IP ratings, temp) 6. Automation feedback requirements (PLC/Sensors) 7. Future expansion needs.
4Maintenance Snapshot
DAILY: Check oil levels, inspect for external leaks, listen for cavitation. WEEKLY: Inspect high-pressure hoses and motor mount fasteners. MONTHLY: Inspect filter restriction indicators and pump alignment. QUARTERLY: Analyze oil particle count, tighten electrical terminals, calibrate transducers.
Complete Custom OEM Integration
Our manufacturing process for bespoke units is a rigorous, multi-stage engineering pipeline designed to guarantee flawless integration with your machinery.
Requirement Analysis & Circuit Design
We review your machine's cycle times, load forces, and spatial limits. We design the raw hydraulic circuit diagram ensuring perfectly sized line velocities and correct actuator speeds.
Custom Manifold Machining
To reduce messy, leak-prone plumbing, we consolidate the valving logic into a single, CNC-machined manifold block. This bespoke "brain" minimizes space and ensures instantaneous valve response.
Reservoir Fabrication
We laser-cut and weld custom reservoirs from heavy-gauge steel, incorporating specific internal baffles to force oil cooling and de-aeration, and custom mounting brackets for your chassis.
Electrical Assembly & FAT
We build bespoke electrical panels pre-wired to the manifold’s sensors. We then run a rigorous Factory Acceptance Test (FAT), simulating your exact load profile to validate thermal stability and logic.
Standardizing Your Serial Machinery?
We act as the dedicated fluid power department for leading OEMs, providing serial production of approved custom designs.
Related Products
Explore our other fluid power units designed for specific industrial applications.
Browse all products →
Three Phase Power Packs
Heavy-duty 415V continuous duty power units for standard industrial manufacturing.
Multistation Power Packs
Centralized power units designed to drive multiple independent hydraulic circuits simultaneously.

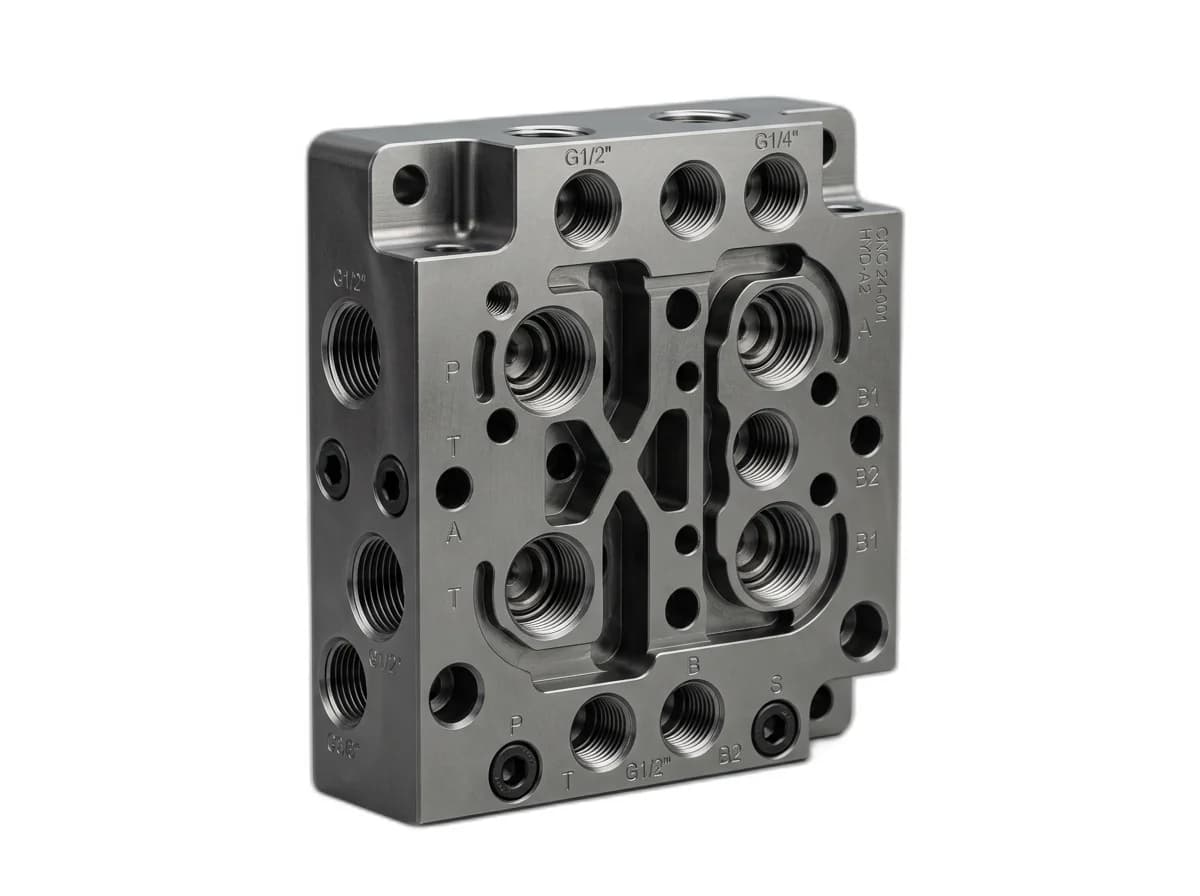

Hydraulic Manifold Blocks
