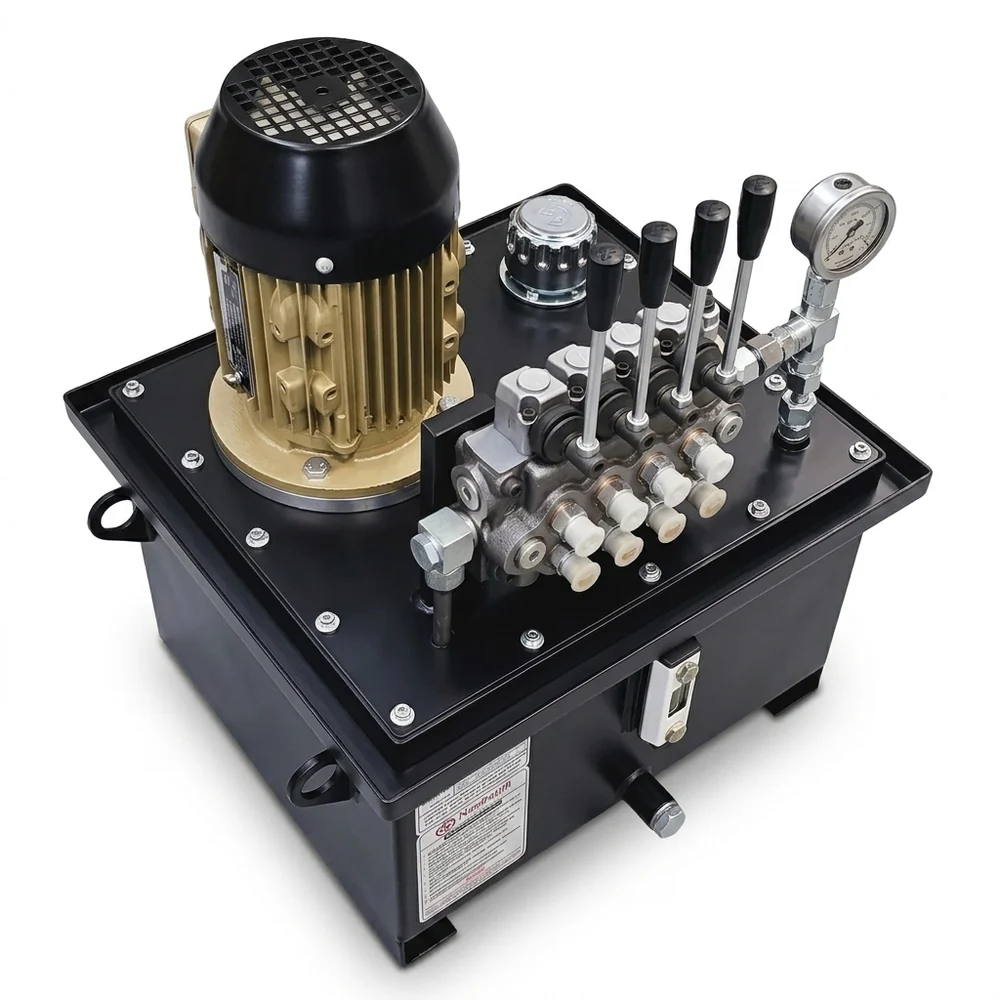

Hand Lever Operated Hydraulic Power Pack Manufacturer
Complete mechanical control. Maximum reliability. As a premier Hand Lever Operated Hydraulic Power Pack Manufacturer, Honeywell Hydraulics engineers rugged manual fluid power systems that completely eliminate the need for complex PLCs and electrical solenoids. Designed for harsh environments, heavy-duty workshops, and field service equipment.
Manual Hydraulic Control Fundamentals
Before discussing the power pack itself, we must understand the core of its operation: the manual directional control valve. While the electric motor still spins the pump to generate fluid flow, the actual control of the Hydraulic Cylinders is purely mechanical. Instead of relying on a computer to send an electrical signal to a magnetic solenoid, an operator physically pulls or pushes a steel lever to direct the oil.
The hand lever is mechanically linked to an internal steel cylinder called a "spool." When the operator pulls the lever, they are physically sliding the spool inside the valve body. This movement uncovers drilled ports, allowing pressurized oil to flow to either the extend or retract port of the cylinder.
By "feathering" the lever (moving it slowly), an experienced operator can precisely control the speed of the cylinder—a highly sought-after feature that is extremely expensive to replicate electronically.
Typical Manual Configuration Flow
How mechanical actuation routes fluid power without electronics:
Engineering Tip
Always position the hand lever valve block within a comfortable ergonomic operating range for the machine operator. However, ensure that the high-pressure hydraulic hoses exiting the valve are physically shielded from the operator's body and protected from accidental abrasive contact during lever actuation.
Core Engineering Advantages
Why choose a manual lever over a modern electrical solenoid? Extreme reliability and physical operator control.
Proportional "Feathering"
Operators can control the exact speed of the cylinder simply by varying how far they pull the lever. Vital for delicate pressing operations.
Immune to Electrical Failure
With no solenoids, coils, or PLCs required for directional control, these systems cannot be shut down by blown fuses or voltage spikes.
Field Serviceability
Mechanically dead-simple. If a manual valve seal degrades, a mechanic can rebuild it in the dirt with standard wrenches.
Spring-Return Safety
Engineered so the lever instantly snaps back to neutral the millisecond the operator releases it, dumping fluid to tank and stopping the machine.
Manual System Parameters
We engineer robust mechanical power units designed to survive the harshest industrial conditions.
Valve & Control Specifications
| Parameter | Value |
|---|---|
| Valve Construction | Cast Iron Monoblock or Sectional Slices |
| Spool Mechanics | Spring-Return to Neutral or Detent-Locking |
| Center Configuration | Open Center (Tandem) or Closed Center |
| Speed Control | Infinite (Manual proportional feathering) |
| Linkage Bearings | Heavy-duty greasable pivot pins |
| Expandability | Sectional valves allow adding extra levers later |
| Safety Interface | Direct physical tactile feedback to operator |
| Environmental Rating | Immune to dust, moisture, and EMI/RFI |
Hand Lever vs. Solenoid Operated Power Pack
Why reverting to mechanical control is often the smartest upgrade for aging industrial machinery.
| Feature | Hand Lever Power Pack | Solenoid Power Pack |
|---|---|---|
| Control Method | Mechanical (Physical pulling of a spool) | Electrical (Magnetic coil shifts spool) |
| Operator Involvement | High (Requires physical presence at valve) | Low (Can be controlled via remote/PLC) |
| Automation Capability | Zero (Cannot be tied to a computer) | High (Easily integrated into SCADA/PLC) |
| Reliability (Harsh Env.) | Extreme (Immune to dust/water/spikes) | Moderate (Solenoid coils can burn out) |
| Maintenance | Very Simple (Wrenches and seals) | Complex (Requires multimeters and wiring) |
| Installation | Simple (Just plug in motor, run hoses) | Complex (Requires electrical control panels) |
| Electrical Dependency | None (For the directional control) | 100% Dependent |
| Initial Cost | Highly Cost-Effective | Expensive (Requires relays, wiring, PLCs) |
| Troubleshooting | Visual (If lever moves, valve shifts) | Invisible (Must test electrical voltage) |
| Response Time | Depends on operator speed | Milliseconds |
| Field Repair | Easy (Can be rebuilt in the dirt) | Difficult (Requires clean electrical parts) |
| Industrial Suitability | Workshops, Ag machinery, Simple presses | CNC machines, Assembly lines, Automation |
Common Manual Applications
Manual power packs are deployed when extreme reliability and direct physical operator control are paramount.
Hydraulic Workshop Presses
Operator can "feel" the pressure and precisely feather the pressing speed during delicate operations.
Agricultural Implements
Rugged, weather-proof operation without relying on fragile electrical sensors or wiring harnesses.
Heavy Machinery Maintenance
Easy field servicing. If a manual valve breaks, a mechanic can fix it with a wrench, no laptop required.
Engineering Guide: Selecting a Hand Lever Unit
ATypical Design Inputs (Prerequisites)
1. Number of cylinders 2. Stroke length & required force 3. Valve functions (simultaneous vs single operation) 4. Lever positions (Spring vs Detent) 5. Operator location.
BSelection Checklist
Verify: Number of valve functions (spools), required operating pressure, flow capacity, operator accessibility, mounting orientation, and safety requirements.
CFeathering vs Bang-Bang
Unlike solenoids that are 100% open or closed, hand levers allow "proportional control." Pulling the lever just a few millimeters moves the cylinder at a crawl for delicate straightening operations.
DMaintenance Snapshot
DAILY: Check for external weeping, lever stiffness. WEEKLY: Grease linkage pivots. MONTHLY: Check filter restriction. QUARTERLY: Test relief valve, inspect spool seals for internal bypassing.
Manufacturing: Mechanical Valve Assembly
Building a manual power pack focuses on mechanical linkage integrity and leak-free valve stacking.
Monoblock vs Sectional Torquing
We assemble either Monoblocks (zero leakage cast iron) or Sectional valves (limitless expansion). We torque sectional assemblies to exact factory specs to prevent spool binding.
Lever Mechanism Linkage
We install heavy-duty steel levers with ergonomic grips, ensuring linkage pivot points are perfectly aligned. We meticulously adjust spring-return mechanisms for instant snap-back.
High-Pressure Hose Routing
We utilize 90-degree swept fittings to direct high-pressure lines away from the operator's hands, ensuring full range of motion without pinching hoses.
Functional Ergonomic FAT
During FAT, we physically actuate every lever under full hydraulic load to verify "handle effort" (force required to shift). Poorly machined spools cause dangerous handle effort under pressure.
Tired of Replacing Solenoids?
Strip the complex electronics off your aging machinery and replace them with a simple Hand Lever Power Pack.
