Single Phase Hydraulic Power Pack Manufacturer
Accessible, reliable fluid power for commercial and light-industrial environments. Honeywell Hydraulics is a premier single phase hydraulic power pack manufacturer in Gujarat, engineering high-efficiency 220V/240V AC power units. Designed for facilities lacking industrial 3-phase grid infrastructure, these systems deliver robust hydraulic force for car lifts, scissor lifts, small balers, and intermittent-duty automation using standard commercial electrical supplies.
What Is A Single Phase Hydraulic Power Pack?
When high-pressure fluid power is required in a commercial garage, a retail loading dock, or a small fabrication shop, standard industrial 415V electrical grids are rarely available.

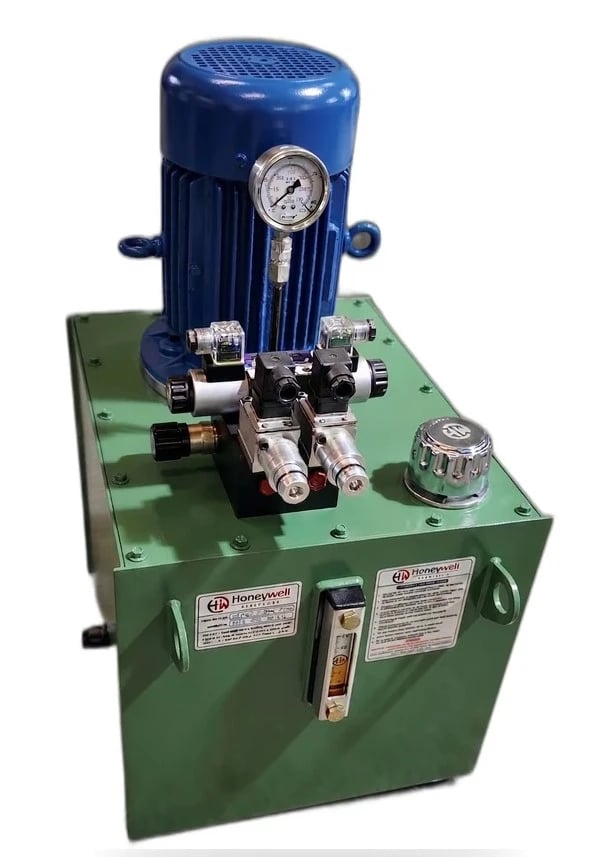

A Single Phase Hydraulic Power Pack is a self-contained fluid generation system designed specifically to operate on standard 220V/240V alternating current (AC). Unlike 3-phase industrial power packs used in continuous heavy manufacturing, single-phase units are engineered for intermittent duty cycles in environments where only standard electrical wall power is accessible.
As a specialized single phase hydraulic power unit supplier, we construct these systems around specialized AC motors featuring run and start capacitors. These components allow the motor to generate sufficient starting torque to rotate the hydraulic gear pump and force oil through the manifold block under load, utilizing only a single electrical phase.
Core Features & Engineering Benefits
The primary engineering challenge of a single-phase hydraulic power unit is generating high hydraulic pressure from a limited electrical source without causing massive amperage spikes or stalling the motor.
High-Torque Start Capacitors
Ensures the pump can overcome heavy static loads (like a loaded car lift) without stalling or requiring a running start, providing a massive, instantaneous surge of electrical energy.
Integrated Unloading Valves
Allows the electric motor to start under zero hydraulic load, drastically reducing the initial amperage spike on the electrical grid and preventing breaker trips.
Compact Vertical Mounting
Saves critical floor space in small commercial garages and tight loading docks. Often mounted directly onto 2-post car lifts or inside tight machine cabinets.
Gravity-Down Valve Logic
Utilizes the weight of the load to retract the cylinder. The electric motor only runs during the lifting phase, effectively cutting energy use in half.
Thermal Protection & Enclosures
Integrated thermal overload switches prevent motor burnout. NEMA / IP54 Enclosures protect sensitive capacitors from shop dust and mild splashing.
Centrifugal Switching
Once the motor reaches 75% speed, a mechanical centrifugal switch disconnects the start capacitor and shifts the load to a run capacitor for continuous rotation.
Technical Specifications Framework
Designed for robust commercial fluid power without the need for 3-phase grid upgrades.
Single Phase Capability Range
| Parameter | Value |
|---|---|
| Electrical Input | 220V / 240V AC (Single Phase, 50Hz/60Hz) |
| Motor Power Ratings | 0.5 HP to 5.0 HP (0.37 kW to 3.7 kW) |
| Pump Architecture | High-efficiency Aluminum Gear Pumps |
| Maximum Operating Pressure | Up to 250 Bar (3600 PSI) |
| Reservoir Capacity | 5 Liters to 40 Liters (Steel or High-Density Plastic) |
| Mounting Orientation | Vertical or Horizontal configurations |
| Duty Cycle Limit | Intermittent (Typically S2-15 min or S3-20%) |
| Filtration | 10 to 25 Micron return line suction strainers |
Single Phase vs. Three Phase Power Packs
Understand the critical differences to select the correct fluid power architecture for your facility.
| Feature | Single Phase (220V) | Three Phase (415V) |
|---|---|---|
| Duty Cycle | Intermittent (Requires cooling periods) | Continuous (100% duty cycle capable) |
| Maximum Horsepower | Practically limited to 5 HP (3.7 kW) | Unlimited (Up to 200+ HP) |
| Amperage Draw (FLA) | High (Significant inrush current at startup) | Low (Distributed across three legs) |
| Motor Complexity | High (Requires start/run capacitors & switches) | Low (Simple induction coils) |
| Torque Delivery | Pulsating | Smooth and constant |
| Typical Environment | Commercial garages, retail docks, small shops | Automated factories, heavy industry, GIDCs |
Industries Served
Providing reliable, daily-use fluid power for environments lacking industrial infrastructure.
Automotive Service & Repair
Powering 2-post lifts, 4-post lifts, tire changers, and motorcycle lifts for independent mechanic garages.
Retail & Supermarkets
Powering the logistical backend of stores, from dock levelers to small balers and waste compactors.
Residential & Accessibility
Driving safe, quiet home elevators and ADA-compliant wheelchair accessibility lifts.
Light Manufacturing
Serving small fabrication shops operating localized stamping or bearing-pressing machines without 3-phase grid access.
Engineering Guide: How To Choose
AWhen to Choose a Single Phase Unit
Specify single phase when you only have access to standard 220V/240V wall power, the application is strictly intermittent (e.g., lifting a car up, holding it for an hour, lowering it), total hydraulic horsepower required is 5 HP or less, and space is limited.
BWhen NOT to Choose Single Phase
Do not use single phase if you need to run the machine continuously for hours (e.g., plastic injection molding), you require massive flow rates exceeding 5 HP, or the application requires perfectly smooth, non-pulsating torque. In these cases, 3-Phase is mandatory.
CCalculating Starting Torque & Breaker Sizing
Ensure your facility uses "motor-rated" slow-blow breakers. Single-phase hydraulic starts can draw up to 3x to 5x their running amperage for a fraction of a second to break the pump's inertia.
Manufacturing: Precision Single Phase Engineering
Building a reliable single-phase power pack requires mitigating the inherent electrical limitations of standard grid power. We do not reuse standard industrial manufacturing flows for these specialized commercial units.
Compact Electrical Integration
Single-phase motors require bulky capacitors and centrifugal switches. We integrate these seamlessly into oversized, weather-sealed terminal boxes mounted directly on the motor housing, protecting sensitive electronics while keeping the footprint compact.
Control Panel Wiring & Starters
Single-phase motors draw massive inrush currents (LRA) upon startup. We assemble custom micro-control panels featuring heavy-duty contactors and thermal overload relays specifically calibrated to handle aggressive amperage spikes.
Laser Motor Balancing
Because single-phase motors naturally produce more vibration, we laser-align the pump shaft to the motor armature and utilize specialized elastomeric couplings to absorb pulsating torque and prevent seal failure.
Pressure & Thermal Validation
100% of our units undergo a pressurized run-in test governed by our strict Quality control. We cycle the unit repeatedly to verify thermal limits, checking that the motor windings and pumps can handle extreme pressure spikes without overheating.
