Accumulator Hydraulic Power Pack Manufacturer
Instant peak flow and relentless pressure stability. As India's leading Accumulator Hydraulic Power Pack Manufacturer, Honeywell Hydraulics engineers advanced fluid power systems integrated with nitrogen-charged accumulators. Designed for applications requiring sudden bursts of extreme flow, prolonged pressure holding without pump engagement, or critical emergency shutdown operations.
Hydraulic Accumulator Fundamentals
Before exploring the power pack, it is critical to understand the physics of the accumulator itself. Because hydraulic fluid (oil) is fundamentally incompressible, it cannot store energy. A Hydraulic Accumulator solves this by utilizing a highly compressible gas—almost universally Nitrogen—to absorb and store hydraulic pressure.
Inside a steel pressure vessel, a flexible bladder separates the nitrogen gas from the oil. When the pump forces oil into the accumulator, the nitrogen gas compresses, storing kinetic energy like a tightly coiled spring. When the machine demands sudden flow, the compressed nitrogen violently expands, instantly pushing the stored oil back into the circuit.

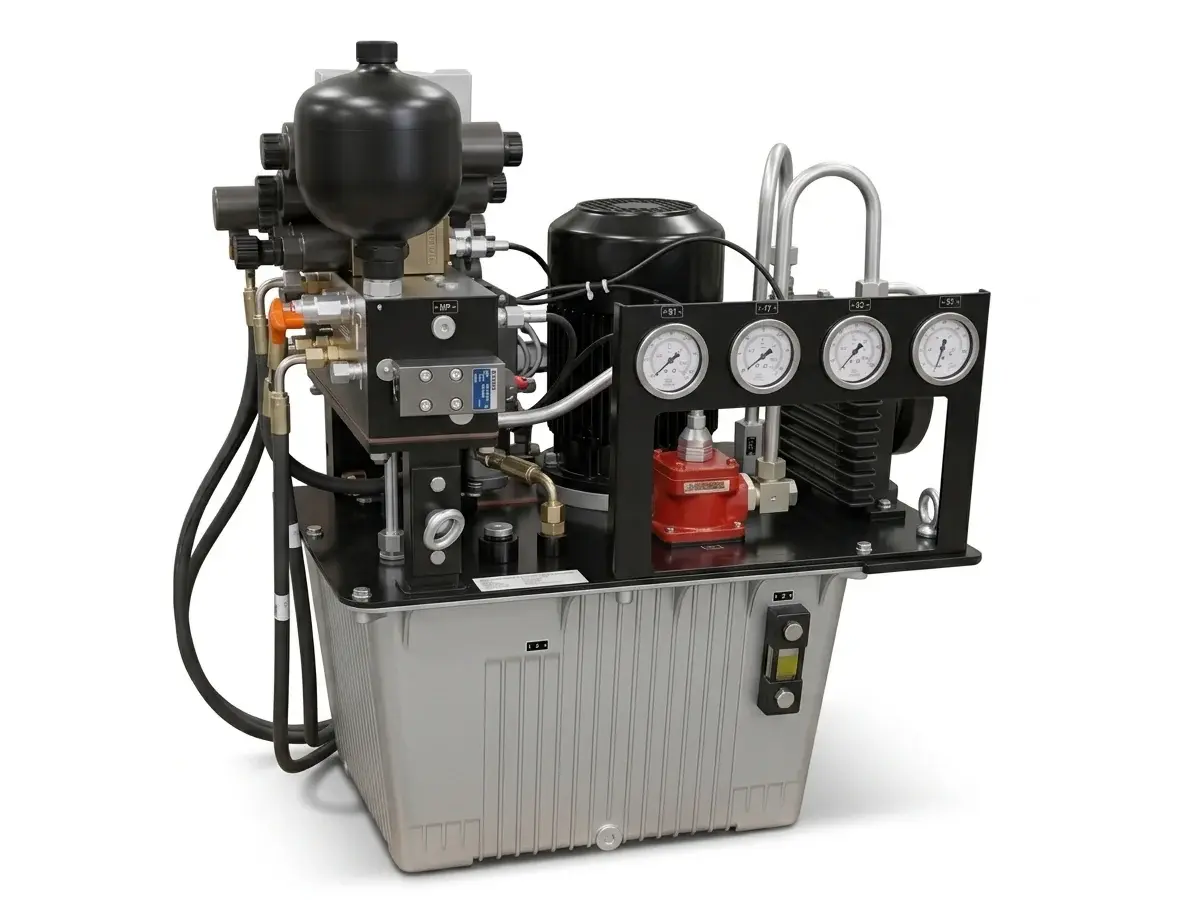

An Accumulator Hydraulic Power Pack integrates these pressure vessels directly into the hydraulic unit's Manifold Block. The pump's primary job becomes "charging" the accumulator during idle times. When sudden, massive flow is demanded, the accumulator discharges instantly, providing flow rates far exceeding the pump's physical capacity.
Typical Accumulator Configuration Flow
To safely store and release massive hydraulic energy, the circuit requires strict safety logic:
Engineering Tip
Nitrogen pre-charge pressure should always be determined strictly according to the intended operating pressure range and ambient temperature. A generic rule is pre-charging to 90% of the minimum working pressure. Incorrect pre-charge completely negates the accumulator's effectiveness and rapidly destroys the internal bladder.
Core Engineering Advantages
Why do OEMs specify an accumulator rather than just buying a bigger pump? Efficiency and speed.
Instant Peak Flow Assistance
Delivers instantaneous flow rates 10x higher than the pump capacity. Perfect for ultra-rapid injection molding or press closing cycles.
Emergency Safety Operation
Stores enough fluid power to safely actuate cylinders and execute emergency shutdowns even if the factory loses all electrical power.
Pump Horsepower Reduction
A 5HP pump can do the work of a 50HP pump by slowly charging the accumulator over 20 seconds for a massive 2-second discharge.
Shock & Pulsation Damping
Absorbs destructive "water hammer" shock waves when massive directional valves slam shut, protecting your pipe fittings from rupturing.
Accumulator System Parameters
We engineer complex stored-energy systems with rigorous safety integrations.
Pressure Vessel Specifications
| Parameter | Value |
|---|---|
| Accumulator Types | Bladder (Rapid response) / Piston (High volume) |
| Gas Charge Medium | 99.9% Pure Dry Nitrogen Gas (Inert) |
| Safety Block Integration | TÜV Certified Auto-Dump & Isolation Valves |
| Pump Sizing Method | Based on average flow, not peak flow |
| Mounting Dynamics | Heavy-duty vibration isolated steel banding |
| Energy Efficiency | Allows pump unloading during pressure holding |
| Emergency Capability | Configurable strokes post power-failure |
| Testing | Cycle discharge FAT & Nitrogen Permeation Testing |
Accumulator vs. Standard Power Pack
Why relying purely on a pump for peak flow wastes massive amounts of electrical energy.
| Feature | Accumulator Power Pack | Standard Power Pack |
|---|---|---|
| Stored Energy | High (Nitrogen gas acts as a spring) | Zero (Fluid cannot be compressed) |
| Pressure Stability | Absolute (Compensates for micro-leaks) | Drops immediately if pump turns off |
| Peak Flow Capability | Massive (Can deliver 10x pump capacity) | Limited strictly to pump's max LPM |
| Emergency Operation | Yes (Can cycle cylinders with power off) | No (Fails instantly on power loss) |
| Energy Efficiency | Extremely High (Pump unloads during holding) | Low (Pump must run constantly) |
| Shock Absorption | Absorbs violent hydraulic hammering | Takes full damage from shock waves |
| Pulsation Damping | Smooths out gear/piston pump ripples | Transfers all vibration to machine |
| Pump Loading | Low (Allows for significantly smaller pumps) | High (Requires oversized pumps) |
| Heat Generation | Very Low (Reduces fluid friction time) | High (Constant flow over relief valves) |
| System Response | Instantaneous (Milliseconds) | Delayed (Pump must build pressure) |
| Maintenance | Requires monthly nitrogen checks | Standard fluid/filter checks |
| Industrial Suitability | Injection Molding, Presses, Safety Systems | Basic continuous-flow applications |
Common Accumulator Applications
Accumulators are deployed when machines demand flow rates that far exceed normal pump capacities.
Hydraulic Presses
Maintains absolute holding pressure for hours without the pump running, preventing oil heating.
Injection Molding
Supplies sudden, massive peak flow for ultra-rapid mold closing, drastically reducing cycle times.
Mobile Hydraulics & Safety
Provides emergency steering or braking operation if the primary engine completely fails.
Engineering Guide: Selecting an Accumulator Unit
ATypical Design Inputs (Prerequisites)
1. Min/Max Operating Pressure Range 2. Peak Flow Requirement 3. Normal Flow Requirement 4. Cycle Frequency (time allowed to recharge) 5. Required Stored Energy (for emergency operation).
BSelection Checklist
Verify: Required system pressure, peak flow demand vs pump capacity, required nitrogen pre-charge pressure, emergency operation needs, and pressure fluctuation limits.
CSizing for Peak Flow Assistance
If a machine requires 100 LPM for 2 seconds, but 10 LPM for 20 seconds, a 100 LPM pump wastes energy. We install a 15 LPM pump to slowly fill an accumulator, which then instantly discharges to meet the 100 LPM demand.
DMaintenance Snapshot
DAILY: Verify main gauge, check for safety block leaks. WEEKLY: Inspect mounting brackets for vibration shifting. MONTHLY: Verify nitrogen pre-charge using a charging kit. QUARTERLY: Rigorously test the automatic dump/safety valve.
Manufacturing: Pressure Vessel Expertise
Integrating high-pressure gas with fluid requires uncompromising manufacturing safety standards.
Isolated Recoil Mounting
When an accumulator discharges, it recoils violently. We fabricate heavy-duty, isolated steel mounting brackets with rubber straps to prevent the vessel from fracturing manifold threads.
Safety Charging Block Installation
We never install an accumulator without a safety block containing an isolation valve and a dump valve, ensuring stored energy bleeds to tank when power shuts off.
Nitrogen Charging & Pre-charge
Prior to FAT, technicians charge the bladder with 99.9% pure Nitrogen using precise charging kits, calculating the exact pressure ratio needed for your specific minimum operating pressure.
Discharge Cycle FAT
We measure the recharge time and the discharge pressure drop using digital oscilloscopes to guarantee the system maintains required pressure during the peak flow event.
Oversizing Your Pumps for Peak Flow?
Stop wasting electrical energy. We engineer accumulator systems that allow tiny pumps to deliver massive momentary power.
