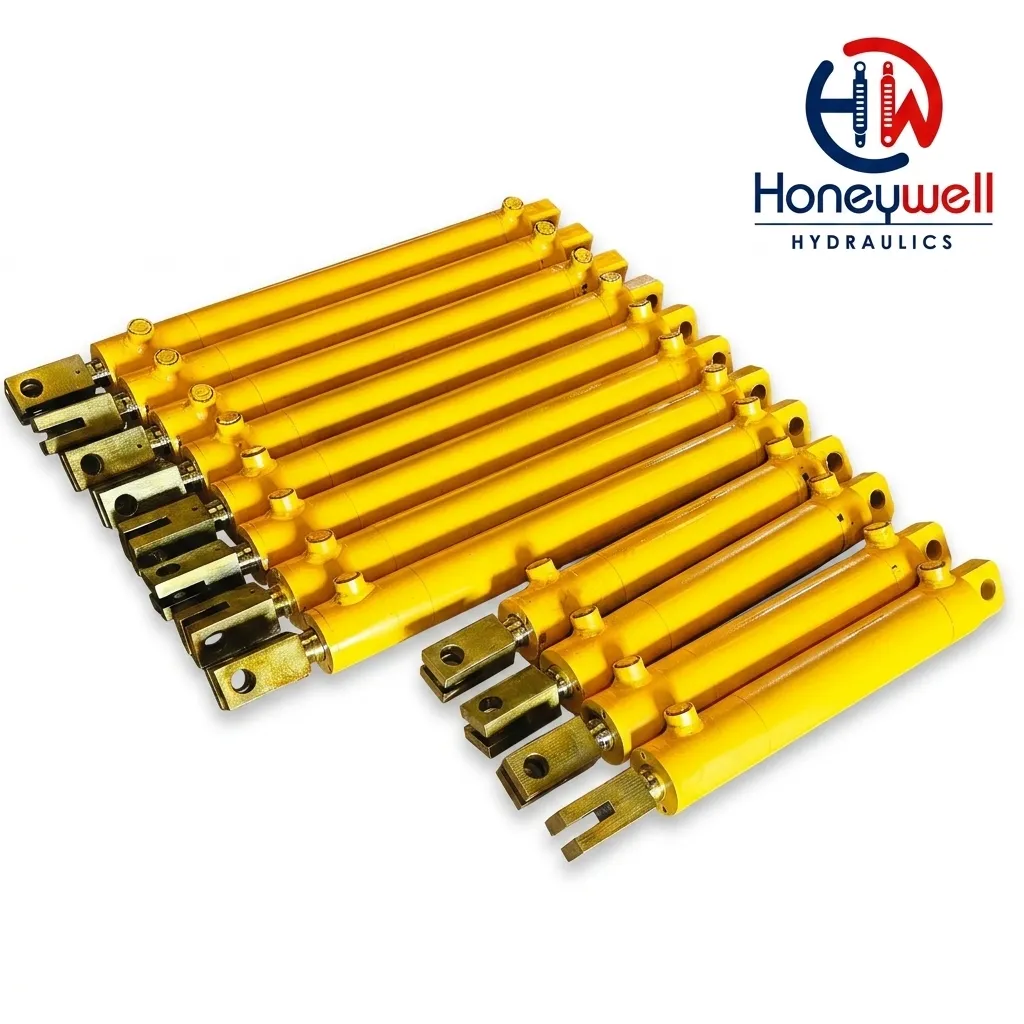

Scissor Lift Table Hydraulic Cylinders
Honeywell Hydraulics designs and manufactures high-performance hydraulic cylinders specifically engineered for scissor lift tables, stackers, and industrial lifting platforms. Built for continuous operation with zero-drift load holding capabilities.
Heavy-Duty Hydraulic Cylinders for Scissor Platforms
Hydraulic cylinders are the primary lifting muscle behind industrial scissor lift tables and warehouse material handling platforms. Operating in these environments requires absolute precision, zero-drift holding capabilities, and smooth, judder-free synchronized motion.
Unlike standard cylinders, scissor lift cylinders face their highest horizontal thrust demands when the platform is fully lowered. We engineer our cylinders with high-yield strength steel tubes, heavy-duty hard-chrome plated rods, and advanced internal valving to ensure they can safely handle these immense starting loads without buckling.
Whether you need a single-acting displacement cylinder for a standard warehouse lift, or a synchronized pair for a massive 100-ton tandem scissor platform, Honeywell Hydraulics delivers customized OEM solutions built for absolute reliability and long service life.
Core Advantages & Safety Features
Our scissor lift cylinders are precision-engineered to handle heavy dynamic loads while maintaining absolute safety and smooth operation.
Smooth & Synchronized Motion
Internal valving and micro-honed finishes ensure judder-free lifting, critical for assembly lines and material handling.
Zero-Drift Load Holding
Advanced sealing technologies prevent internal bypassing, guaranteeing the lift table holds position without drifting under heavy continuous loads.
Heavy-Duty Construction
Manufactured with high-yield strength steel tubes and hard-chrome plated rods to withstand immense horizontal stress during initial lift phases.
OEM Customization
Fully customizable mounting styles, rod ends, and fluid ports to seamlessly drop into existing or new scissor lift equipment designs.
High Load Capacity
Capable of generating immense thrust to safely elevate industrial platforms with payloads up to 500 Tons.
Low Maintenance
Designed with long-lasting wiper seals and wear bands to protect against dust and debris common in warehouse environments.
Technical Specifications
Our scissor lift table cylinders are manufactured using the finest quality materials to meet the rigorous demands of industrial material handling.
Scissor Lift Cylinder Specs
| Parameter | Value |
|---|---|
| Maximum Bore Diameter | Up to 700 mm |
| Maximum Stroke Length | Up to 6000 mm (6 Meters) |
| Maximum Load Capacity | Up to 500 Tons |
| Working Pressure | Up to 500 Bar |
| Rod Material | EN8 / C45 / EN19 (Hard Chrome Plated) |
| Tube Material | Seamless Honed Tube (ST 52) |
| Seal Kits | Parker / Hallite (Zero-leakage) |
| Mounting Options | Trunnion, Clevis, Flange, Custom OEM |
Available Lift Table Configurations
We supply cylinders tailored to all types of industrial scissor lift mechanisms.
Single Scissor Lifts
Standard single-acting displacement cylinders designed for high-thrust, single-level warehouse loading and unloading tables.
- Gravity-return operation
- Highly cost-effective
- Standard lift heights
Multi-Stage / Tandem Lifts
Synchronized hydraulic cylinder sets engineered for high-elevation or extra-long tandem lift platforms.
- Precision synchronization
- Prevents platform tilt
- For extended platforms
Heavy-Duty Industrial Platforms
Large-bore cylinders built to handle massive payloads for aerospace, automotive, and metallurgy sectors.
- Up to 500 Tons capacity
- Extreme thrust force
- Thick-walled ST52 tubes
Applications & Industries
Our scissor lift cylinders are trusted by OEMs and facilities across various demanding industrial sectors.
Warehouse & Logistics
Loading bay platforms, dock levelers, and pallet handling scissor lifts.
Automotive Manufacturing
Vehicle assembly line lifts and ergonomic worker positioning tables.
Industrial Facilities
Maintenance platforms, heavy machinery lifting, and material transfer stations.
Engineering Considerations for Scissor Lifts
ALeveraged Load Calculation
Unlike direct-acting lifts, a scissor lift cylinder must push horizontally to force the scissor arms apart and lift vertically. When the table is fully collapsed (flat), the required thrust force can be 5x to 10x the actual payload weight. We calculate exact bore sizes based on your scissor geometry to ensure sufficient breakaway force.
BTrunnion Placement & Strength
Scissor lift cylinders pivot during extension. We engineer high-strength cross-tube trunnions or heavy-duty clevis mounts specifically welded to handle the extreme shear stress generated during the initial lift phase.
CStroke-to-Lift Ratio
A small cylinder stroke translates to a massive vertical lift due to the scissor leverage. This amplifies any jitter or stick-slip in the cylinder. We utilize micro-honed barrels and low-friction seals to guarantee smooth elevation of the platform.
Honeywell Manufacturing Excellence
Located in Ahmedabad, Gujarat, our state-of-the-art facility strictly adheres to international manufacturing standards. Every scissor lift cylinder undergoes rigorous pressure testing to guarantee absolute reliability under maximum payload before dispatch.
Heavy-Wall Barrel Sourcing
Because scissor lift cylinders experience extreme internal pressure spikes during the initial flat-lift phase, we utilize ultra-thick ST52 seamless tubes specifically selected to prevent barrel ballooning.
High-Shear Trunnion Welding
Mounting trunnions and clevises are robotically welded with deep penetration techniques to ensure they can withstand the immense shear forces of lifting a collapsed scissor mechanism.
Polyurethane Seal Fitting
We install heavy-duty Polyurethane U-cups and rigid wear bands designed to handle high-pressure spikes and slight side-loading as the cylinder pivots through its arc.
High-Pressure Burst Testing
To simulate the extreme breakaway force required to lift a fully loaded, completely collapsed scissor table, every cylinder undergoes a rigorous peak-pressure hydrostatic test before dispatch.
Need Cylinders for Your Scissor Lifts?
Our engineers can design and manufacture cylinders in volume based on your specific platform size and lifting height requirements.
Heavy-Duty Synchronized Cylinders for an Automotive Assembly Line
Vehicle Manufacturing Plant — Pune, Maharashtra
The Challenge
The Engineering
The Outcome
Related Products
Explore our other hydraulic cylinders and power units designed for industrial material handling.
Browse all products →
Goods Lift Hydraulic Cylinders
Heavy-duty cylinders with integrated safety rupture valves for industrial freight elevators.
Double Acting Hydraulic Cylinders
Versatile cylinders providing powered force in both extension and retraction strokes.

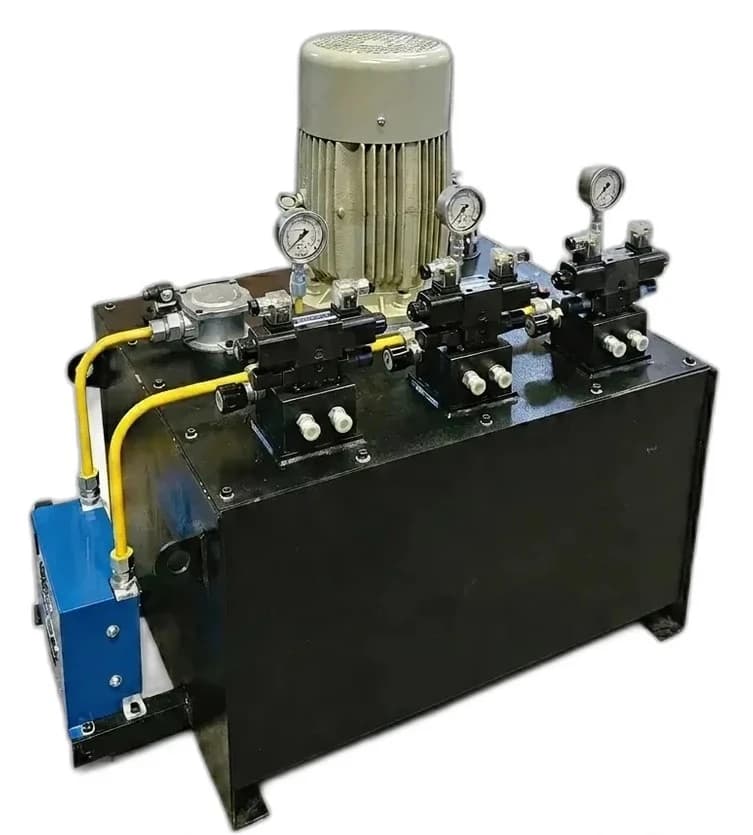

Hydraulic Power Packs
