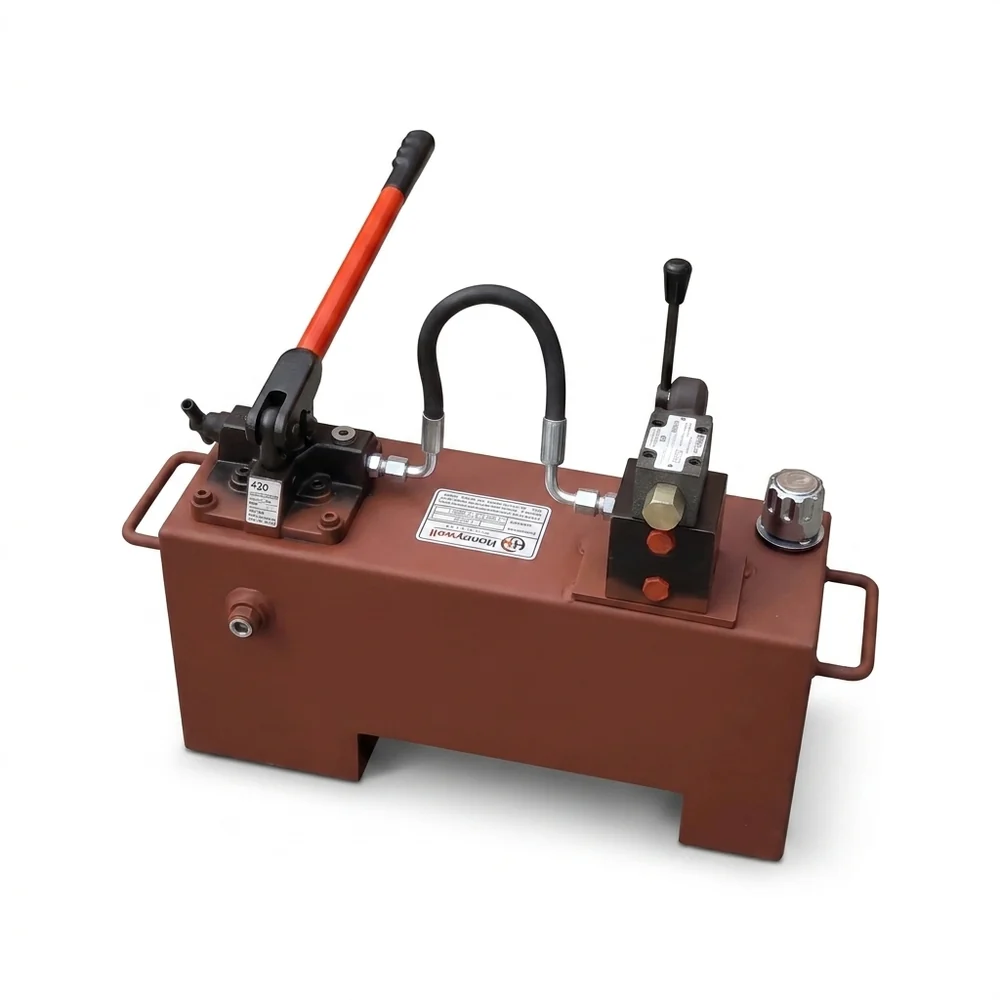

Hand Pump Operated Hydraulic Power Pack Manufacturer
Extreme high pressure. Zero electricity. As a specialized Hand Pump Operated Hydraulic Power Pack Manufacturer, Honeywell Hydraulics engineers fully portable, purely mechanical fluid power systems. Designed for remote field service, emergency rescue operations, and hazardous environments where electrical power is unavailable or strictly prohibited.
Manual Hydraulic Pump Fundamentals
Unlike standard units that utilize an electric motor spinning a gear pump, a hand pump unit generates flow and pressure strictly through the physical movement of a steel lever (the pump handle). Because the operator acts as both the "motor" and the "pump," these units operate completely independently of any electrical or diesel power source.
At the core of the unit is a precision-machined steel cylinder (the pump body) and a moving plunger (the piston). On the upstroke, the piston creates a vacuum, opening the Inlet Check Valve and pulling oil from the reservoir. On the downstroke, the Inlet Valve snaps shut, the Outlet Check Valve opens, and pressurized oil is driven into the Hydraulic Cylinder.
By utilizing a very small diameter pump piston and a long mechanical handle, an operator exerting only 30 kg of physical force can easily generate over 700 Bar (10,000 PSI) of hydraulic pressure.
Typical Hand Pumping Configuration Flow
How repeated mechanical strokes build massive hydraulic pressure:
Engineering Tip
Excessively large pump displacement reduces the number of handle strokes required but significantly increases the physical force needed at the handle as pressure rises. Always select a displacement that carefully balances operator effort with productivity, or opt for a "two-stage" pump design.
Core Engineering Advantages
Why do technicians choose a manual pump over an electric one? Unfailing reliability and absolute portability.
Zero Electrical Dependency
No batteries to charge, no extension cords to run, and no three-phase drops required. Functions perfectly in the middle of a remote field.
Infinite Pressure Holding
Perfectly seated check valves allow the pump to hold a cylinder at maximum pressure for days or weeks without generating heat.
Extreme Pressure Generation
Through hydraulic leverage, a single human can generate over 700 to 1500 Bar (10,000 - 20,000 PSI) for bolt tensioning or heavy jacking.
Two-Stage Efficiency Options
Available with two-stage pistons that automatically shift from high-flow (fast extension) to high-pressure (heavy lifting) to reduce fatigue.
Hand Pump System Parameters
We engineer precision-machined mechanical pumps built to survive drop-shocks and extreme environments.
Pump & Cylinder Specifications
| Parameter | Value |
|---|---|
| Pump Action | Single-Acting (Downstroke only) or Double-Acting |
| Pressure Stages | Single-Stage or Automatic Two-Stage |
| Max Operating Pressure | Up to 700 Bar / 10,000 PSI (Custom 1500 Bar available) |
| Check Valve Seating | Hardened steel ball, mechanically coined for zero leakage |
| Reservoir Material | Heavy-duty Aluminum or Welded Steel |
| Release Mechanism | Fine-thread needle valve for slow, controlled lowering |
| Safety Overload | Internal factory-set pressure relief valve |
| Portability | Integrated carrying handles, lightweight footprint |
Hand Pump vs. Electric Power Pack
Why sacrificing speed for total electrical independence is often required in the field.
| Feature | Hand Pump Power Pack | Electric Power Pack |
|---|---|---|
| Power Source | Human Mechanical Effort | Electrical (1 Phase or 3 Phase) |
| Pressure Generation | Extremely High (Easily 700 - 1000 Bar) | Typically limited to 250 - 350 Bar |
| Flow Rate | Very Low (Depends on operator speed) | High (Continuous liters per minute) |
| Portability | Extreme (Can be carried in one hand) | Low to Moderate (Requires forklift) |
| Operating Effort | High Physical Fatigue | Zero Physical Fatigue |
| Installation | Zero (Connect hose and pump) | Requires wiring and heavy panels |
| Maintenance | Minimal (Seals and check valves) | Moderate (Motor bearings, filters) |
| Emergency Operation | 100% Reliable without factory power | Fails instantly on power loss |
| Initial Cost | Extremely Cost-Effective | Higher capital investment |
| Energy Consumption | Zero Electricity Required | Draws continuous amperage |
| Duty Cycle | Intermittent (Limited by human endurance) | Continuous (100% duty cycle available) |
| Industrial Suitability | Field repair, bolt tensioning, rescue | Automated assembly lines, pressing |
Common Manual Pump Applications
Hand pumps are the undisputed choice for ultra-high pressure applications in remote environments.
Hydraulic Bolt Tensioning
Generates ultra-high pressure (up to 1500 Bar) in confined spaces with pinpoint manual accuracy.
Hydraulic Jacks (Heavy Lifting)
Requires absolutely no electrical power; perfect for remote bridge lifting or construction sites.
Rescue Equipment (Jaws of Life)
Guaranteed emergency operation in remote locations where generators or batteries fail.
Engineering Guide: Selecting a Hand Pump Unit
ATypical Design Inputs (Prerequisites)
1. Cylinder bore & stroke 2. Required tonnage/pressure 3. Operating frequency 4. Portable vs fixed mounting 5. Ambient environment (corrosion risk).
BSelection Checklist
Verify: Oil displacement per stroke (cc), required physical operator effort (kg force on handle), total reservoir capacity vs cylinder volume, and safety requirements.
CUsable Oil Capacity
The reservoir must hold enough oil to fully extend the cylinder PLUS a safety margin. If you operate a large bore cylinder, a tiny 1-liter portable hand pump will run dry before it extends halfway.
DMaintenance Snapshot
DAILY: Check oil level, check handle binding. WEEKLY: Grease pivot pins. MONTHLY: Inspect inlet/outlet check balls for debris. QUARTERLY: Dead-head test to verify holding pressure.
Manufacturing: Precision Pump Assembly
Building a manual pump that holds 10,000 PSI without leaking requires extreme machining tolerances.
Precision Piston Machining
The core is a steel or high-strength aluminum body. We CNC machine the internal piston bore to micron-level tolerances. If the gap is too large, high-pressure oil simply bypasses the seal during the downstroke.
Check Valve Coining
A hand pump relies entirely on two tiny steel balls. We mechanically "coin" (impact) the hardened steel balls into their seats, creating a perfect metal-to-metal seal with zero leakage.
Handle Mechanism Fitting
The handle linkage endures massive mechanical stress. We utilize hardened steel pivot pins and heavy-duty linkages to prevent the holes from ovalizing over thousands of pumping cycles.
Dead-Head Pressure FAT
During FAT, we pump the unit to its maximum rated pressure against a blocked port ("dead-heading") and leave it. It must hold pressure for a specified duration without the gauge needle dropping.
Need Portable High Pressure?
We manufacture hand pumps for OEM heavy lifting, bolt tensioning, and emergency rescue equipment.
