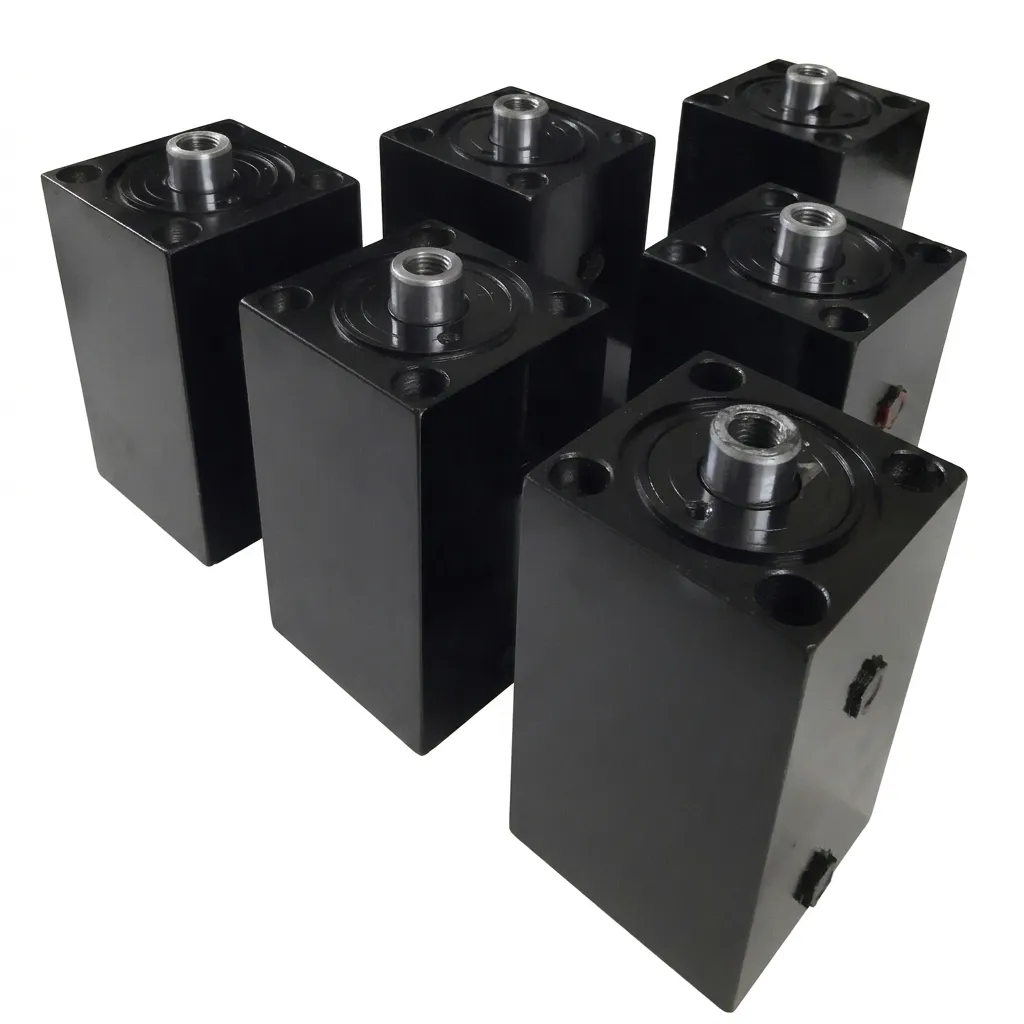

Square Body Hydraulic Cylinders
Honeywell Hydraulics manufactures heavy-duty square body hydraulic cylinders designed for severe industrial applications where space is limited but high structural rigidity is required. Engineered with a robust welded square profile, these cylinders offer exceptional strength and precise mounting alignment for machine tools, steel plants, and industrial automation.
Engineered for Maximum Strength in Minimal Space
In complex industrial machinery and high-pressure manufacturing environments, standard round-body cylinders often present challenges for secure mounting and space optimization. Square body hydraulic cylinders resolve these issues through their inherent geometric advantages. The flat surfaces of the square profile allow for extremely rigid, flush mounting directly against machine frames without the need for bulky external brackets or flanges.
The thick-walled square construction acts as a built-in structural reinforcement. This design drastically increases the cylinder's overall rigidity and resistance to lateral deflection and twisting forces. Furthermore, the square profile enables a cleaner, more compact integration into tight spaces, making them the preferred choice for modern CNC machine tools, specialized hydraulic presses, and advanced material handling automation.
At Honeywell Hydraulics, we manufacture custom square body cylinders tailored to the most demanding industrial specifications. Utilizing deep-penetration welding techniques and precision boring, we deliver leak-proof, heavy-duty actuation solutions that provide reliable, long-lasting performance in steel mills, automotive manufacturing plants, and heavy fabrication facilities.
Core Advantages & Design Features
Our square body cylinders are engineered to provide maximum rigidity and durability in compact heavy-duty applications.
Compact Installation
The flat square profile allows for flush, low-profile mounting directly against machinery frames, saving critical space.
High Structural Rigidity
The thick-walled square construction provides superior resistance to lateral bending and torsional twisting forces.
Heavy-Duty Welded Design
Manufactured with automated deep-penetration welding to ensure absolute structural integrity under extreme pressure.
Precision Alignment
Flat mounting surfaces simplify installation and ensure precise linear alignment, reducing rod seal wear.
Versatile Mounting
Supports various mounting styles including direct body tapping, through-holes, and custom integrated flanges.
OEM Customization
Fully customizable bore sizes, strokes, and port orientations to integrate perfectly into specialized machinery.
Technical Specifications
Our square body cylinders are built using premium materials to endure the harsh realities of heavy industrial applications.
Square Body Cylinder Specs
| Parameter | Value |
|---|---|
| Bore Diameter | 40 mm to 500 mm |
| Stroke Length | Up to 4000 mm (Customizable) |
| Working Pressure | Up to 350 Bar |
| Testing Pressure | 1.5x Working Pressure |
| Mounting Options | Direct Tapped, Through-Hole, Integrated Flange |
| Body Construction | Heavy-duty welded square steel profile |
| Tube Material | ST52 Seamless Honed Tube (H8 Tolerance) |
| Piston Rod | EN8 / C45 / EN19 (Hard Chrome Plated) |
| Seal Kits | Polyurethane & PTFE (Parker / Hallite) |
| Surface Finish | Anti-corrosive epoxy or polyurethane coating |
Available Mounting Configurations
The square body design allows for highly versatile and rigid mounting directly to machine frames.
Direct Tapped Body Mount
The flat surfaces of the square body are precision-tapped with threaded holes. This allows the cylinder to be bolted directly against a machine plate without any external brackets.
- Most compact installation
- Extremely rigid connection
- Clean, bracket-free design
Through-Hole Body Mount
Unthreaded clearance holes are drilled straight through the solid square body, allowing long mounting bolts to pass completely through the cylinder and secure it to the frame.
- High tensile securing
- Easy bolt-through installation
- Excellent load distribution
Integrated Flange Mount
A custom mounting flange is welded directly onto the square body (front or rear), combining the structural benefits of the square profile with traditional flange mounting.
- Maximum straight-line force
- Replaces legacy flange cylinders
- Superior push/pull stability
Square Body vs. Tie-Rod Cylinders
Understanding when to utilize a square profile instead of a traditional NFPA tie-rod design.
| Engineering Feature | Square Body Cylinders | Tie-Rod Cylinders |
|---|---|---|
| Space Profile | Ultra-Compact (No protruding bolts) | Bulky (Tie-rods extend past the barrel) |
| Mounting Style | Flush against machine plates | Requires external brackets or extended tie-rods |
| Cleanliness | Excellent (Smooth flat sides, no debris traps) | Poor (Dirt accumulates on external tie-rods) |
| Port Integration | Internal cross-drilling (No hoses needed) | Standard threaded ports only |
Applications & Industries
Square body cylinders are essential for heavy industrial machinery that requires compact, high-force actuation.
Machine Tools
Clamping, positioning, and actuation in advanced CNC machining centers.
Steel Plants
Heavy-duty actuation for rolling mills, shears, and continuous casting equipment.
Industrial Automation
High-speed, high-precision actuation for specialized manufacturing assembly lines.
Hydraulic Presses
Specialized pressing mechanisms requiring extremely rigid, flush-mounted cylinders.
Engineering Considerations for Square Bodies
AManifold / Hose-less Mounting
One of the primary engineering advantages of a square body is the ability to cross-drill hydraulic ports directly through the flat mounting face. By matching these ports to O-rings on your machine chassis, the cylinder can be powered without any external hydraulic hoses, completely eliminating hose-failure risks.
BTooling & Space Constraints
In specialized injection molding core-pulls or tightly packed progressive stamping dies, there simply isn't room for standard cylinder flanges or protruding tie-rods. A square body cylinder maximizes the bore size (and thus thrust force) within an absolute minimum physical envelope.
CRigid Side-Load Resistance
Because the flat side of the square body can be bolted directly flush against a steel machine plate, the cylinder becomes structurally integrated with the machine frame. This provides exceptional resistance to vibration and slight side-loading compared to pivoting mounts.
Honeywell Manufacturing Excellence
Our advanced manufacturing facility in Ahmedabad guarantees that every square body cylinder is built to endure brutal industrial environments. We focus heavily on weld integrity and bore concentricity.
Solid Block Milling
Unlike standard cylinders made from round tubing, square bodies are often CNC milled from solid high-tensile steel blocks, ensuring maximum structural rigidity and perfectly flat mounting faces.
Internal Bore Honing
Once the square exterior is established, the internal bore is deep-hole drilled and micro-honed to an H8 tolerance, ensuring perfect roundness despite the square external geometry.
Cross-Drilled Porting
Advanced 5-axis CNC machining is used to drill complex internal hydraulic pathways, allowing fluid to enter from the flat mounting face rather than standard threaded side-ports.
High-Frequency Cycle Testing
Square body cylinders are frequently used in rapid automation. We subject them to high-frequency cycle testing to ensure the seals and internal porting can handle rapid pressure spikes without fatigue.
Need Custom Square Body Cylinders for Your Machinery?
Our engineers can design and manufacture cylinders based on your specific space constraints, mounting hole patterns, and stroke lengths.
Space-Saving Actuation for a High-Speed CNC Machining Center
Machine Tool OEM — Gujarat, India
The Challenge
The Engineering
The Outcome
