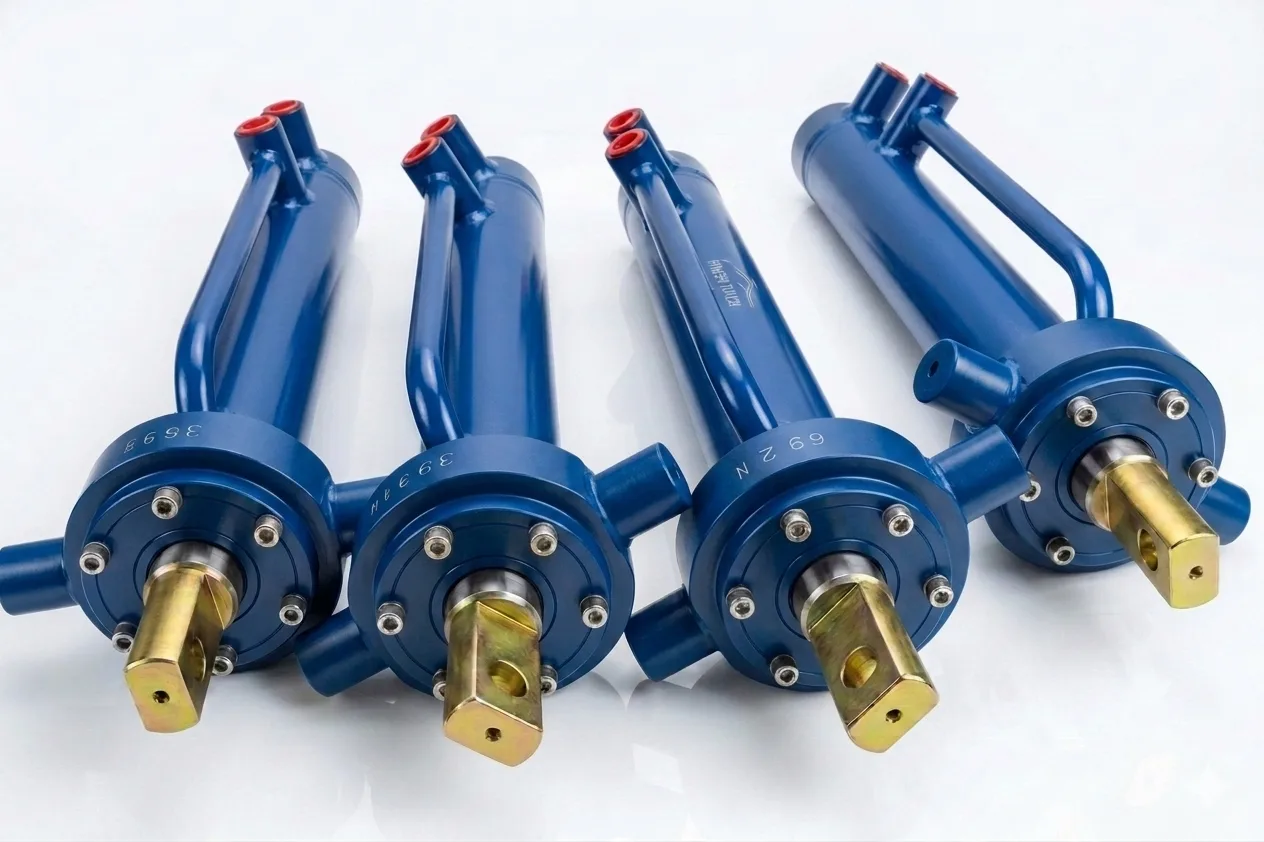

Trunnion Mounted Hydraulic Cylinders
Honeywell Hydraulics manufactures heavy-duty trunnion mounted hydraulic cylinders designed for severe industrial applications requiring rotary or pivoting motion. Engineered with centerline trunnion mounts, these cylinders distribute immense forces evenly, providing exceptional stability and extremely long operating life in steel plants, presses, and construction machinery.
Engineered for Perfect Centerline Force Distribution
In heavy industrial applications where machinery must pivot under extreme loads, standard end-mounting methods are often insufficient. Trunnion mounted hydraulic cylinders solve this by utilizing two heavy-duty pivot pins (trunnions) mounted directly to the cylinder barrel, either at the head, cap, or an intermediate position along the tube.
The defining advantage of a trunnion mount is that it aligns the pivot point directly on the cylinder's true centerline. This design eliminates eccentric loading and minimizes the destructive bending moments that cause rapid rod seal and bearing failure. When the cylinder extends or retracts, the entire body can rotate smoothly within the machine's mounting blocks, effortlessly absorbing the arc of the moving load.
At Honeywell Hydraulics, our trunnion cylinders are the backbone of massive industrial automation and material handling systems. We utilize ultra-high-strength forged trunnion blocks and precision machining to ensure absolute concentricity, delivering unmatched reliability for steel mills, hydraulic presses, and heavy mining equipment.
Core Advantages & Design Features
Our trunnion mounted cylinders are engineered to provide maximum stability and longevity in heavy-duty pivoting applications.
Centerline Load Transfer
Trunnion pins are mounted exactly on the cylinder's centerline, ensuring forces are transmitted directly along the cylinder axis.
Zero Eccentric Loading
By eliminating off-center forces, trunnion mounting drastically reduces rod bending and uneven seal wear.
Forged Trunnion Blocks
Manufactured with heavy-duty forged steel trunnions to withstand immense tensile and compressive shock loads.
Exceptional Stability
Intermediate (center) trunnion mounts provide the highest degree of column strength for very long stroke cylinders.
Precision Machining
Trunnion pins are precision machined to exacting tolerances to ensure perfect alignment with machinery mounting blocks.
OEM Customization
Fully customizable trunnion positions (head, cap, or intermediate) to suit specific machinery design requirements.
Technical Specifications
Our trunnion mounted cylinders are built using premium materials to endure the harsh realities of heavy industrial applications.
Trunnion Mounted Cylinder Specs
| Parameter | Value |
|---|---|
| Bore Diameter | 40 mm to 500 mm |
| Stroke Length | Up to 4000 mm (Customizable) |
| Working Pressure | Up to 350 Bar |
| Testing Pressure | 1.5x Working Pressure |
| Mounting Positions | Head Trunnion, Cap Trunnion, Intermediate Trunnion |
| Trunnion Pin Diameter | Custom engineered per load requirement |
| Tube Material | ST52 Seamless Honed Tube (H8 Tolerance) |
| Piston Rod | EN8 / C45 / EN19 (Hard Chrome Plated) |
| Seal Kits | Polyurethane & PTFE (Parker / Hallite) |
| Surface Finish | Anti-corrosive epoxy or polyurethane coating |
Available Trunnion Configurations
We manufacture various trunnion placement styles depending on the machinery's mounting geometry and stroke requirements.
Head (Rod End) Trunnion
Trunnion pins are located at the front (rod end) of the cylinder barrel. This configuration provides the greatest column strength, making it ideal for long-stroke pushing applications.
- Maximum column stability
- Ideal for pushing loads
- Reduced buckling risk
Cap (Blind End) Trunnion
Trunnion pins are located at the rear (blind end) of the cylinder. This allows the entire cylinder body to pivot freely and is commonly used when space at the front of the machine is limited.
- Full barrel pivoting
- Space-saving front profile
- Excellent for pulling loads
Intermediate Trunnion
Trunnion pins are welded or clamped at a specified position along the middle of the cylinder barrel. This provides a balance of stability and pivot range for specialized OEM machinery.
- Custom pivot balance
- Optimized weight distribution
- Versatile machinery integration
Trunnion vs. Clevis Mounted Cylinders
Understanding pivot dynamics is critical when designing machinery with limited space.
| Engineering Feature | Trunnion Mounted | Clevis Mounted |
|---|---|---|
| Pivot Location | Center, Front, or Rear | Strictly at the Ends |
| Buckling Resistance | Excellent (Intermediate trunnions cut column length in half) | Poor (Prone to buckling on very long strokes) |
| Space Efficiency | High (Can fit into tight front/rear spaces) | Low (Requires full end clearance) |
| Load Capacity | Ultra-Heavy (Forging presses, steel mills) | Heavy (Excavators, mobile equipment) |
Applications & Industries
Trunnion mounted cylinders are essential for heavy industrial machinery that requires powerful articulated movement.
Steel Plants & Mills
Actuation for furnace doors, ladle tilters, and heavy continuous casting equipment.
Hydraulic Presses
Tilting mechanisms and specialized pressing automation requiring precise alignment.
Material Handling
Heavy-duty rotary tippers, industrial dumpers, and bulk material unloaders.
Construction Machinery
High-load articulation for massive mining shovels and specialized earthmoving equipment.
How to Choose the Right Trunnion Cylinder
ATrunnion Position (Front vs Intermediate)
For extreme long-stroke applications, placing an intermediate trunnion near the middle of the barrel effectively halves the column length, massively increasing the buckling strength.
BPin Sizing & Bearing Blocks
Trunnion pins act as the sole load-bearing axis. We calculate pin diameter based on the maximum dynamic shear force. Mating pillow blocks must be heavily lubricated or utilize self-lubricating bronze.
CMachinery Clearance
Unlike clevis mounts, trunnions require radial clearance around the cylinder barrel to allow the pins and pillow blocks to pivot freely without striking the machine chassis.
Honeywell Manufacturing Excellence
Our advanced manufacturing facility in Ahmedabad guarantees that every trunnion cylinder is built to endure brutal industrial environments. We focus heavily on trunnion block integrity and concentricity.
Solid Forged Trunnion Blocks
To withstand the immense shear forces of steel mills and presses, our trunnion blocks are CNC-machined from solid high-carbon forged steel, entirely eliminating the porosity risks of cast mounts.
Micron-Level Concentricity
The trunnion pins are turned on large-swing CNC lathes to ensure they are perfectly concentric with the cylinder bore axis, guaranteeing zero binding during heavy articulation.
Sub-Arc Barrel Fusion
Intermediate and front trunnion blocks are permanently fused to the heavy-wall ST52 barrel using multi-pass automated sub-arc welding, creating an unyielding monolithic structure.
Ultrasonic Weld Inspection
Before dispatch, all trunnion welds undergo rigorous Non-Destructive Testing (NDT) via ultrasonic scanning to detect any microscopic sub-surface flaws, followed by 1.5x hydrostatic testing.
Need Custom Trunnion Cylinders for Your Plant?
Our engineers can design and manufacture cylinders based on your specific trunnion placement, pin diameter, and stroke length requirements.
Upgrading Ladle Tilting Cylinders for a Major Steel Mill
Heavy Industrial Plant — Gujarat, India
The Challenge
The Engineering
The Outcome
