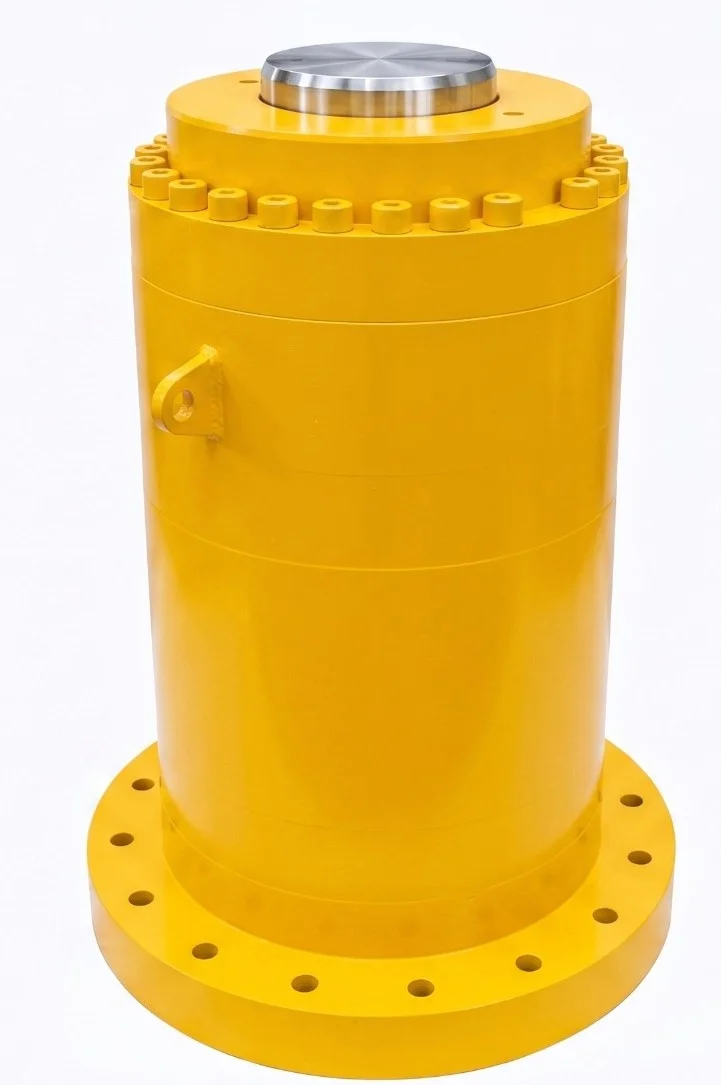

Why Correct Hydraulic Cylinder Sizing Matters
Selecting the wrong hydraulic cylinder size is one of the most costly mistakes in fluid power system design. An undersized cylinder cannot generate the required force, leading to machine stalls, incomplete press strokes, or catastrophic seal blowout under excessive internal pressure. An oversized cylinder wastes energy, requires a larger and more expensive power pack, and introduces sluggish response due to excess oil volume.
Correct sizing ensures that the cylinder delivers exactly the force needed at the rated working pressure, with an appropriate safety margin. This guide walks through the fundamental calculations used by Honeywell Hydraulics engineers when designing custom cylinders for industrial applications — from injection moulding clamps to 500-tonne forging presses.
The Fundamental Force Formula: F = P × A
Every hydraulic cylinder sizing calculation starts with one equation — the relationship between force, pressure, and piston area:
Where:
- F = Force output (in Newtons or kN)
- P = System working pressure (in Bar or MPa). 1 Bar = 0.1 MPa
- A = Effective piston area (in cm²)
For a push stroke (extension), A is the full bore area. For a pull stroke (retraction), A is the bore area minus the rod cross-section area — called the annulus area.
Step 1: Calculate the Required Bore Diameter
If you know the required force and the available system pressure, you can calculate the minimum bore diameter:
This is derived by rearranging F = P × A and solving for bore diameter D.
Example: You need 50 tonnes (490 kN) of clamping force, and your hydraulic power pack operates at 200 Bar.
- Convert force to Newtons: 490 kN = 490,000 N
- Convert pressure: 200 Bar = 20 MPa = 20 N/mm²
- Required area: A = F / P = 490,000 / 20 = 24,500 mm²
- Bore diameter: D = √(4A / π) = √(4 × 24,500 / π) = 176.6 mm
- Select the next standard bore size: 180 mm (per DIN 24554 / ISO 3320)
Standard Bore Sizes (ISO 3320 / DIN 24554)
Hydraulic cylinder bores are manufactured in standardized increments per ISO 3320. Selecting a standard bore reduces manufacturing cost and ensures interchangeable seal availability.
| Standard Bore (mm) | Push Force at 160 Bar (kN) | Push Force at 200 Bar (kN) | Push Force at 250 Bar (kN) |
|---|---|---|---|
| 40 | 20.1 | 25.1 | 31.4 |
| 50 | 31.4 | 39.3 | 49.1 |
| 63 | 49.8 | 62.3 | 77.9 |
| 80 | 80.4 | 100.5 | 125.7 |
| 100 | 125.7 | 157.1 | 196.3 |
| 125 | 196.3 | 245.4 | 306.8 |
| 160 | 321.7 | 402.1 | 502.7 |
| 200 | 502.7 | 628.3 | 785.4 |
| 250 | 785.4 | 981.7 | 1,227.2 |
| 320 | 1,286.8 | 1,608.5 | 2,010.6 |
| 400 | 2,010.6 | 2,513.3 | 3,141.6 |
| 500 | 3,141.6 | 3,926.9 | 4,908.7 |
Honeywell Hydraulics manufactures cylinders from 40 mm to 500 mm bore, covering the full ISO range listed above.
Step 2: Select the Rod Diameter
The piston rod must resist both the tensile/compressive loads during operation and the buckling loads when the cylinder is extended under compression. The rod-to-bore ratio depends on the application:
| Application Type | Typical Rod:Bore Ratio | Example (100mm bore) |
|---|---|---|
| Short stroke, low side-load | 0.5 | 50 mm rod |
| General industrial | 0.6 – 0.7 | 63 – 70 mm rod |
| Long stroke, high side-load | 0.7 – 0.8 | 70 – 80 mm rod |
| Heavy press, high buckling risk | 0.8+ | 80+ mm rod |
For long-stroke applications where the cylinder must push under compression, perform a separate Euler buckling check per ISO 6022 Annex A to verify the rod will not buckle under the applied load.
Step 3: Determine the Required Stroke Length
Stroke is the distance the piston rod travels from fully retracted to fully extended. It is determined entirely by the machine's mechanical travel requirement — not by the hydraulic system itself.
Key considerations when specifying stroke length:
- Mechanical travel: Measure the actual distance your tooling, press platen, or actuator arm must travel.
- Cushioning allowance: If using internal cushioning (as per ISO 6020-2), add 15–25 mm to the stroke for deceleration at end-of-travel.
- Mounting geometry: For clevis or trunnion-mounted cylinders, account for the angular arc — the rod linear travel is less than the arc distance.
- Oil volume: Longer strokes require more oil per cycle, which directly impacts cycle time and power pack sizing.
Honeywell Hydraulics manufactures cylinders with strokes up to 6,000 mm for applications such as telescopic boom lifts, ship-breaking shear blades, and long-travel press platens.
Step 4: Calculate Oil Flow for Target Speed
Once the bore and stroke are determined, you need to ensure the hydraulic power pack can supply enough oil flow to move the cylinder at the desired speed:
Where:
- Q = Required oil flow (litres per minute, LPM)
- A = Piston area (cm²)
- v = Target rod speed (cm/second)
Example: A 125 mm bore cylinder needs to extend at 10 cm/s (a moderate press approach speed).
- Piston area: A = π/4 × 12.5² = 122.72 cm²
- Flow: Q = 122.72 × 10 / 16.67 = 73.6 LPM
- Select a power pack with ≥ 75 LPM pump output.
Step 5: Seal Material Selection
Seal selection is critical for cylinder longevity and leak-free operation. The correct material depends on the operating environment:
| Seal Material | Temperature Range | Pressure Rating | Best For |
|---|---|---|---|
| Nitrile (NBR) | −30°C to +100°C | Up to 350 Bar | General mineral oil systems, most industrial use |
| Polyurethane (PU) | −35°C to +80°C | Up to 400 Bar | High wear resistance, dynamic seals, long-life cylinders |
| Viton (FKM) | −20°C to +200°C | Up to 400 Bar | High-temperature applications, aggressive fluids |
| PTFE + Bronze | −60°C to +260°C | Up to 700 Bar | Extreme pressure/temperature, food-grade, clean rooms |
All Honeywell Hydraulics cylinders use Parker or Hallite OEM seals with pre-engineered groove geometries compliant with ISO 7425-1.
How Mounting Style Affects Sizing
The choice of cylinder mounting directly impacts side-load calculations and rod buckling limits:
- Flange-mounted (ISO 6022): Best for pure axial thrust. No side-load compensation needed. Ideal for vertical presses and die clamping.
- Clevis-mounted: Allows angular pivot. Must account for the angular force component — effective axial force reduces as the angle increases.
- Trunnion-mounted: Allows full pivot. The trunnion bearing position (head, cap, or intermediate) changes the moment arm and buckling length.
- Foot/Lug-mounted: Fixed to a baseplate. Side-loads from misalignment must be managed with rod-end spherical bearings.
Honeywell Hydraulics engineers will evaluate your mounting conditions during the design consultation to ensure the correct configuration and safety factor.
Complete Sizing Checklist
Before requesting a quote for a custom hydraulic cylinder, gather the following parameters:
- ☐ Required push force (kN or tonnes)
- ☐ Required pull force, if any (kN or tonnes)
- ☐ System working pressure (Bar)
- ☐ Stroke length (mm)
- ☐ Target extension speed (mm/s or cm/s)
- ☐ Mounting style (flange, clevis, trunnion, foot, lug)
- ☐ Operating temperature range
- ☐ Hydraulic fluid type (mineral oil, HLP, HFC, synthetic)
- ☐ Duty cycle (cycles per hour, hours per day)
- ☐ Environmental conditions (outdoor, wash-down, corrosive, high-temperature)
Submit these parameters with your Request for Quote, and our engineering team will design a cylinder with the optimal bore, rod, seal package, and surface finish for your application.
