Systematic Troubleshooting: Isolating the Cylinder vs Circuit Valves
When an industrial hydraulic cylinder drifts under load, moves sluggishly, or fails to develop rated clamping force, technicians frequently pull the cylinder from the machine and send it for re-sealing without confirming whether the fault actually originates inside the barrel.
In over 60% of field failure investigations conducted by Honeywell Hydraulics service engineers, the cylinder itself is completely sound. The actual culprit is frequently a weeping directional spool valve, an unseated counterbalance cartridge, or thermal contraction of trapped hydraulic fluid.
Before unbolting the cylinder from the machine platen or clevis mount, execution of a systematic port isolation test is mandatory to pinpoint the root cause with zero guesswork.
Diagnosing Cylinder Drift: The Physics of Piston Seal Bypass
Cylinder drift occurs when an actuator slowly creeps from its commanded holding position under an external gravity or mechanical load. Understanding the physics of a double-acting, single-rod cylinder reveals why a leaking piston seal behaves differently depending on load direction:
Because the piston rod occupies volume inside the retraction chamber, a single-rod cylinder has unequal working areas: full bore area ($A_1$) on the cap end and annulus area ($A_2$) on the rod end.
- Compressive Load (Pushing Down on Rod): If the piston seal fails, fluid transfers from the cap end to the rod end. However, because the rod end volume is smaller than the cap end volume, fluid cannot expand into the rod end unless fluid escapes the circuit through a leaking valve.
- Tensile Load (Pulling Out on Rod): If an external force tries to pull the rod out with both ports blocked, fluid from the rod end attempts to bypass into the larger cap end. Because the cap end cannot fill without cavitation or fluid supply, the cylinder hydraulically locks unless the rod end control valve leaks.
Conclusion: A cylinder cannot continuously drift with both ports securely plugged unless fluid is either leaking externally or escaping through an open or worn circuit valve.

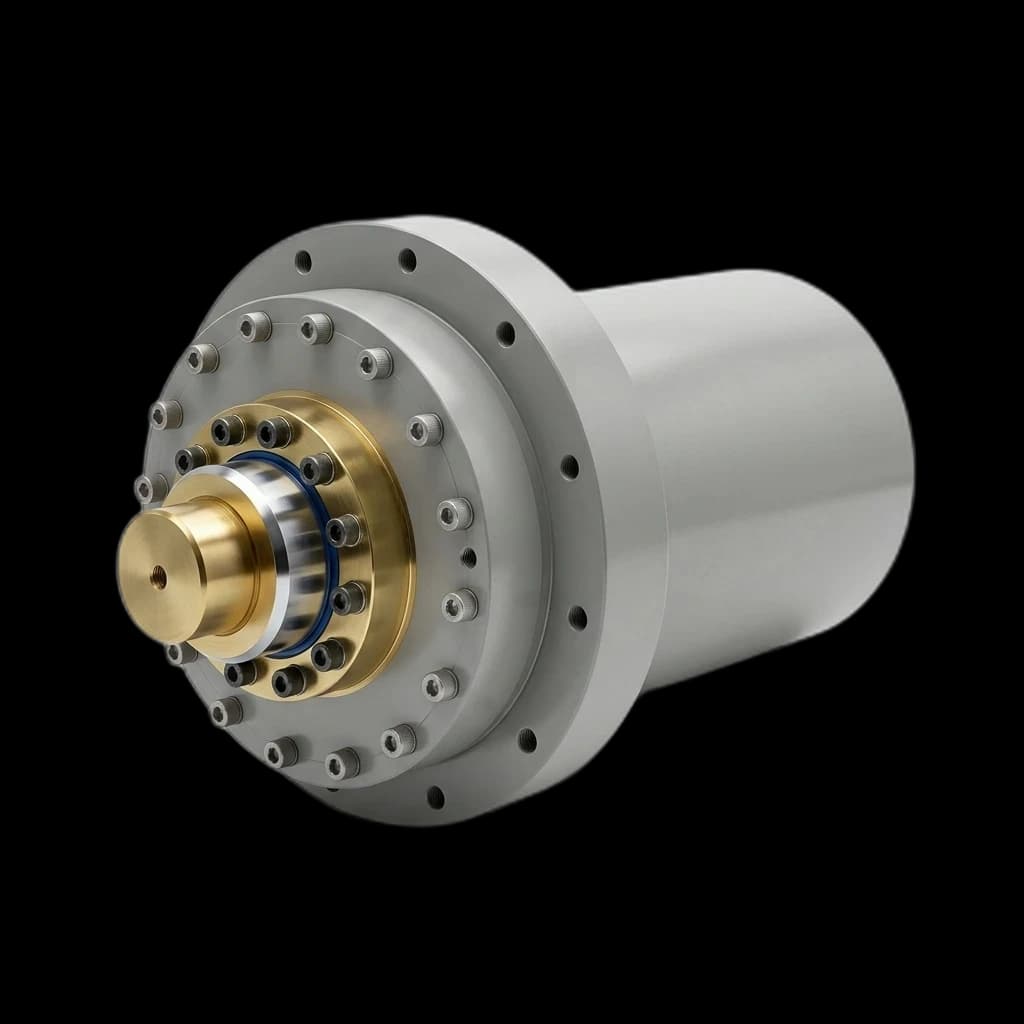

External Rod Gland Leakage: Causes & Failure Modes
External oil weeping along the chrome piston rod is the most visible sign of cylinder distress. Left uncorrected, rod leakage contaminates the machine environment, introduces fire hazards, and draws abrasive ambient dust past the wiper seal.
Common failure modes identified during teardown include:
- Abrasive Dust Ingestion: A damaged or hardened polyurethane wiper seal allows sand, scale, or abrasive machining chips to pass into the gland, cutting microscopic channels in the secondary U-cup rod seal.
- Excessive Side-Loading (Radial Force): If machine guide rails are misaligned, mechanical side loads force the rod against one side of the gland bushing. This causes asymmetric seal compression, egg-shaped bush wear, and localized oil leakage.
- Thermal Hardening: Continuous fluid operating temperatures above 80°C cause standard Nitrile (NBR) seals to vulcanize, become brittle, and crack. High-heat applications require Fluorocarbon (Viton / FKM) seal compounds.
- Pressure Spikes & Micro-Dieseling: Trapped air bubbles in the oil combust under rapid high-pressure compression (micro-dieseling), scorching and charring the back of the rod seal.
Comprehensive Cylinder Troubleshooting Matrix
Use the diagnostic matrix below to quickly identify symptoms, probable root causes, and recommended corrective engineering actions:
| Observed Symptom | Probable Root Cause | Recommended Corrective Action |
|---|---|---|
| Cylinder drifts down under static load | Counterbalance valve unseated or worn piston seals | Perform port plug isolation test. Replace valve cartridge or hone tube and re-seal. |
| Oil leaking around piston rod | Worn rod seal, scored rod, or misaligned side-load | Inspect chrome rod for scratches. Check alignment. Install new rod seal package and wiper. |
| Jerky, stuttering movement (stick-slip) | Air trapped in cylinder or excessive seal friction | Bleed air via cylinder bleed plugs. Check hydraulic oil level. Check rod alignment. |
| Cylinder stalls under rated load | System relief valve set too low or pump flow worn | Verify pressure at cylinder port with test gauge. Check power pack relief setting. |
| Piston rod bent or deformed | Column buckling from stroke overload or side shock | Recalculate Euler buckling load per ISO 6022. Upsize rod diameter or add stop tube. |
| Excessive clunk at end of stroke | Cushioning spear damaged or needle valve wide open | Adjust cylinder cushion needle valve. Check cushion seal and plunger for binding. |
| Milky, foaming hydraulic oil in system | Water contamination or suction line aeration | Check reservoir fluid. Replace oil. Repair pump suction line leak and desiccant breather. |
Rod Chrome Flaking & Barrel Scoring Diagnosis
Hard chrome plating on high-tensile EN8/EN9 or 42CrMo4 steel rods provides corrosion resistance and a micro-smooth surface (Ra < 0.2 µm) for dynamic rod seals. If the chrome shows pitting, flaking, or longitudinal score lines:
- Scratch Depth Assessment: Run a fingernail across the scratch. If your fingernail catches, the groove is deeper than 5 microns and will chew through replacement polyurethane rod seals in days. The rod must be ground undersize and re-hard-chromed, or replaced.
- Honed Tube Inspection: Inspect the internal cylinder barrel with a borescope. Scoring inside the honed tube (Ra < 0.4 µm) indicates metal-to-metal contact between the piston guide band and tube wall, usually precipitated by fine particulate contamination in the fluid.
- Stop Tube Necessity: For cylinders with stroke lengths exceeding 1,000 mm, internal stop tubes should be fitted to increase the distance between the rod bearing and piston, reducing cantilever bearing stress when fully extended.
Preventive Maintenance: Fluid Cleanliness per ISO 4406
Over 75% of all hydraulic component failures are directly attributable to particulate and water contamination in the fluid. Microscopic particles (4, 6, and 14 microns) circulate under pressure, acting as liquid sandpaper across seal lips and honed surfaces.
To maximize cylinder service life, Honeywell Hydraulics recommends maintaining the following preventive maintenance schedule:
- Target Fluid Cleanliness: Maintain oil cleanliness at ISO 4406 code 18/16/13 or cleaner for proportional systems.
- Filtration Rating: Install pressure or return filters with a minimum rating of β10(c) ≥ 200 (10-micron absolute).
- Reservoir Air Breather: Replace standard filler caps with 3-micron spin-on desiccant air breathers to prevent ambient factory dust ingress.
- Annual Oil Analysis: Test fluid annually for kinematic viscosity at 40°C, Total Acid Number (TAN), and water content (keep below 200 ppm).
